Product Description:

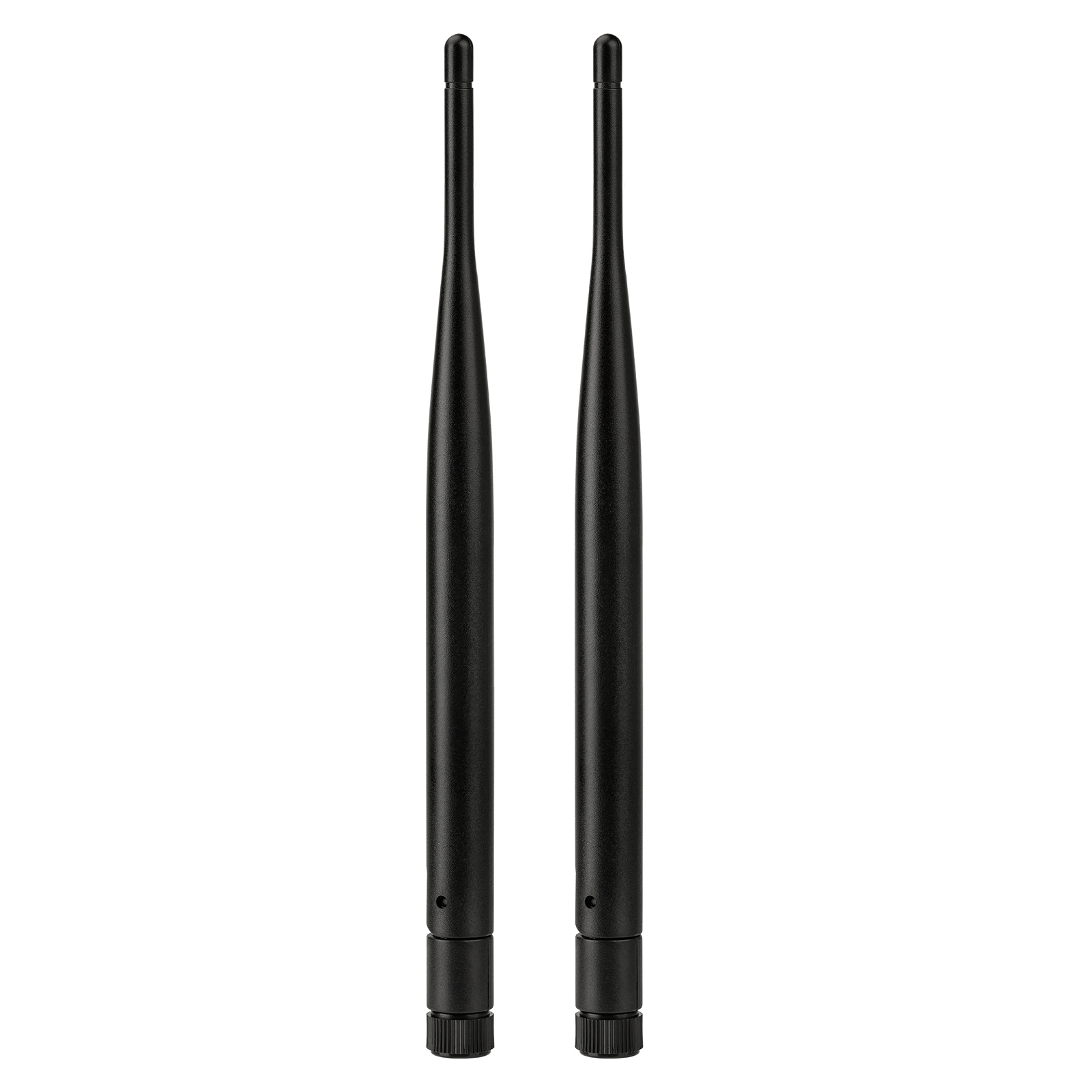

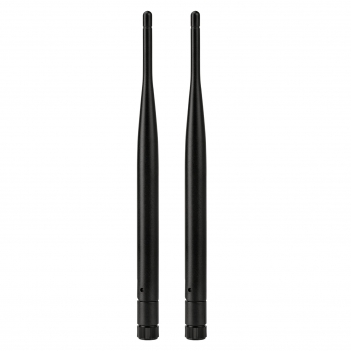

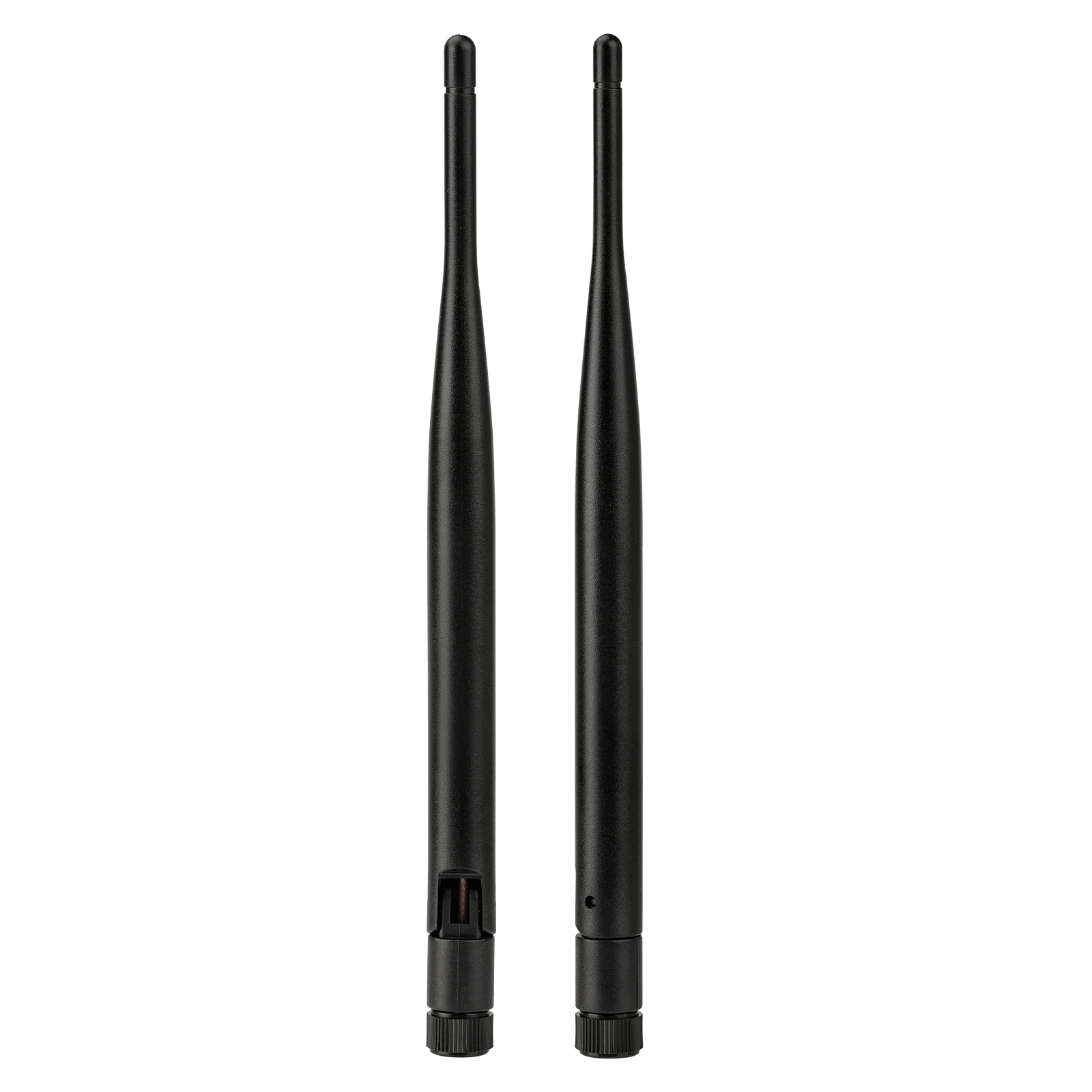

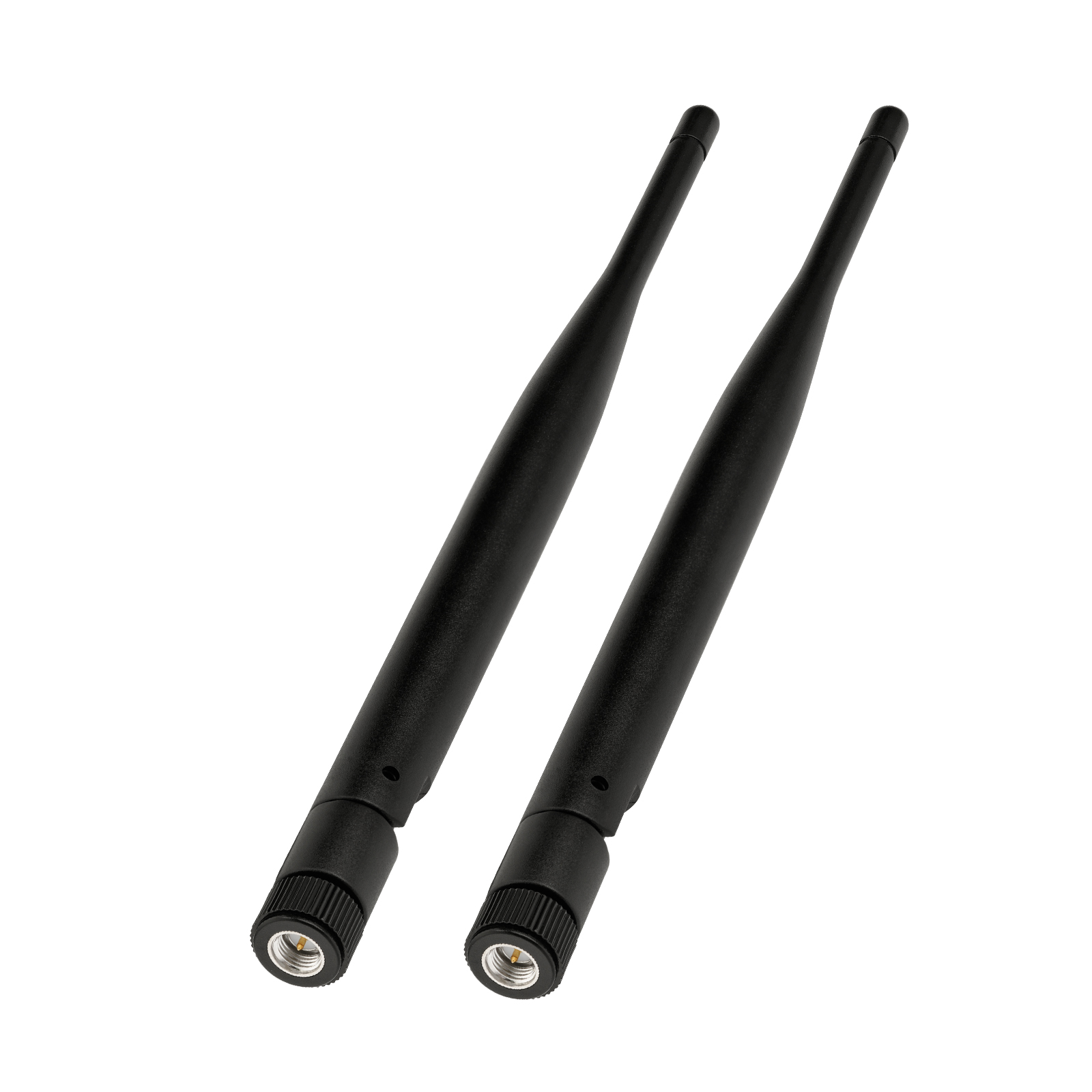

This 2-pack 4G LTE rubber duck antenna covers dual frequency bands of 824-960MHz and 1710-2700MHz with 2dB gain and 50 Ohm impedance. Each antenna features an SMA male connector, 195mm TPEE/ABS housing, and 10W power handling, designed for 4G routers, gateways, modems, and IoT devices with SMA female antenna ports.

Specifications

Antenna Type: 4G LTE rubber duck antenna

Frequency Range: 824-960MHz / 1710-2700MHz

Bandwidth: 136MHz / 990MHz

Gain: 2dB

V.S.W.R: ≤2.5

Impedance: 50 Ohm

Polarization: Linear

Radiation Pattern: Omnidirectional

Maximum Power: 10W

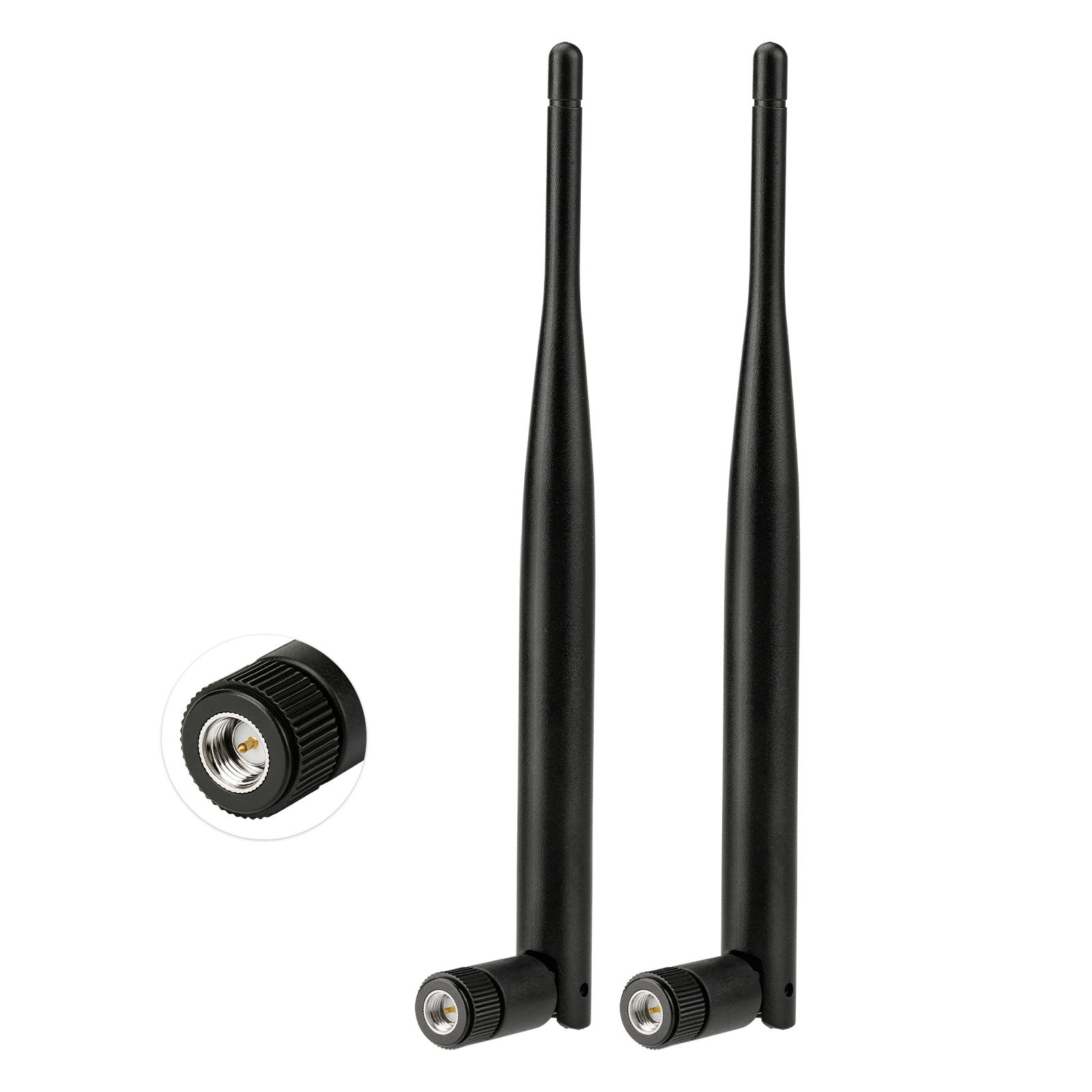

Connector: SMA Male

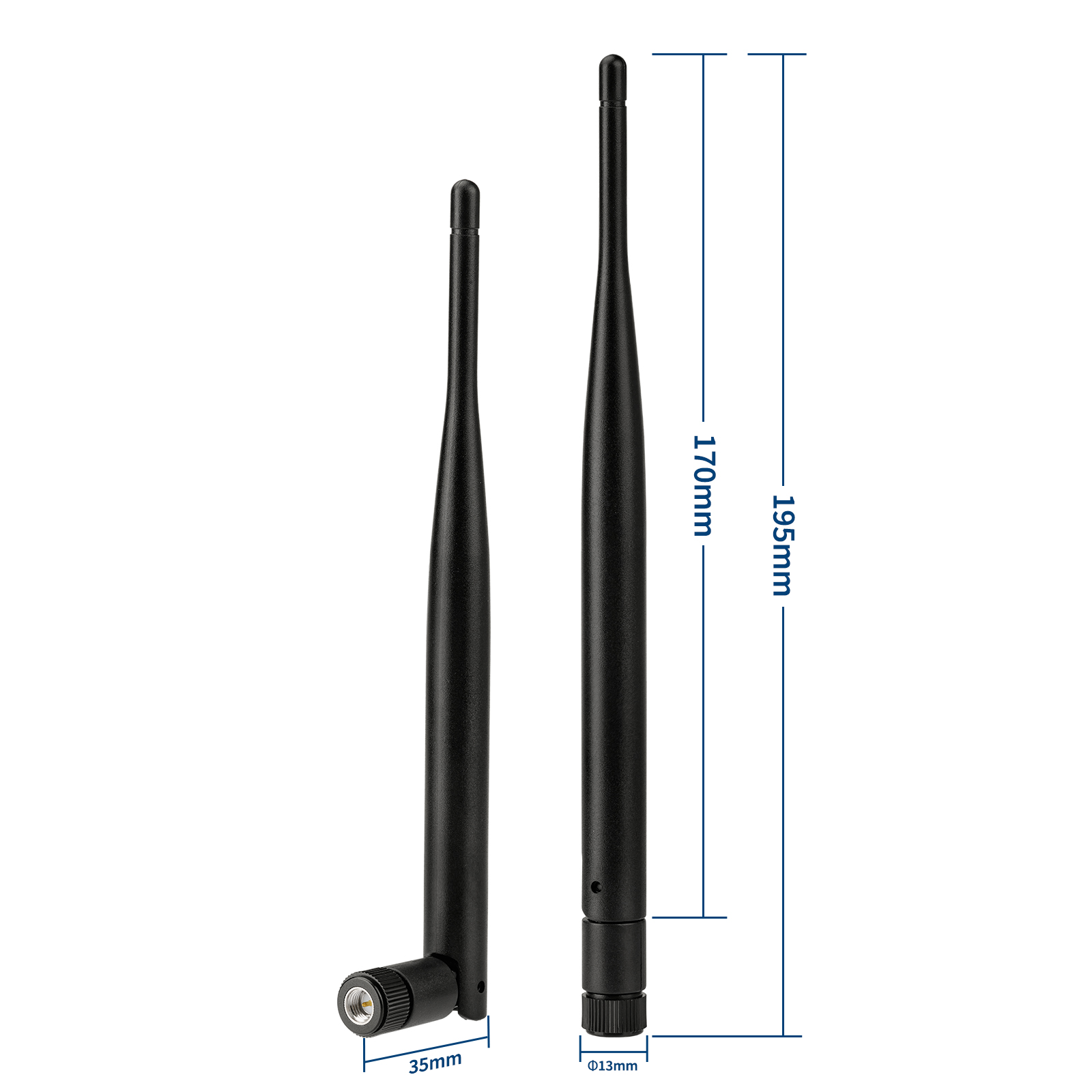

Dimensions: 195 × Ø13mm (total length 195±1mm)

Housing Material: TPEE / ABS

Working Temperature: -40°C to +85°C

Lightning Protection: DC grounding

RoHS Compliant: Yes

Quantity: 2 antennas per pack

Product Features

Dual-band 824-2700MHz coverage for mainstream 4G LTE networks

SMA male connector for broad router and modem compatibility

195mm rubber duck design with TPEE/ABS housing for durability

2dB gain with omnidirectional pattern for 360-degree coverage

10W power handling with DC grounding for TX and RX operations

Wide -40°C to +85°C operating range for indoor and outdoor use

2-pack value set for multi-device or spare antenna deployment

Applications

4G LTE routers, modems, and gateways

IoT terminals and M2M communication devices

Industrial communication equipment

Asset tracking and remote monitoring systems

4G signal reception enhancement in weak coverage areas

Replacement antennas for 4G devices with SMA female ports

Package Contents

2x 4G LTE Rubber Duck Antenna (SMA Male, 195mm)
