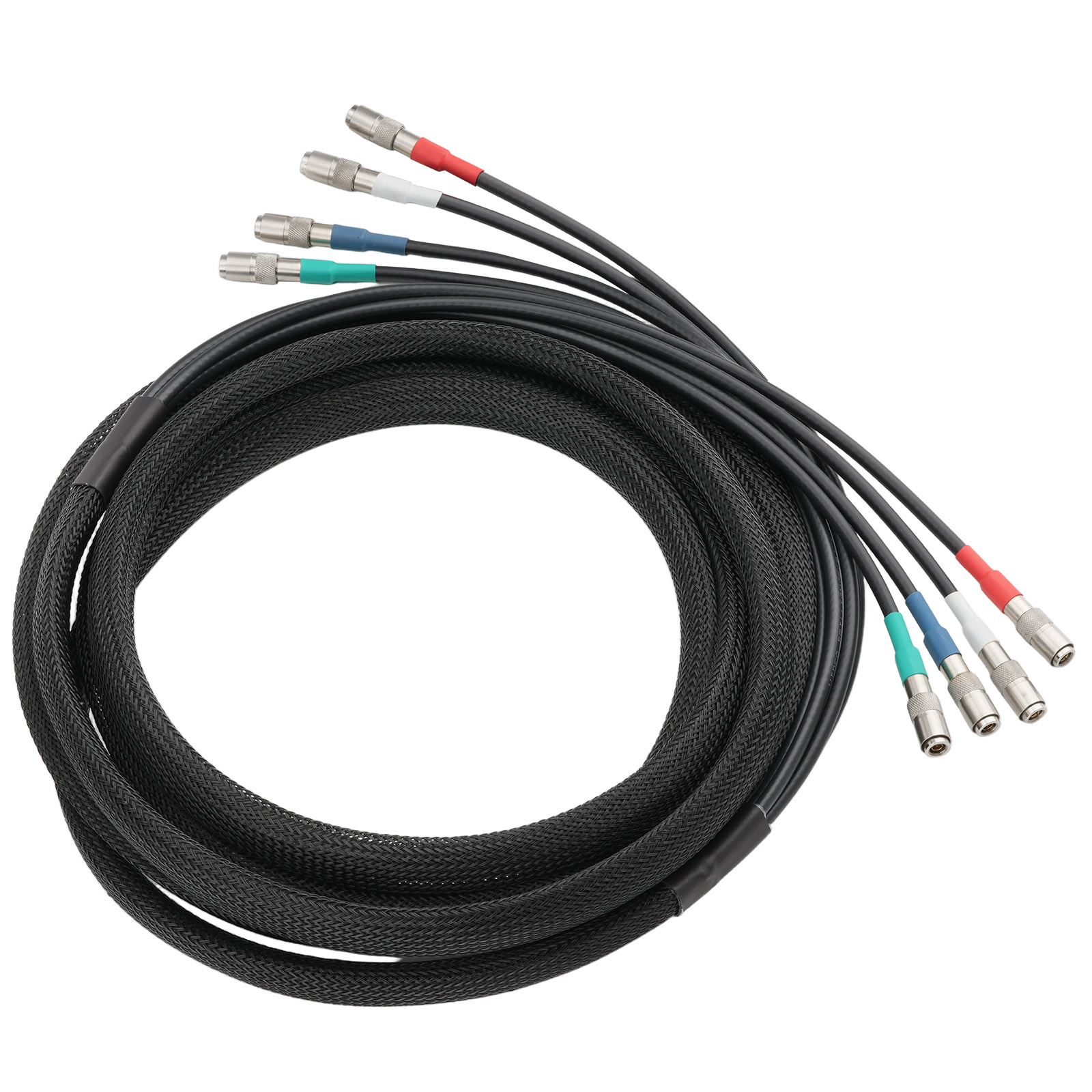

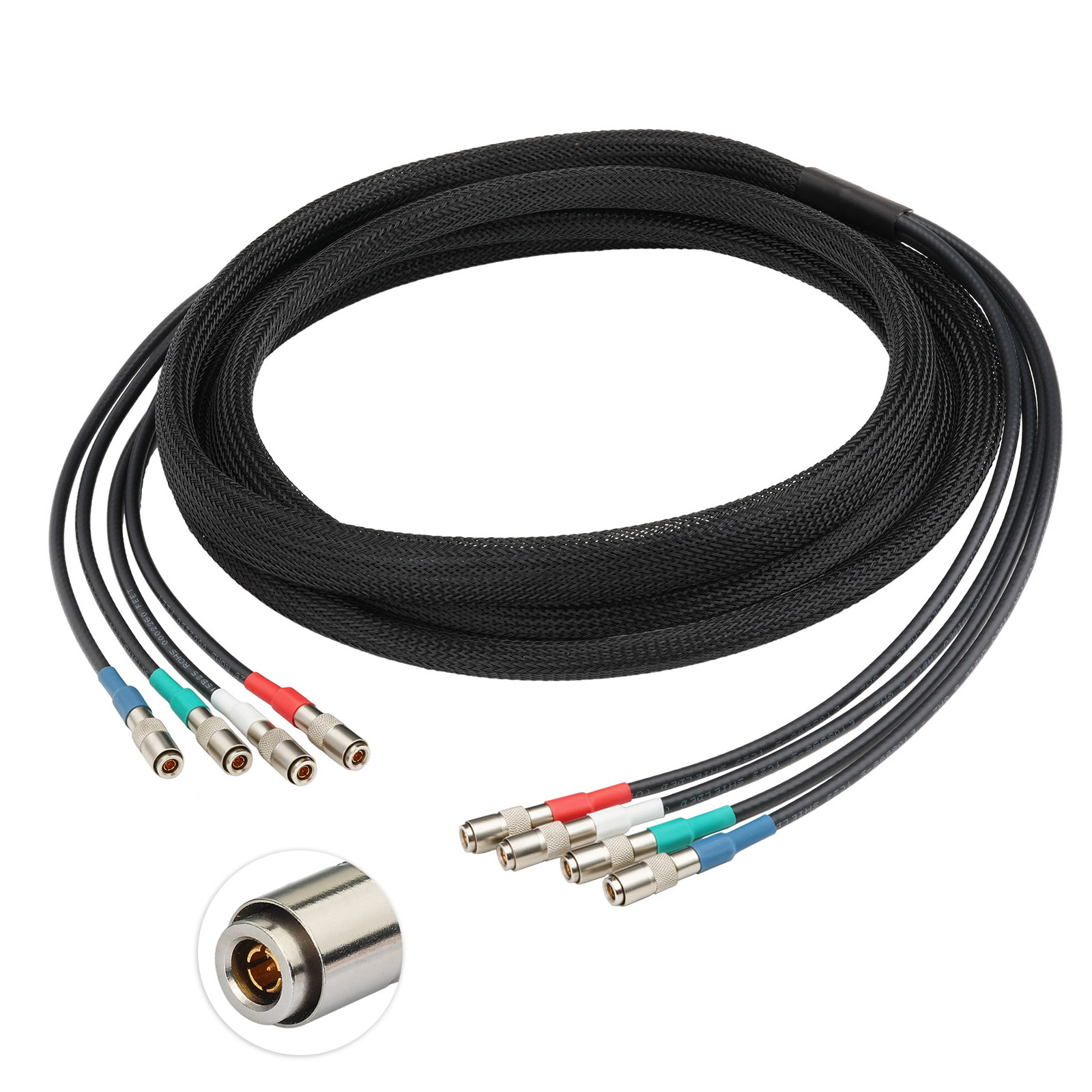

4-in-1 bundled 1855A coaxial cable, equipped with DIN 1.0/2.3 male connectors on both ends, total length 30 feet, compatible with CoaXPress CXP-6 and 6G SDI digital video signal transmission

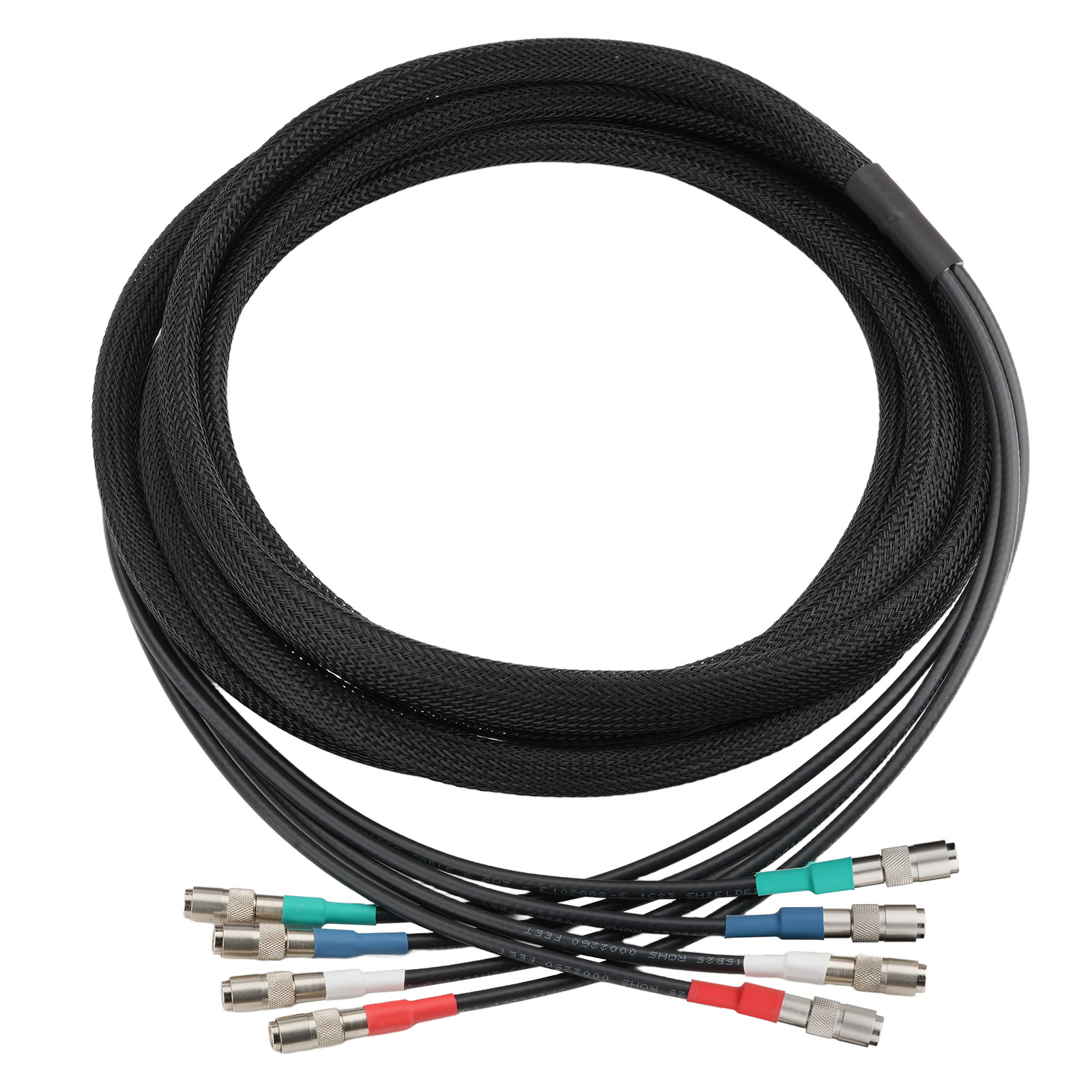

The main cable assembly is wrapped in an all-black braided protective sleeve, with 20 cm of unsheathed lead wire left at each end for flexible routing within tight industrial equipment enclosures

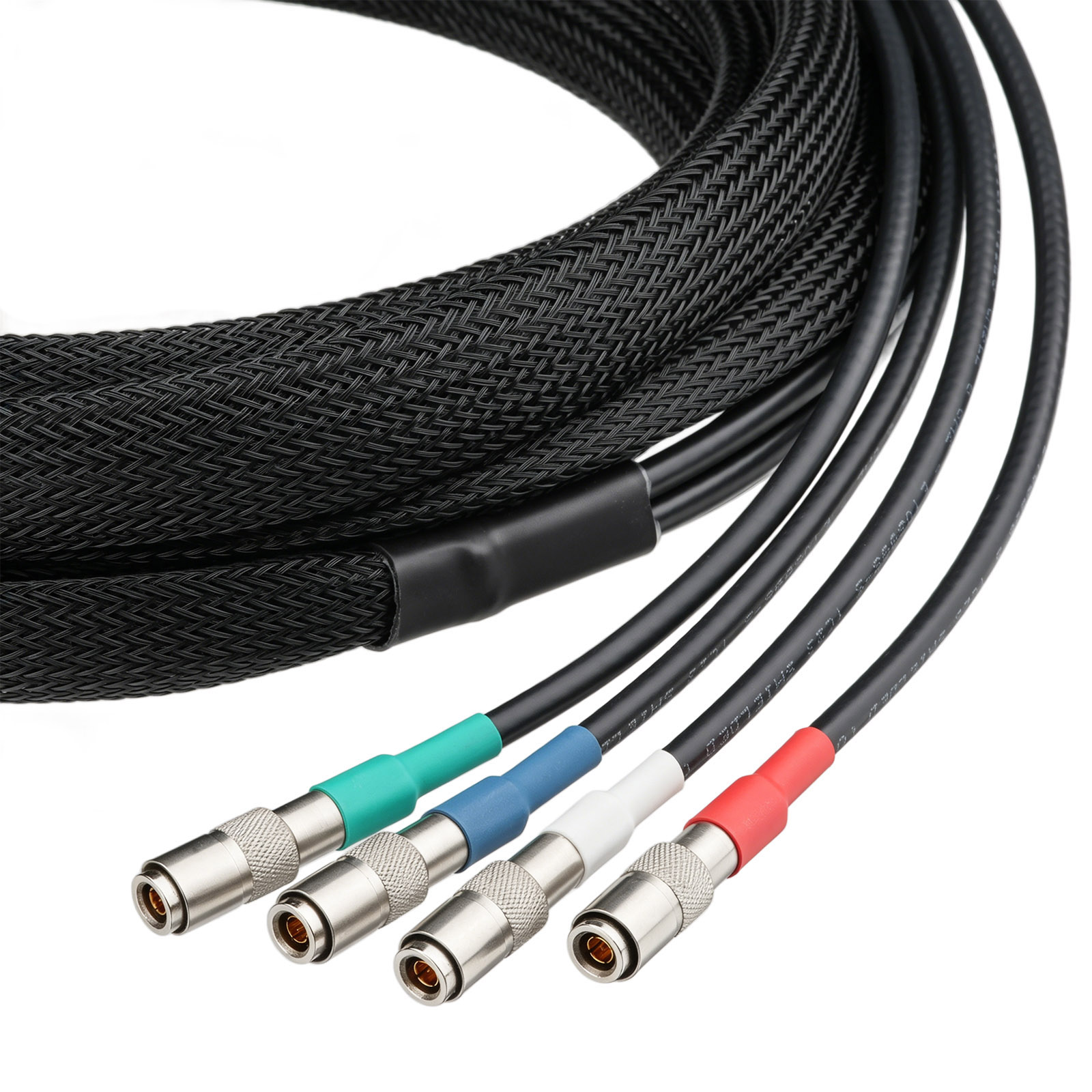

Equipped with separate red, white, blue, and green heat-shrink tubing corresponding to the four conductors, facilitating quick channel identification and simplifying on-site wiring inspections and routine equipment maintenance

Utilizes high-quality Belden 1855A 75-ohm low-loss coaxial cable with a high-density shield and twisted copper core, effectively reducing signal attenuation and ensuring data integrity for high-frequency 6G SDI and CXP signal transmission

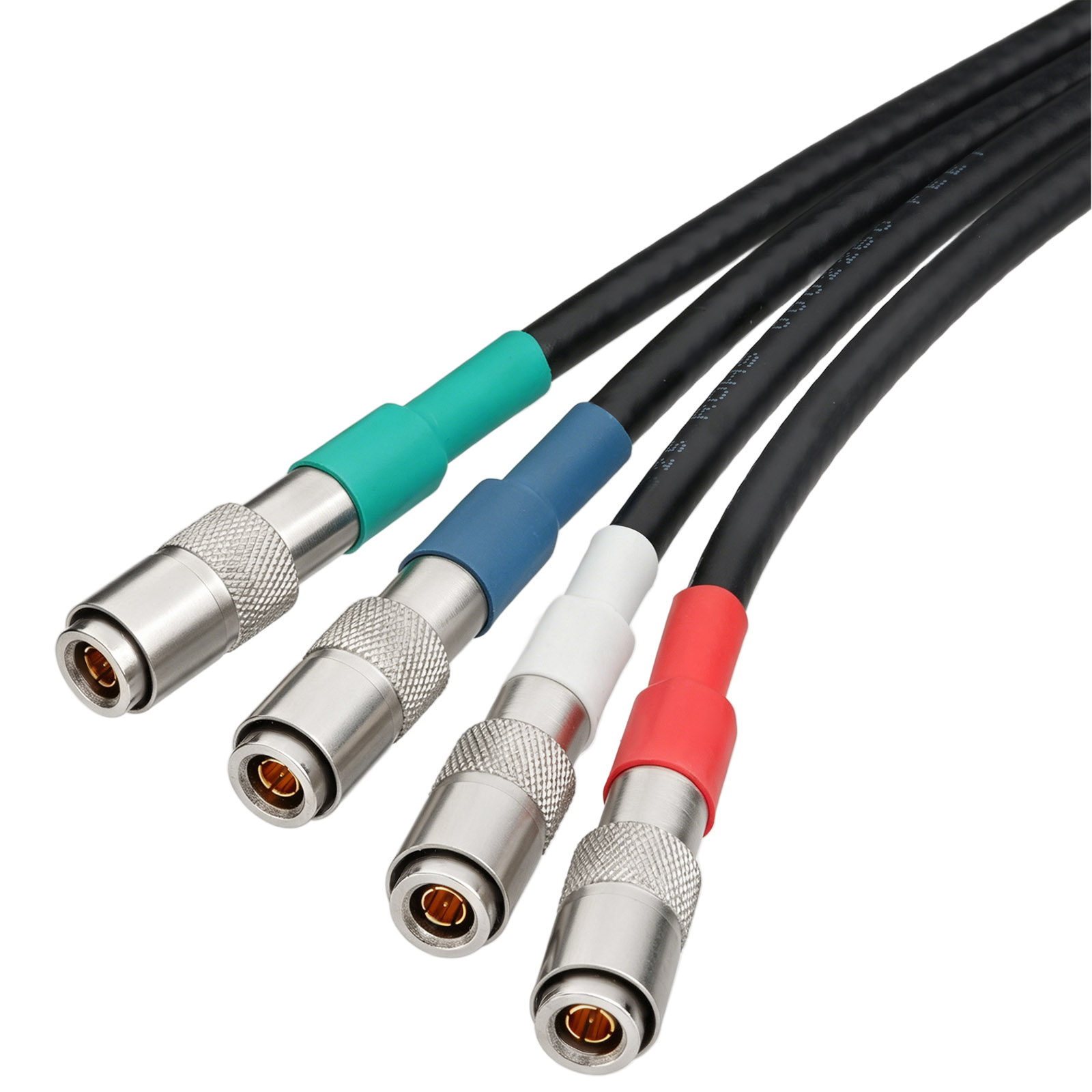

Precision DIN 1.0/2.3 male connectors provide a stable, vibration-resistant locking connection, making them ideal for installation in machine vision cameras, frame grabber cards, broadcast equipment, and industrial inspection systems

Specifications:

Connector Type: DIN 1.0/2.3 to DIN 1.0/2.3

Gender: Male to Male

Wire Gauge: 23AWG High Flex Drag

Cable Length: 30FT/915CM

Cable Type: Belden 1855A

Impedance (Ohms): 75

OD: 4.2MM

Compatible with CoaXPress CXP-6 6G SDI
