This 4-channel HD BNC cable is compatible with the CoaXPress CXP-6 standard and 6G SDI standard. It works seamlessly with AVT industrial cameras, transmitting image data, control signals, and communication signals simultaneously over a single coaxial cable to meet the deployment requirements of machine vision systems

Manufactured using high-quality Belden 1855A 75-ohm low-loss coaxial cable, featuring twisted copper conductors and a tightly braided shield, it ensures excellent signal integrity, ultra-low latency, and lossless high-resolution, high-speed data transmission over a full 30-foot length

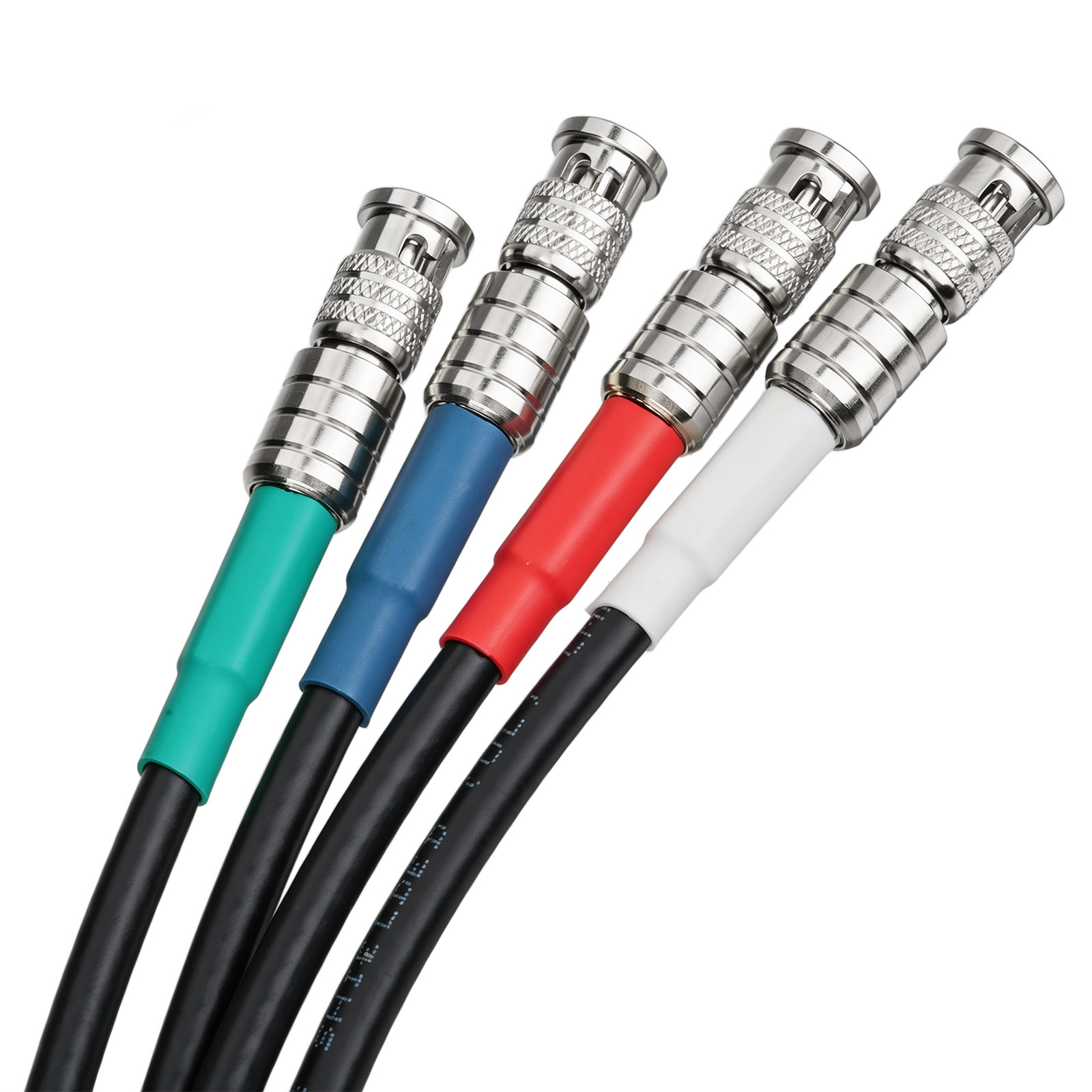

Both ends of the cable are equipped with precision HD-BNC male connectors. These vibration-resistant locking connectors form a tight, stable connection, preventing intermittent signal loss in harsh factory automation and industrial operating environments.

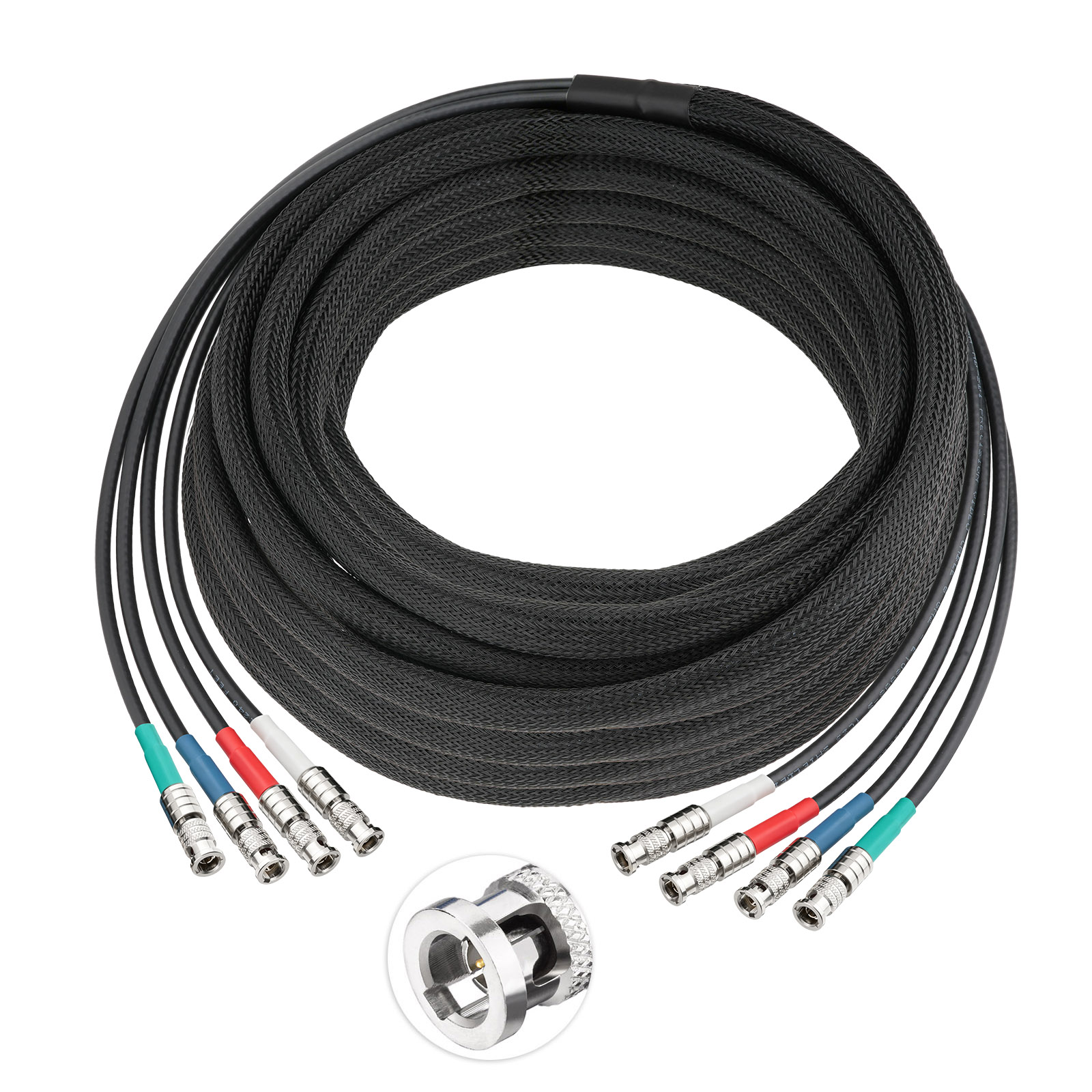

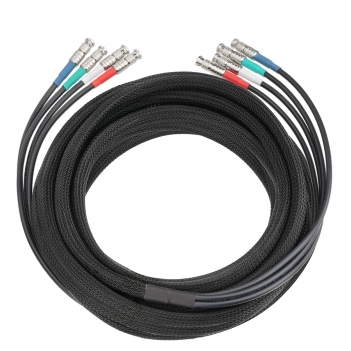

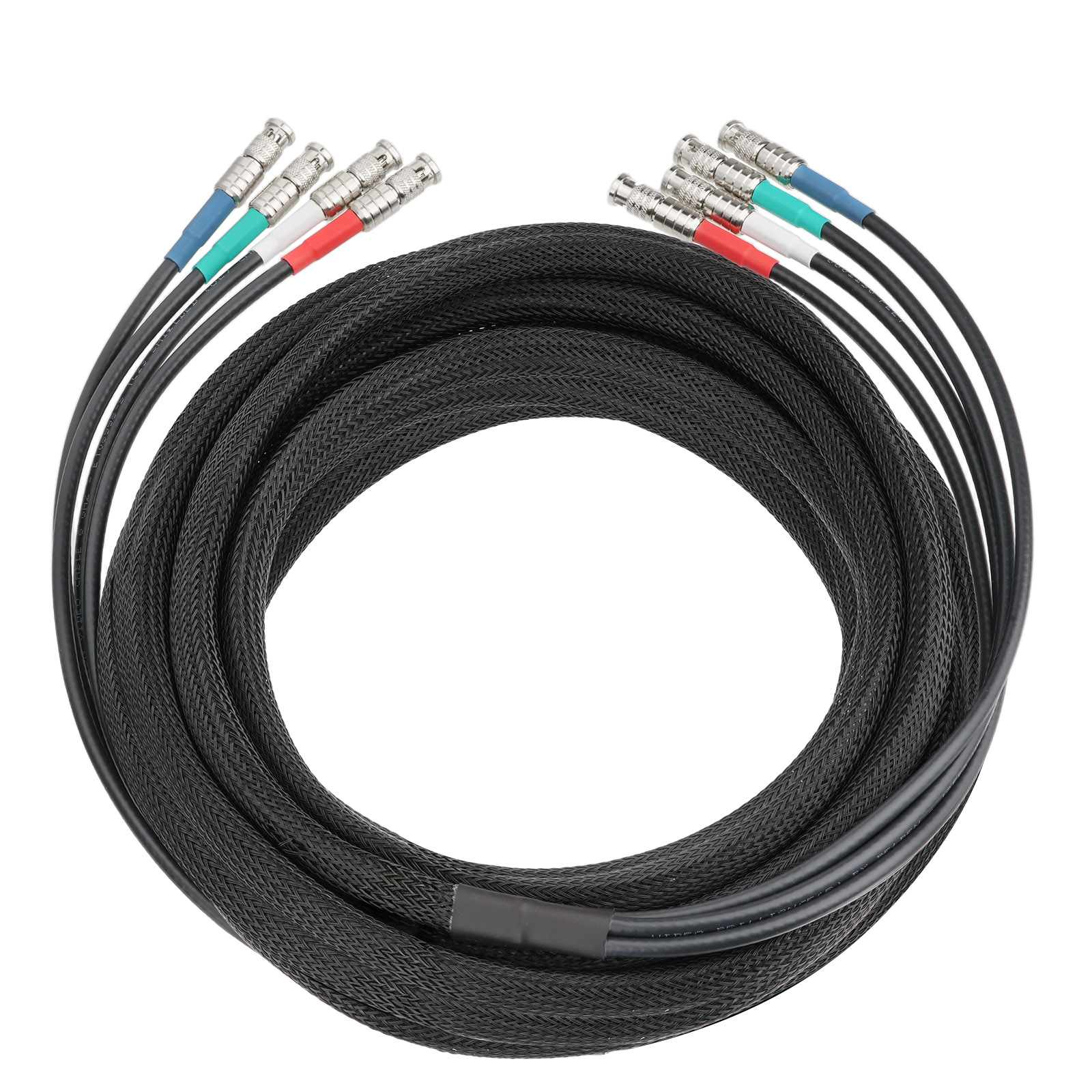

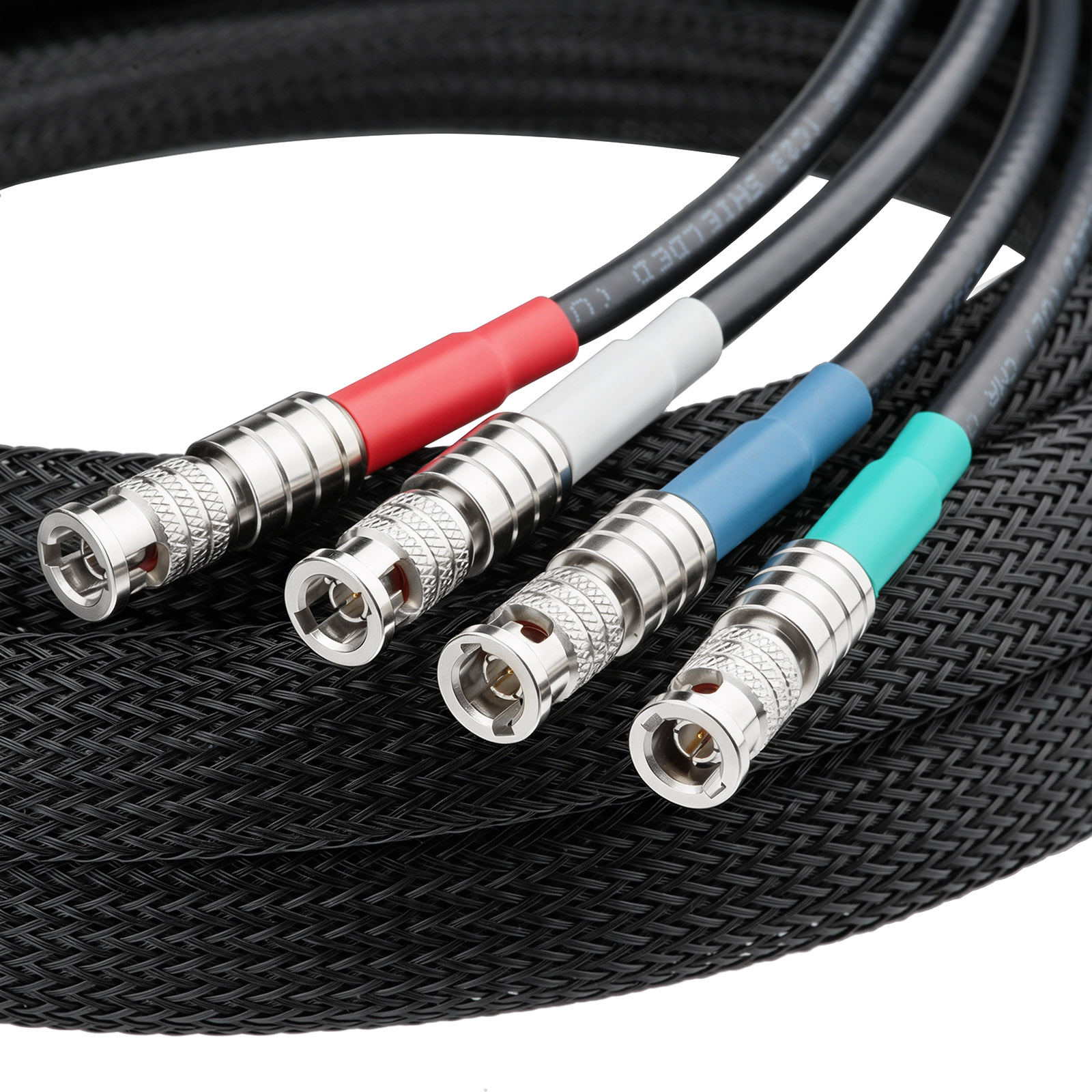

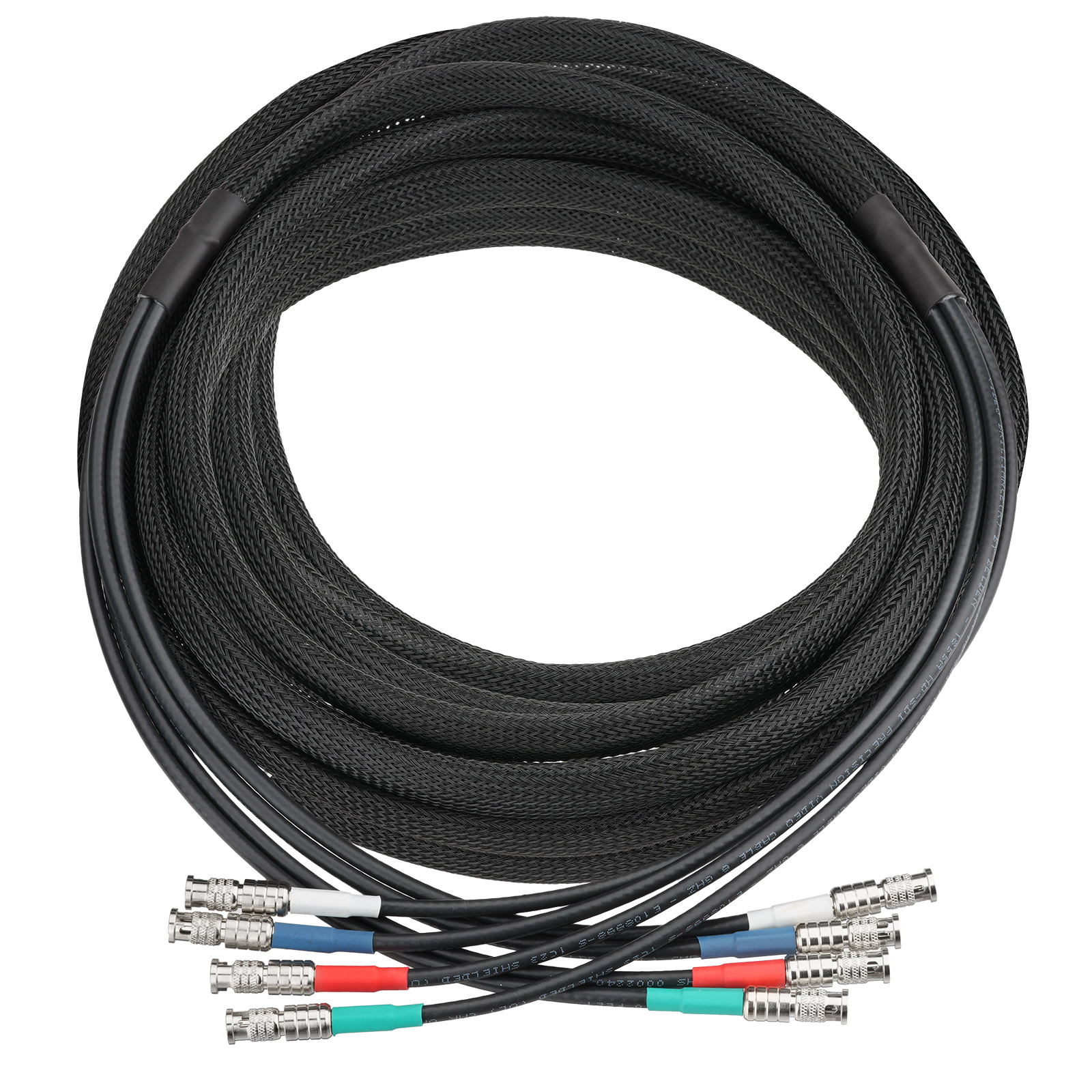

The main cable body is covered with an all-black braided protective sleeve, with 20 cm of exposed lead wire at each end; Four separate red, white, blue, and green heat-shrink tubes identify each conductor, facilitating channel classification and on-site cabling maintenance

The 10-foot 4-in-1 bundled configuration is suitable for compact cabinet installation and is widely applicable to industrial machine vision systems such as PCB frame grabbers, print inspection, food inspection, ITS traffic equipment, and medical imaging

Specifications:

Connector Type: HD BNC(Micro-BNC) to HD-BNC(Micro-BNC)

Gender: Male to Male

Wire Gauge: 23AWG High Flex Drag

Cable Length: 30FT/915CM

Cable Type: Belden 1855A

Impedance (Ohms): 75

OD: 4.2MM

Compatible with CoaXPress CXP-6 6G SDI
