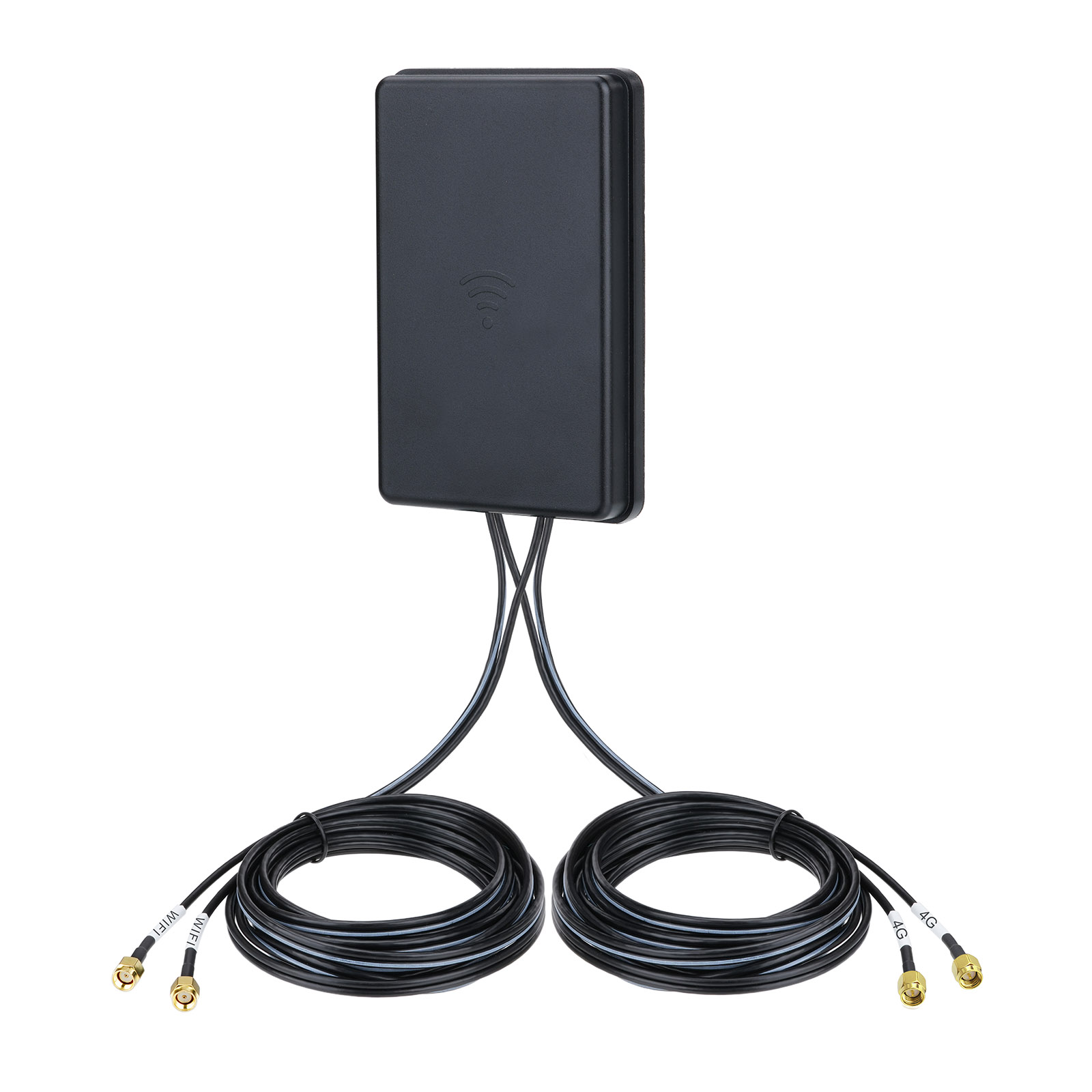

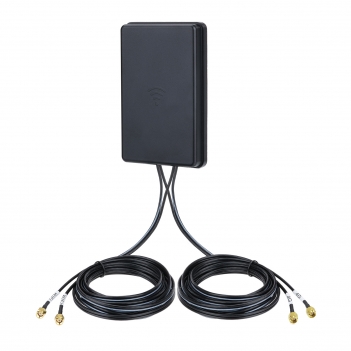

Combo 2X2 4G MIMO 2X2 MIMO WIFI Antenna Cellular 600-6000MHz Adhesive Mount Bluetooth Wimax Zigbee Antenna SMA Male for RP-SMA Plug for WiFi

CELLULAR/WIFI FREQUENCY: Compatible with Cellular 4G LTE/3G and WiFi6E/Bluetooth/Zigbee with frequency ranges of 600-6000MHz and 2100MHz-6000MHz respectively.Suitable for signal reception of various wireless devices.

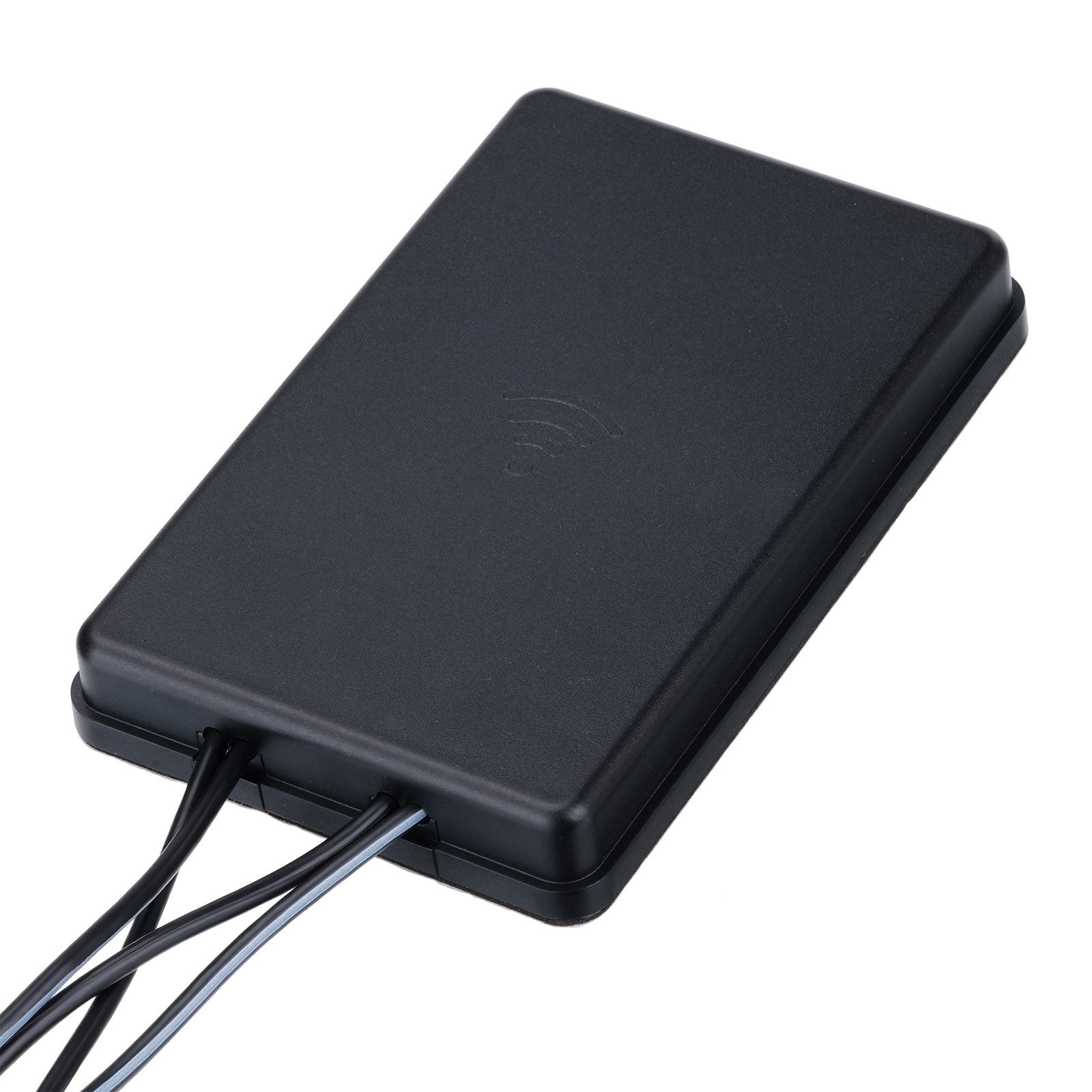

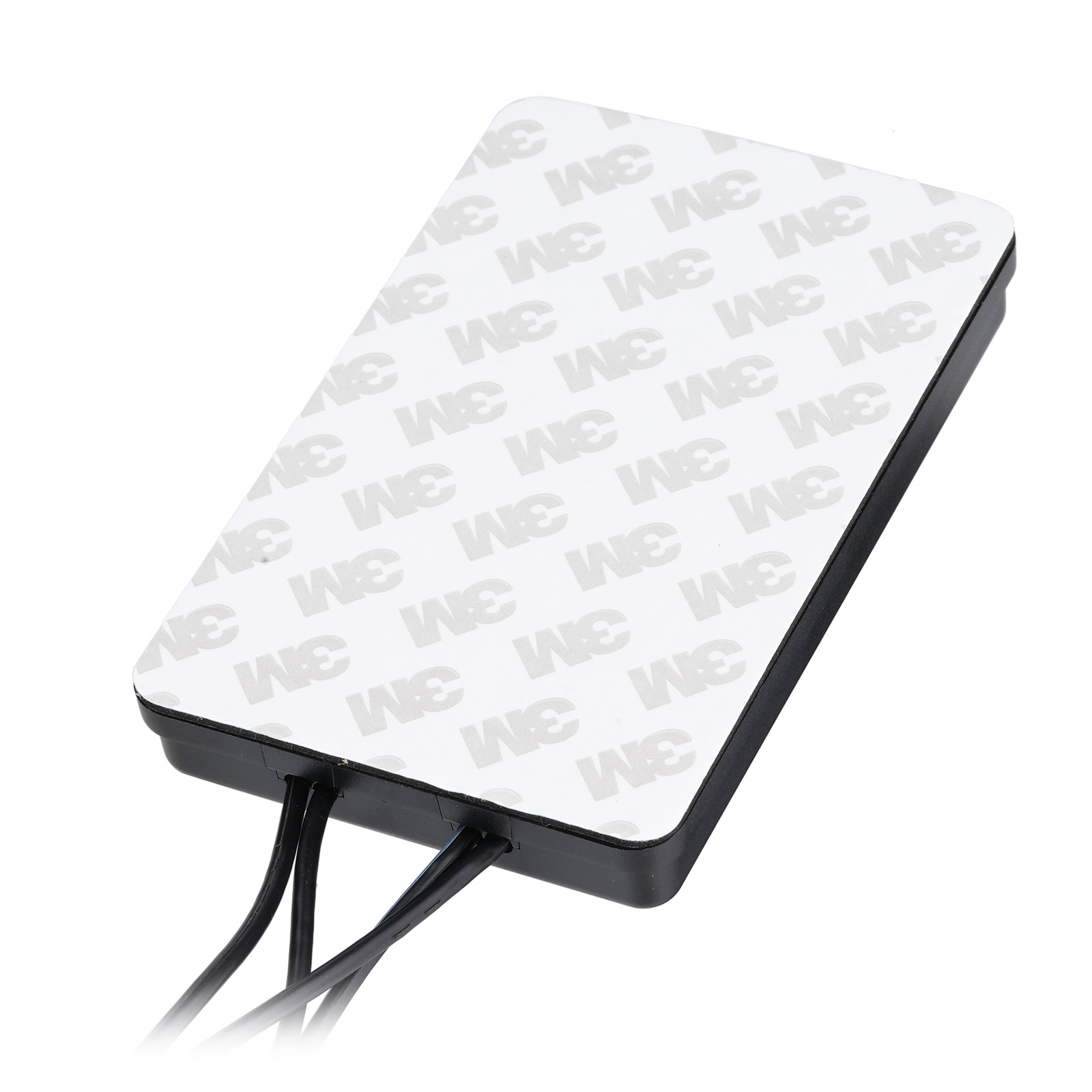

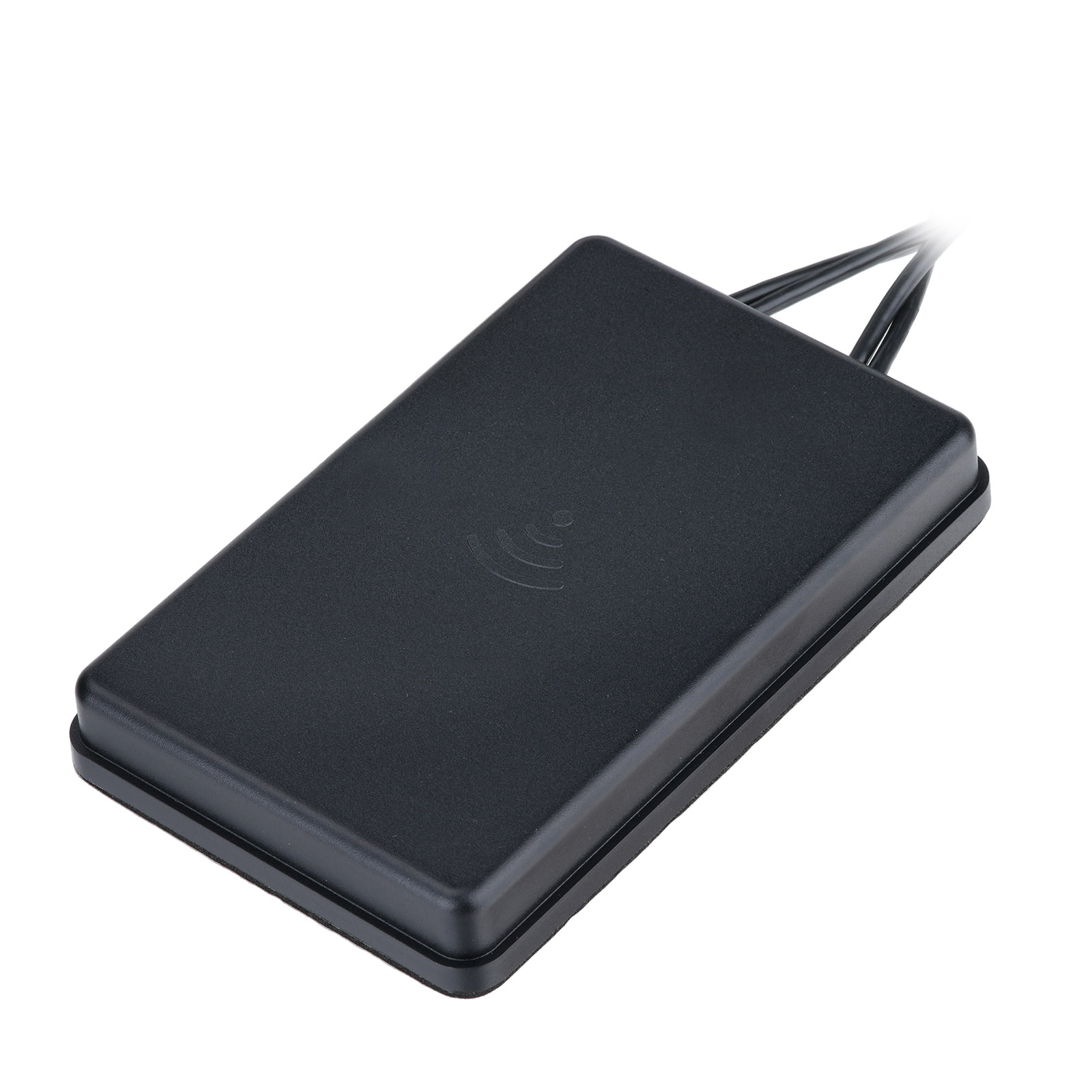

EASY INSTALLATION: Adhesive mount antenna is made of durable reinforced plastic and copper wire for durability and professional performance, and three metre extension cable for choosing the right mounting position.

MULTIPLE APPLICATIONS: Suitable for GSM/3G/4G LTE WiFi6E/Bluetooth/Zigbee systems. Ideal for industrial, commercial and Internet of Things (IOT) applications.

Specification

Cellular 4G LTE/3G

Frequency Range：600MHz-6000MHz

Polarization：Linear

Gain：Up to 3.0 dBi

Connector Type: SMA Male

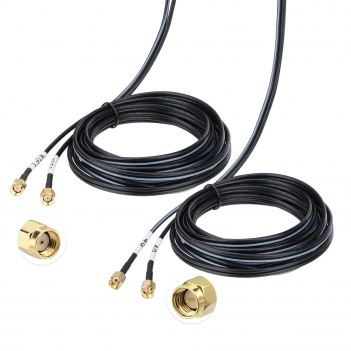

Cable:3M RG174

V.S.W.R：average 3.0

Efficiency：>50%

WiFi6E/Bluetooth/Zigbee

Frequency Range：2100-6000MHz

Polarization：Linear

Gain：Up to 3.0 dBi

Connector Type: RP-SMA Male

Cable:3M RG174

V.S.W.R：average 3.0

Efficiency：>50%

Mechanical

Dimension:116mm*74mm*12mm

Operating Temperature:-40°C-+85°C

Relative Humidity:Up to 95%

Vibration:10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly:ROHS Compliant

Ingress Protection:IP65

Package List: 1 x Combination Antenna
