Dual Band WiFi Antenna: 2.4GHz (2400 - 2485 MHz),5GHz/5.8GHz (5150 - 5850 MHz); Gain: 6dBi; Direction: Omni-directional; Antenna Connector: RP-SMA Male Connector; Accessories Cable: 9.84 inch IPX IPEX U.FL MHF4 to RP-SMA Female Bulkhead Mount 0.81mm Coaxial Pigtail Cable;

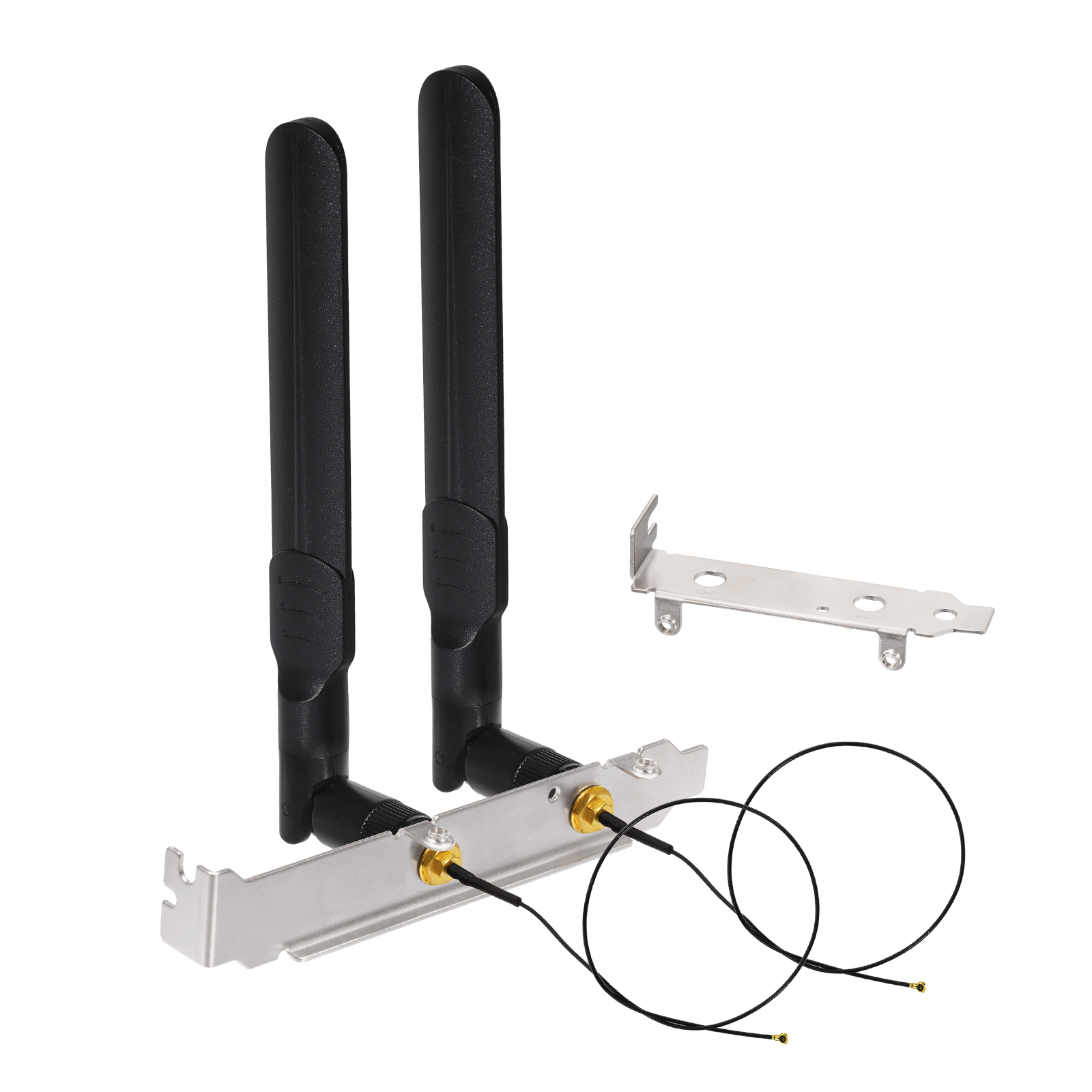

Package List: 2 x WiFi Antennas, 2 x IPEX U.FL MHF4 Coaxial Pigtail Cables, 2 x PCI Slot Covers
Application: The Accessoried IPX U.Fl MHF4 Coaxial Pigtail Cables Compatible with M.2 NGFF Interface Wireless Network Card that Built-in U.FL MHF4 External WiFi Antenna Interface.
Notice: This IPEX IPX U.FL MHF4 pigtail cable only use for M.2 NGFF interface network cards, can not fit Mini PCI-E interface network cards, please check your network cards before purchasing.
Applicable Devices: Compatible with Intel AX200NGW 8265AC 8265NGW 7265AC 9560AC M.2 NGFF Wireless Network Cards External WiFi Antennas.
| Gain | 6dBi |
| Frequency Range | Dual Band WiFi 2.4GHz 5.8GHz |
| VSWR | <2.0 |
| Polarization | Linear Vertical |
| Impedance | 50 ohm |
| Direction | Omni-directional |
| Antenna Connector | RP-SMA Male Connector |
| Antenna Dimension | 19.5cm x 1.5cm Diameter |
| Antenna Dimension | 19.5cm x 1.5cm Diameter |
| Net Weight | 80g |
| Operating Temperature | -20°С ~ +80°С |
| Storage Temperature | -30°С ~ +85°С |

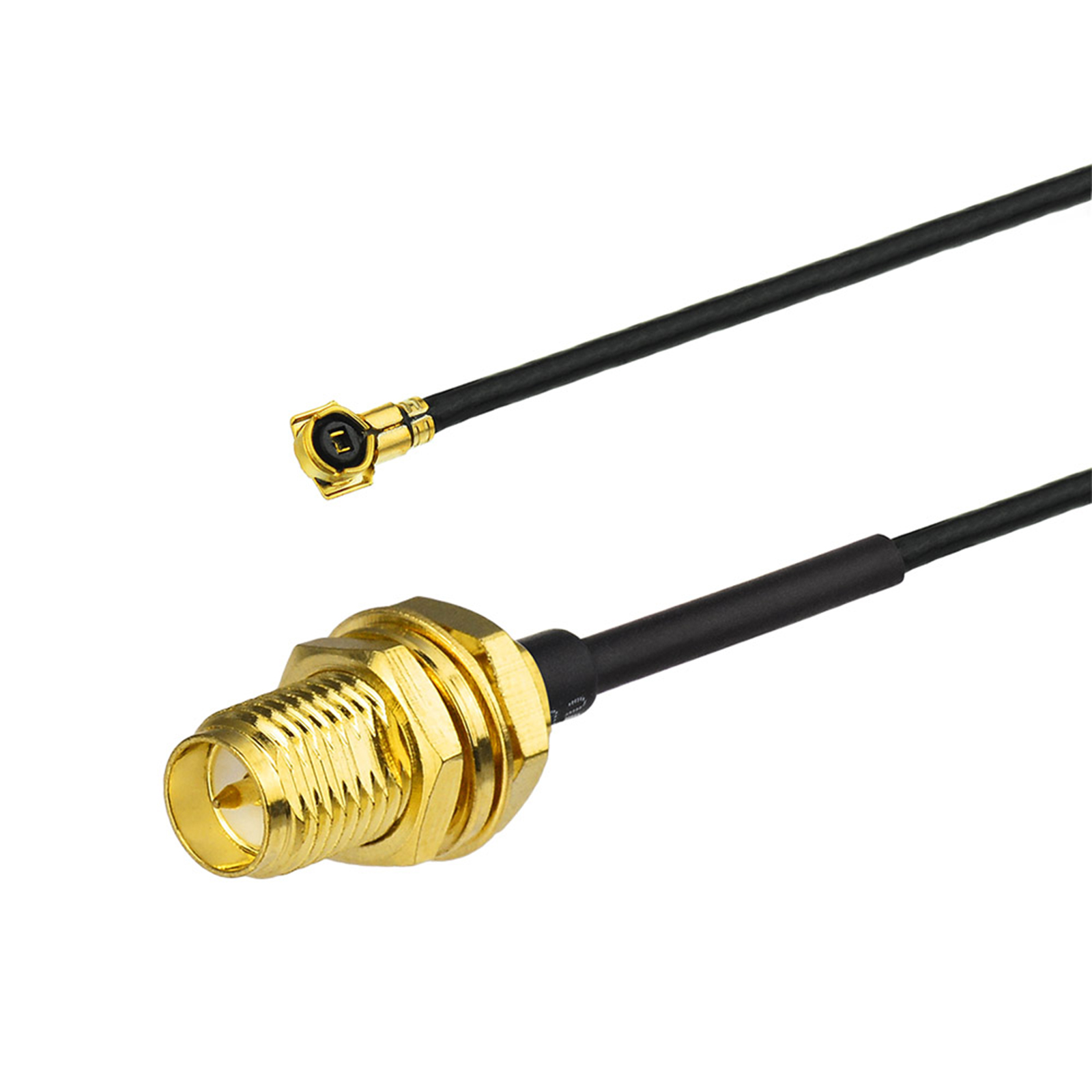

| Cable | 9.84 inches /25 cm IPX U.FL MHF4 to RP-SMA Female Bulkhead Mount 0.81mm Coaxial Pigtail Cable |
| Package List | 2 x WiFi Antennas, 2 x Coaxial Pigtail Cables, 2 x PCI Slot Covers |
| Notice | This IPEX IPX U.FL MHF4 pigtail cable only use for M.2 NGFF interface network cards, can NOT fit Mini PCI-E interface network cards, please check your network cards before purchasing. |
