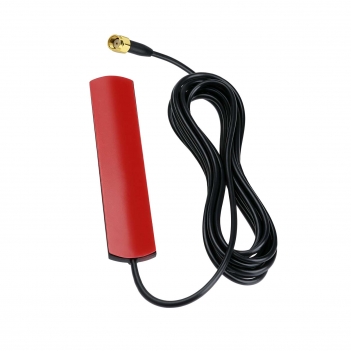

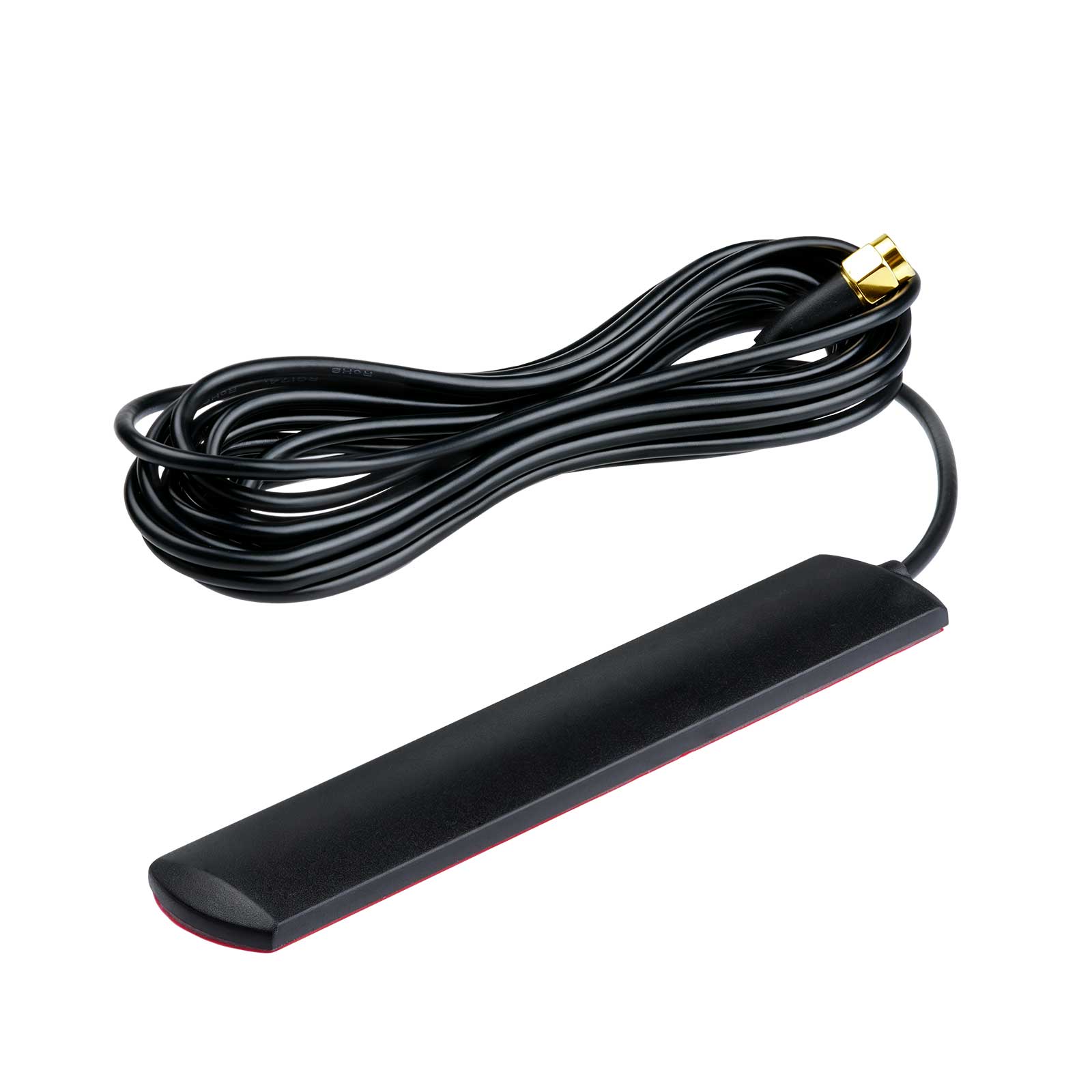

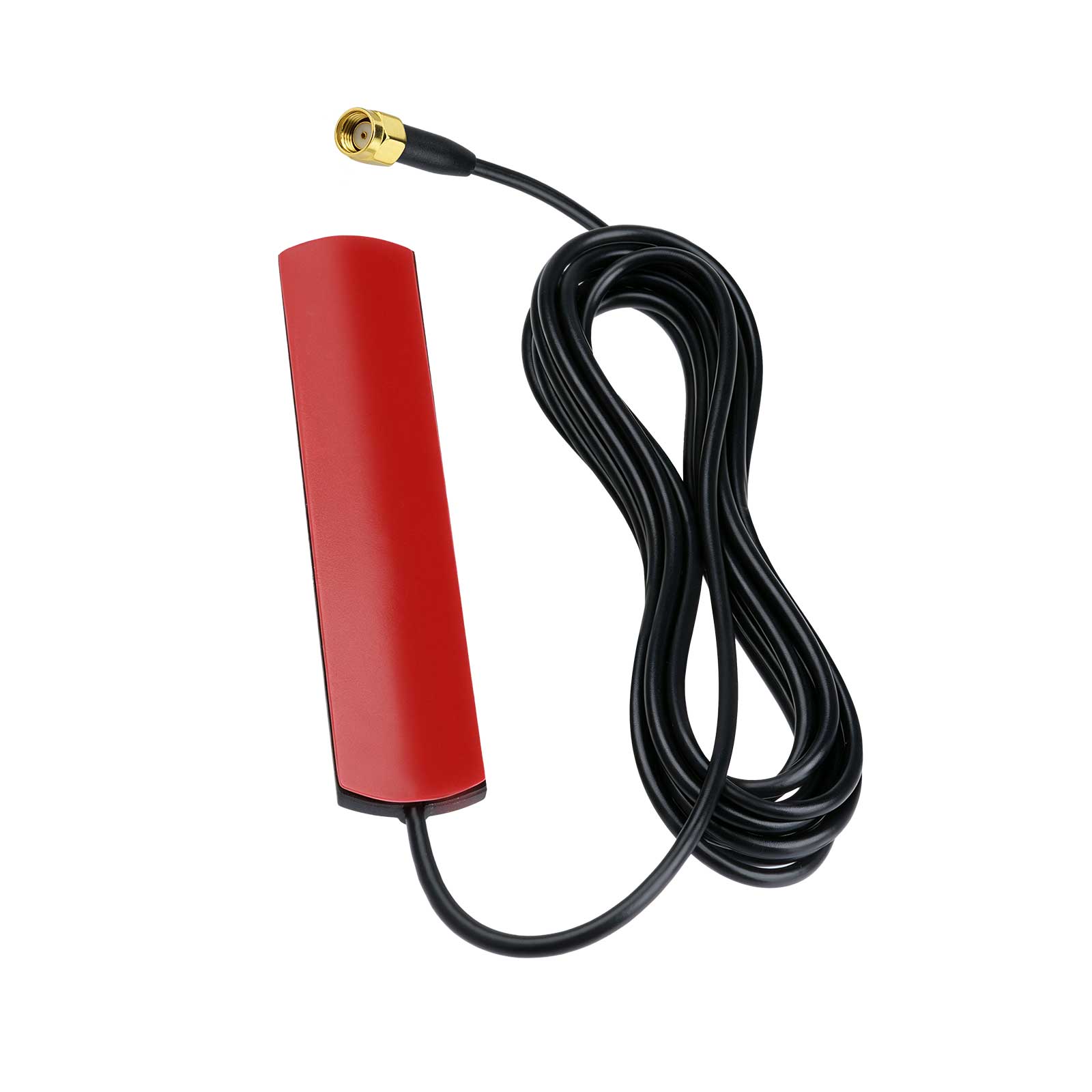

Product Type: Dual-Band WiFi Flat Patch Antenna

Frequency Range: 2400–2500 MHz / 5150–5850 MHz

WiFi Standard: 802.11a/b/g/n/ac

Impedance: 50 Ω

VSWR: ≤ 3.0

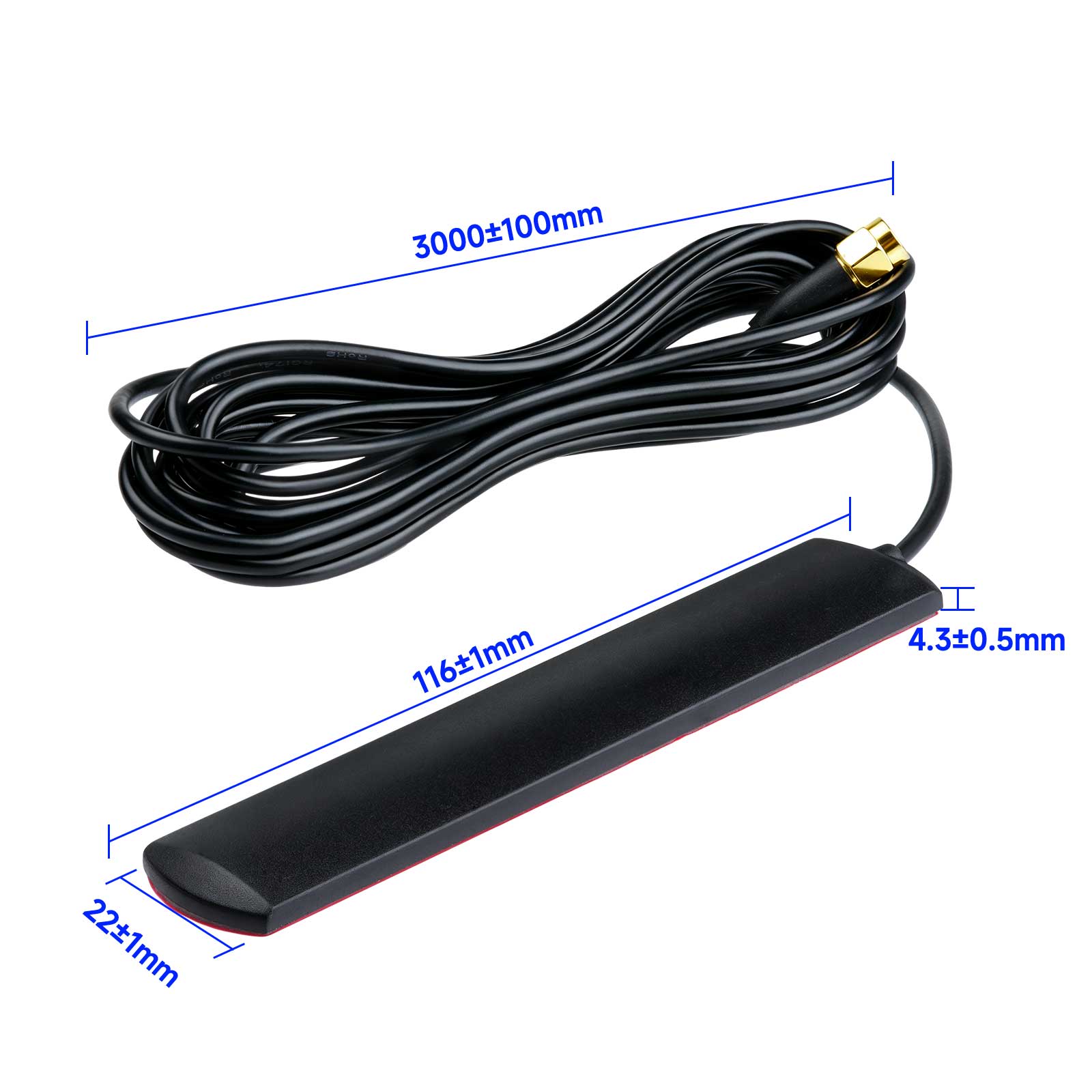

Antenna Dimensions: 116 × 22 × 5.2 mm

Cable Type: RG174

Cable Length: 3meter

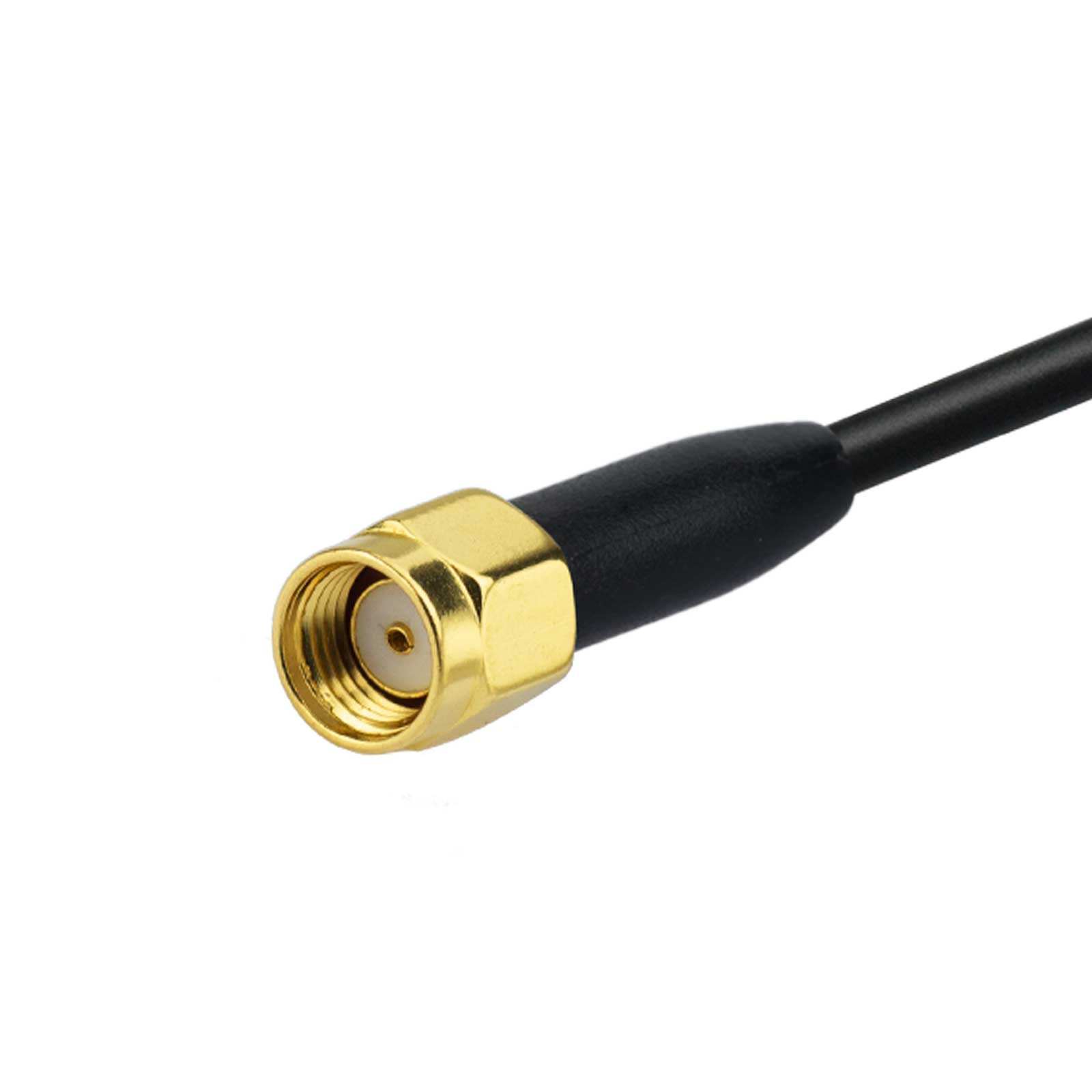

Connector: RP-SMA Male (Injection-Molded Straight Type)

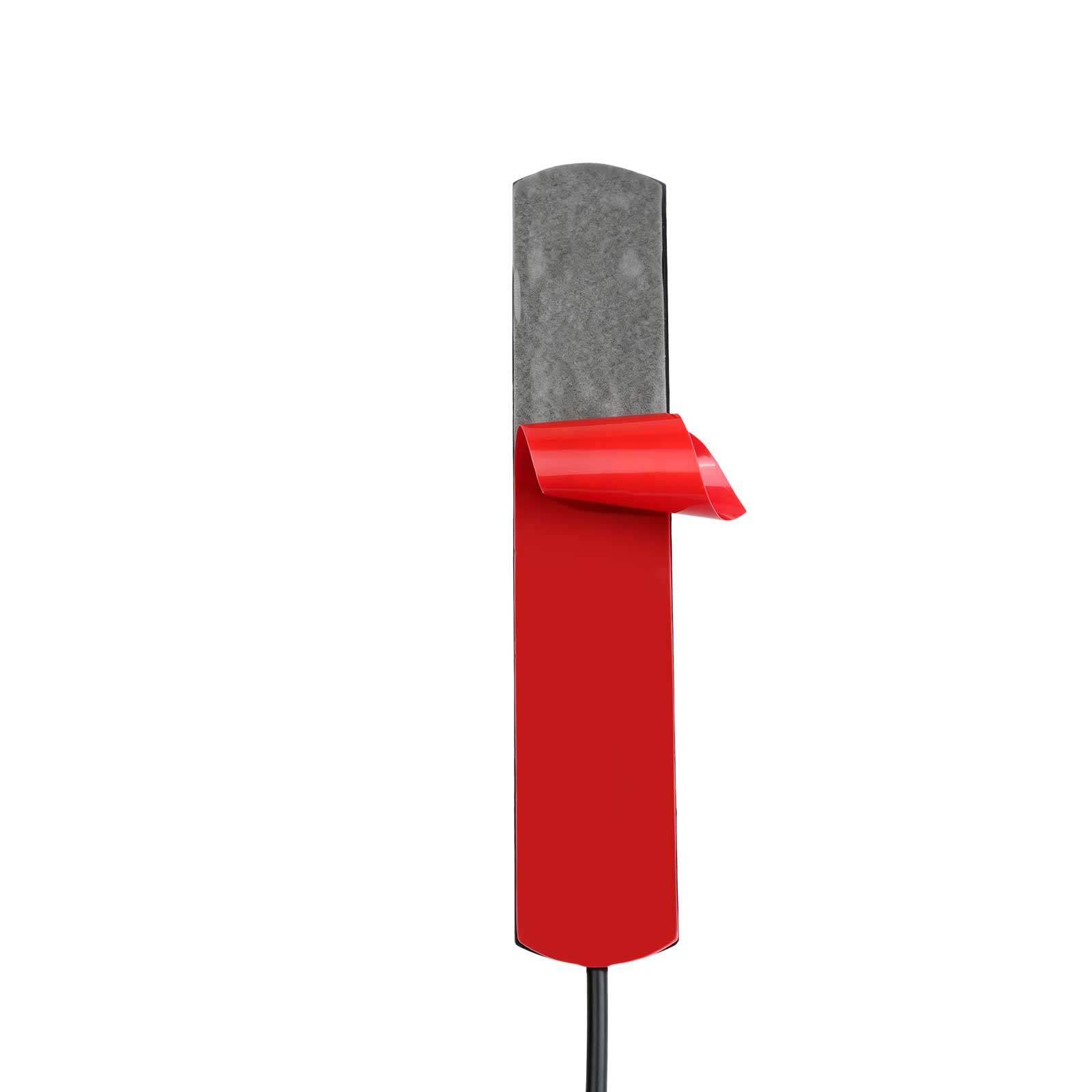

Mounting Type: Adhesive (Sticker)

Cable Color: Black

Operating Temperature: -30°C ~ +70°C

Operating Humidity: 0% ~ 95%

Tightening Torque: 0.5 N·m

Product Features

Dual-band 2.4GHz + 5GHz WiFi antenna

RP-SMA male connector (injection-molded straight type)

3-meter RG174 coaxial cable, 50Ω impedance

Flat patch design, 116×22×5.2mm low profile

Adhesive backing for tool-free surface mounting

VSWR ≤ 3.0 for efficient signal transmission

Wide operating temperature: -30°C to +70°C

Suitable for indoor and semi-outdoor installations

Black cable for discreet routing

Applications

Dual-band WiFi router antenna replacement or upgrade

WiFi repeater and range extender antenna

Wireless access point external antenna

802.11ac/ax dual-band networking equipment

IoT gateway and smart home hub antenna

Industrial WiFi equipment antenna replacement

DIY wireless networking projects requiring RP-SMA antenna

RV, office and home WiFi signal enhancement

Package Contents

1 × Dual-Band WiFi Flat Patch Antenna (RP-SMA Male, 3m RG174 Cable)
