Technical Specifications

Product Type: 4G LTE Cone-Mount Antenna with Bracket Kit

Frequency Range: 700–2700 MHz

Gain: 4 dBi

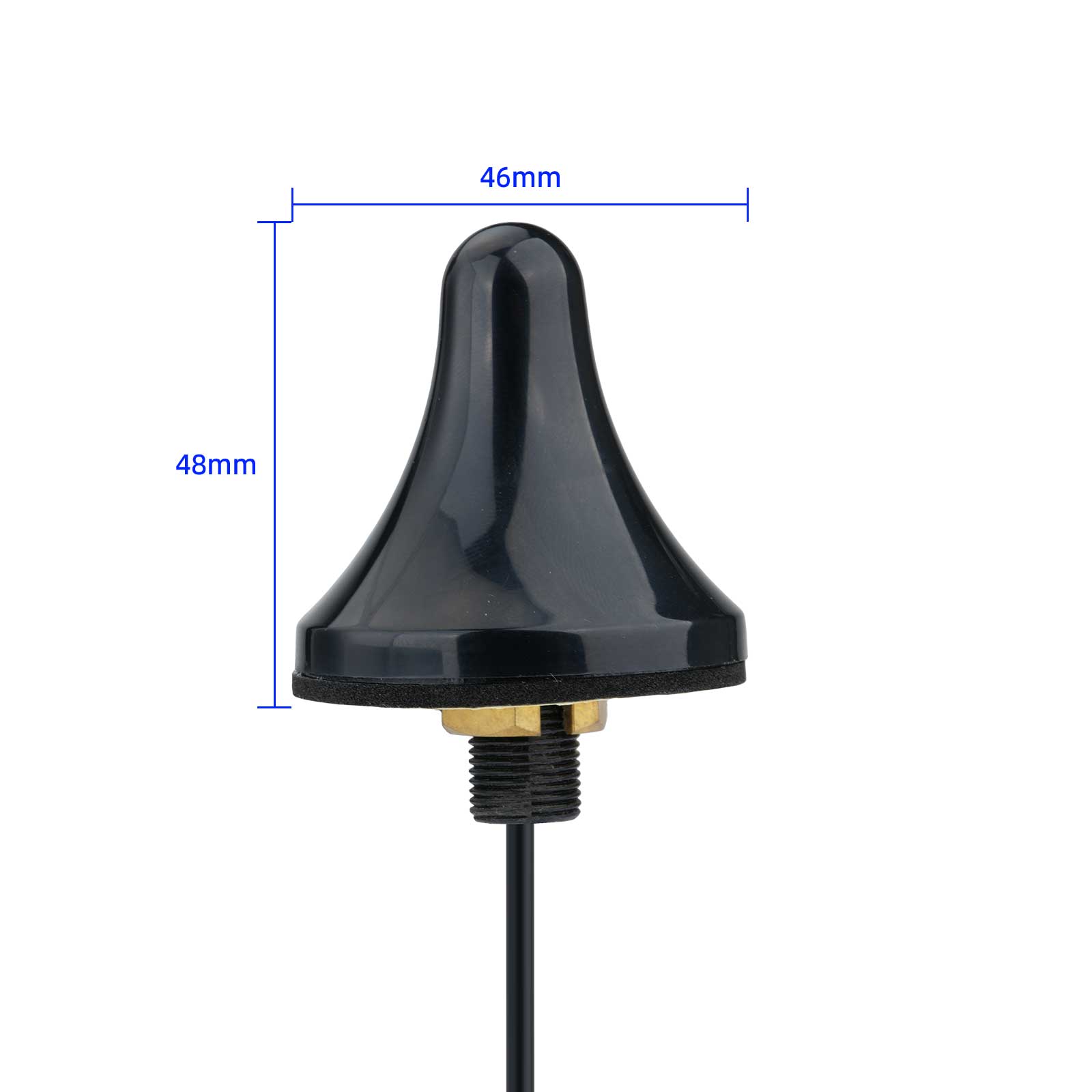

Antenna Dimensions: Ø46mm (top) × 48mm (H)

Housing Color: Black

Mounting Type: Threaded Stud with Brass Nut & Sealing Ring

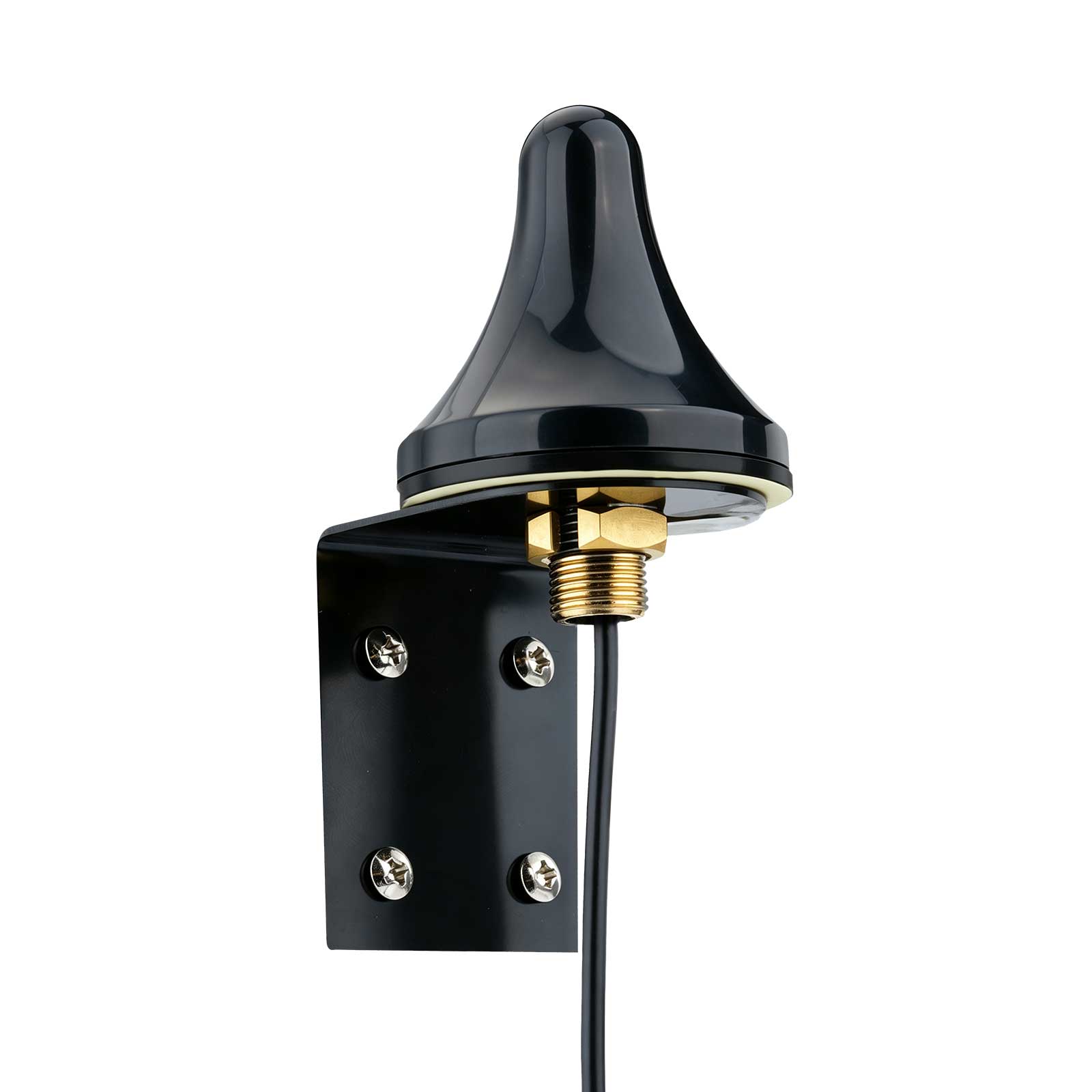

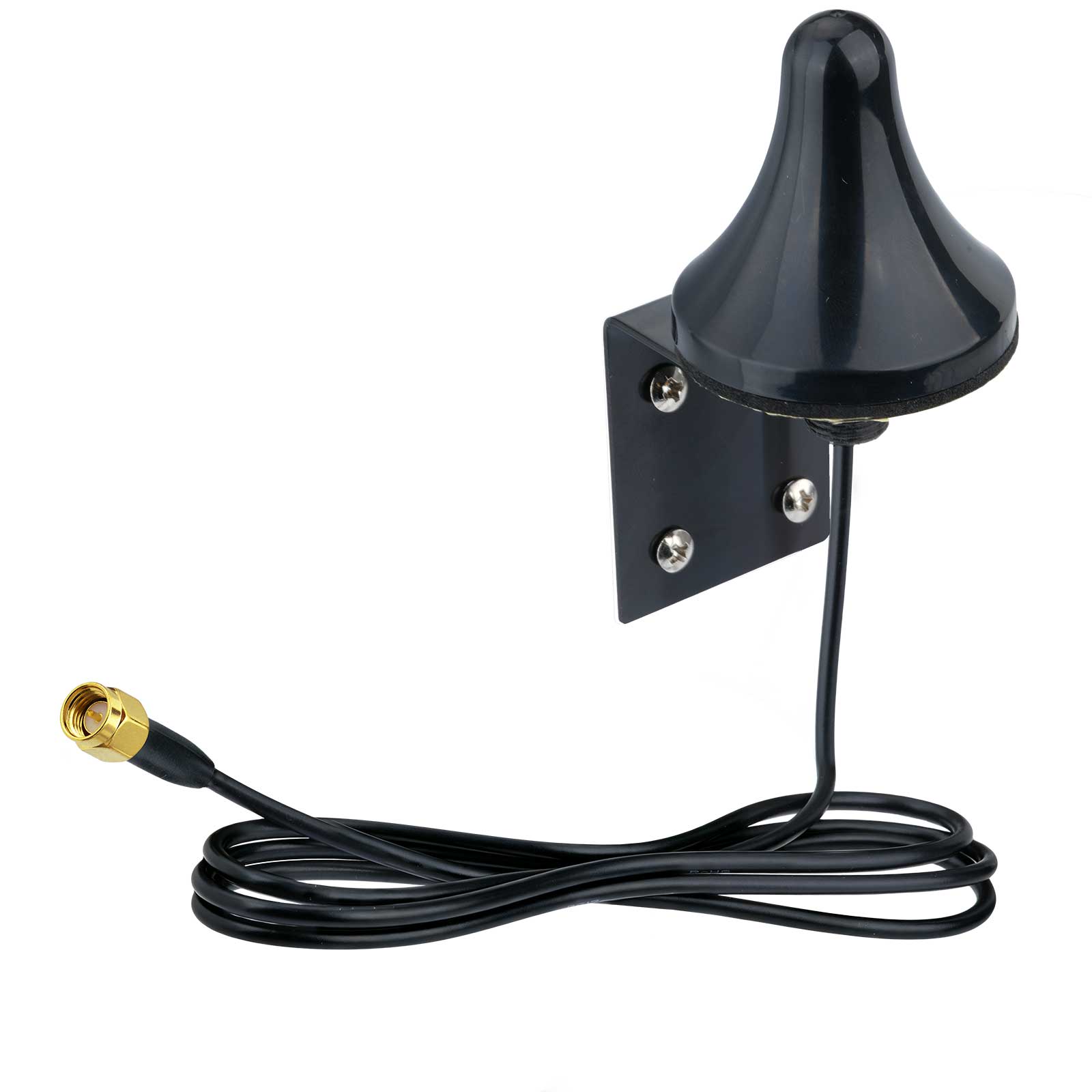

Bracket: L-Shaped Metal Bracket (4 mounting holes)

Bracket Fixing Screws: 4 × M3×12mm (included)

Cable Type: RG174

Cable Length: 1m

Connector: SMA Male (Center Pin)

Application: 4G router, modem, vehicle, gateway, IoT, M2M, booster

Product Features

700–2700MHz wideband 4G LTE coverage

4dBi gain in a compact Ø46×48mm cone housing

Aerodynamic dome profile — low drag, discreet appearance

Sealing ring under base for weathertight, cushioned mounting

Threaded stud mount with brass nut

Includes L-shaped metal mounting bracket (4-hole)

Includes 4 × M3×12mm fixing screws

1m RG174 low-loss coaxial cable

Standard SMA male connector (center pin)

Vibration-resistant fixed installation for vehicles and equipment

Applications

4G LTE router and modem installations

Vehicle, truck, van and fleet connectivity

IoT gateway and M2M terminal external antenna

Industrial equipment, kiosks and vending machines

Smart cabinets, ATMs and payment terminals

Signal booster and repeater systems

Marine and off-grid 4G setups

Wall, roof, panel and enclosure mounted 4G devices

Package Contents

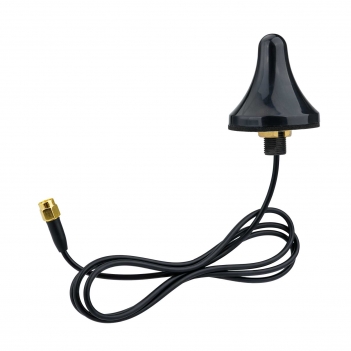

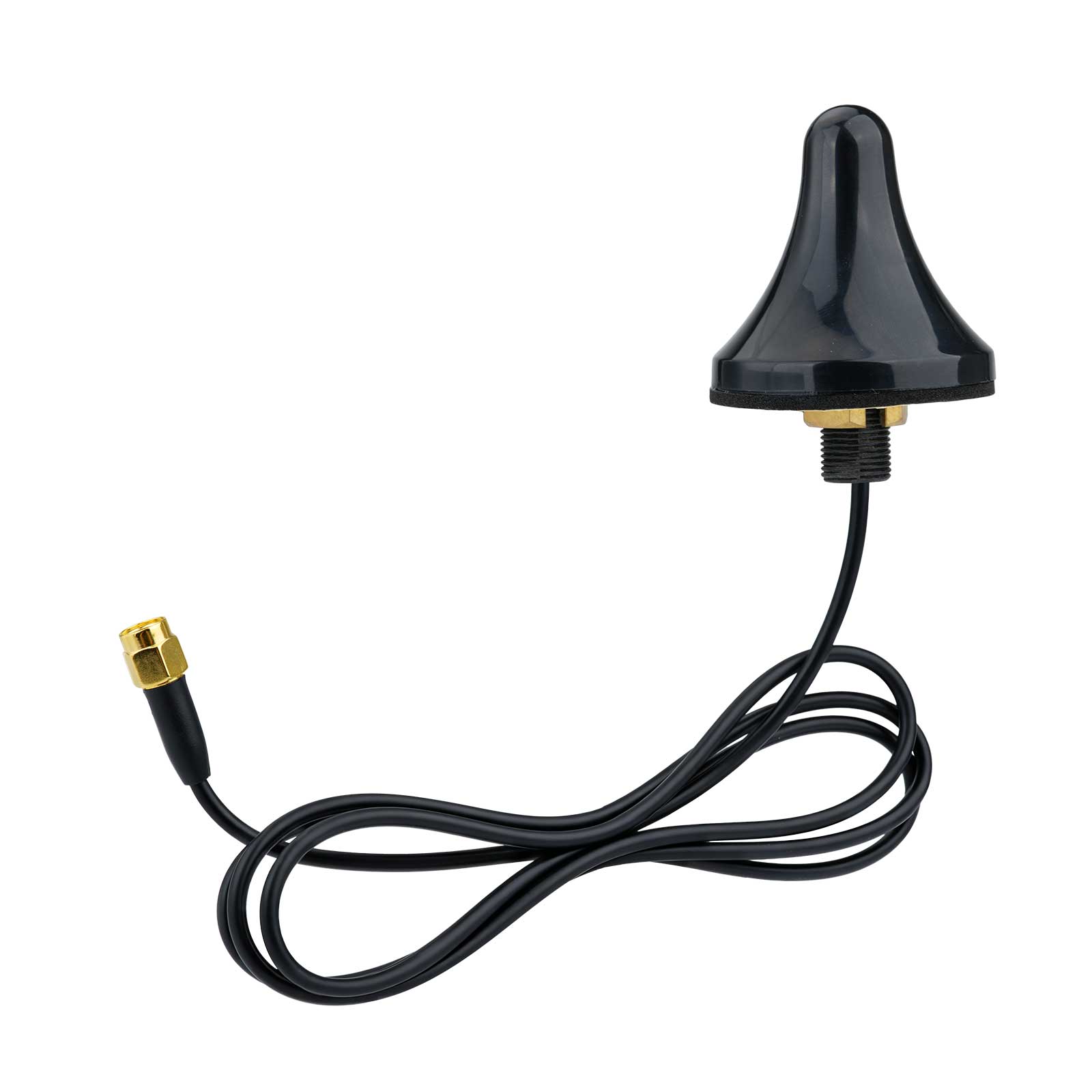

1 × 4G LTE Cone-Mount Antenna (Ø46×48mm, 4dBi, SMA Male, 1m RG174)

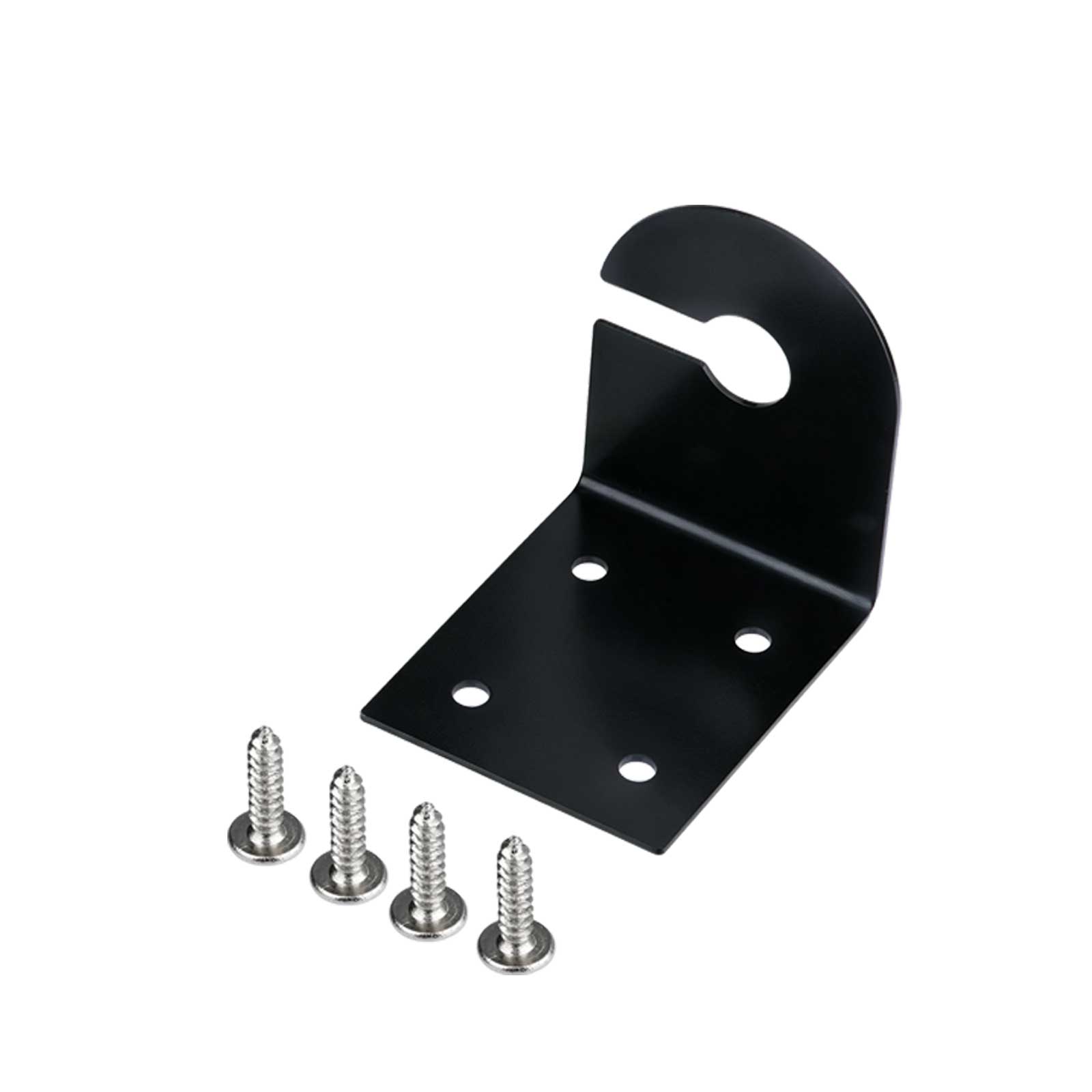

1 × L-Shaped Metal Mounting Bracket

4 × M3×12mm Screws
