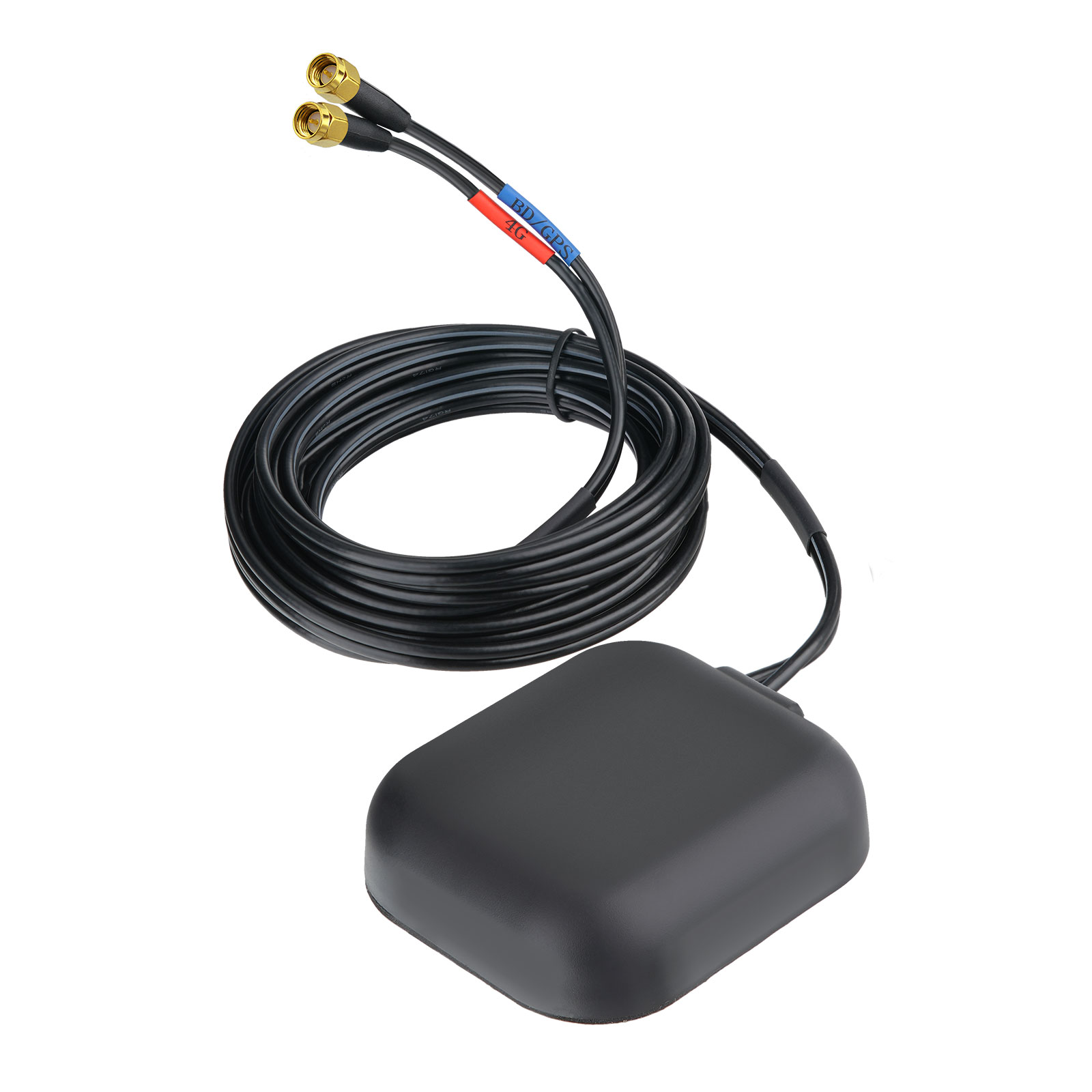

Dual-Band GPS/BeiDou + 4G Antenna with SMA Male Connectors

Dual-System Positioning & 4G Connectivity

Supports GPS (1575.42±2.5MHz) and BeiDou (1561±2.5MHz) with RHCP polarization; Integrated 4G module covers 800-960MHz/1710-2700MHz bands for global IoT/telematics applications.

High-Gain LNA & Stable Signal Output

28±2dB low-noise amplifier (LNA) with ≤2.0dB noise coefficient; ≤2.0 VSWR ensures minimal signal loss for precise tracking in urban or remote areas.

Industrial-Grade Durability

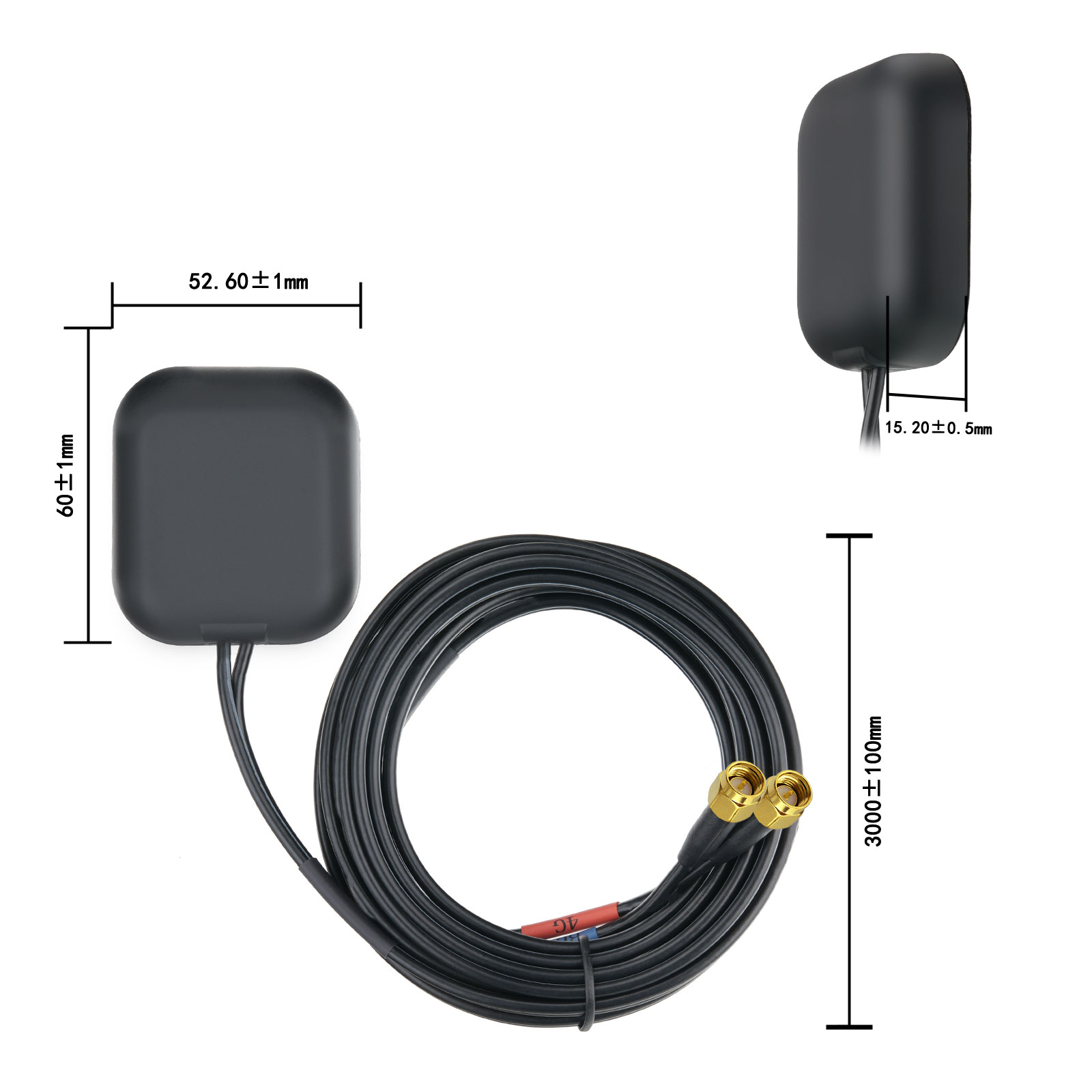

Compact design (60x52.6x16.5mm) with IP65-rated housing; Operates in extreme temperatures (-40°C to +85°C) and 95% humidity for automotive/outdoor use.

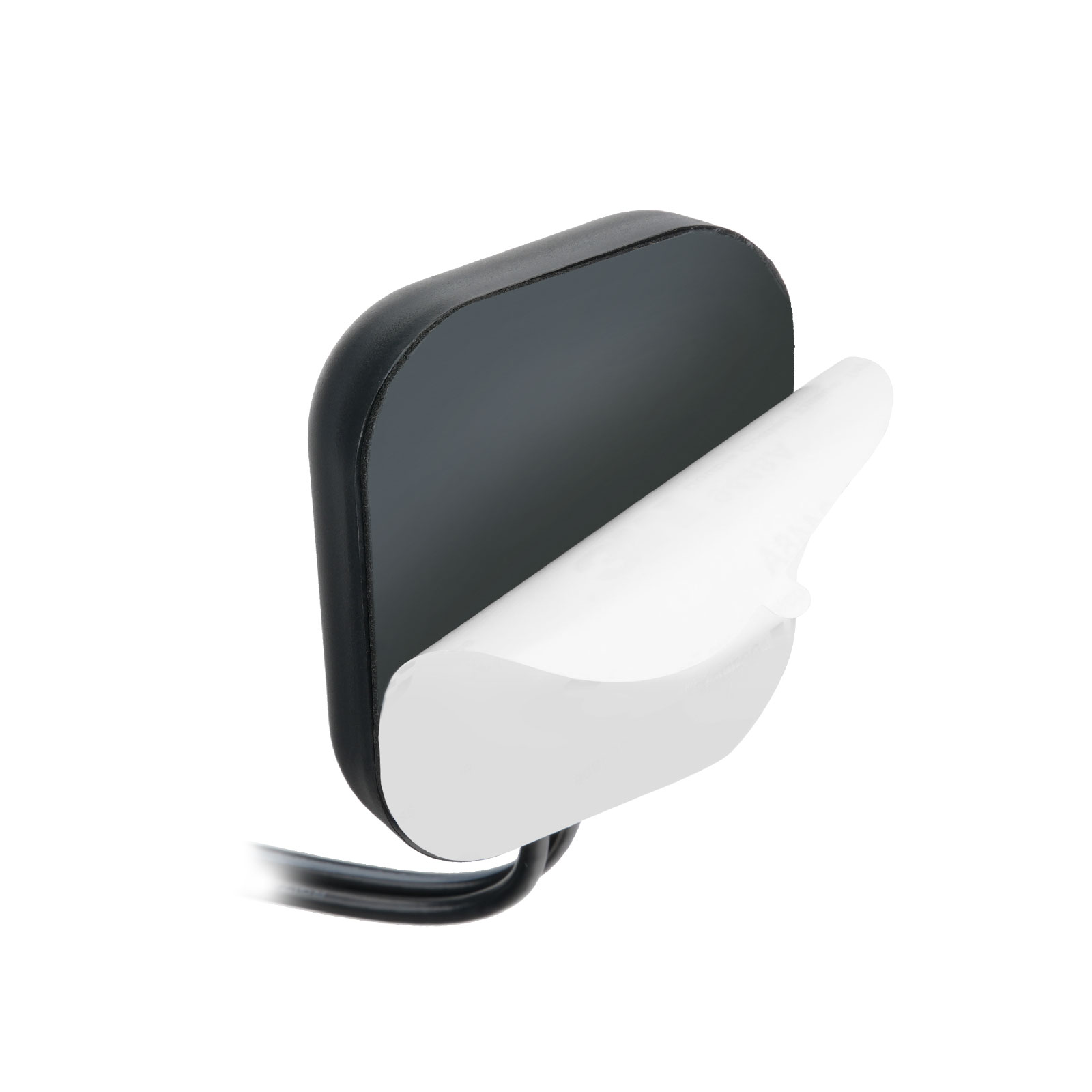

SMA Connectors & Easy Installation

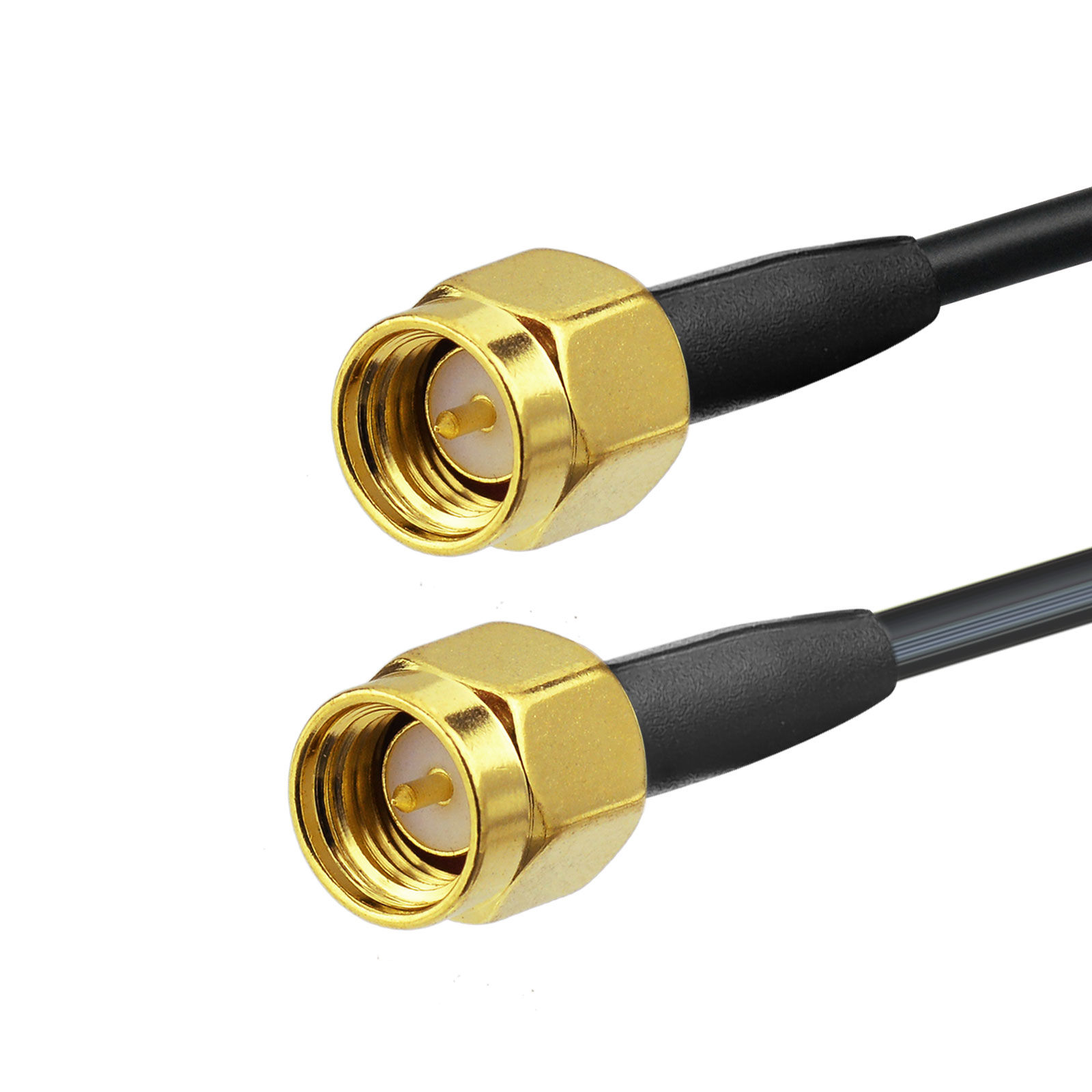

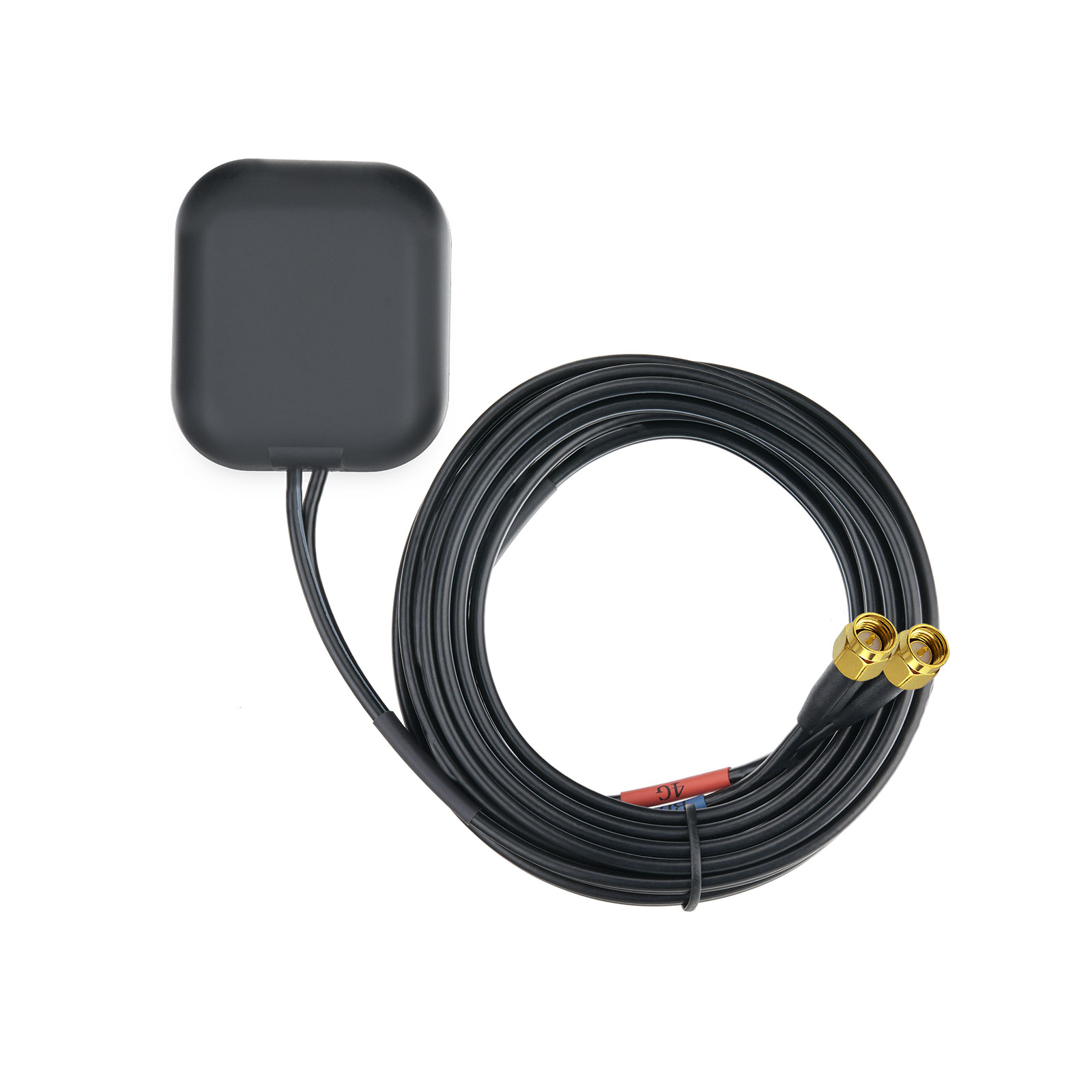

FAK.Z/C (GPS/BeiDou) and FAK.Z/D (4G) connectors with RG174 cable (3000±100mm）

Product Description

Dual-Band GPS/BeiDou + 4G Antenna for Industrial Tracking Solutions

The GPS/BD antenna combines high-precision positioning and robust 4G connectivity, designed for demanding environments like automotive telematics, IoT asset tracking, and remote monitoring systems.

Specifications:

GPS/BeiDou Module:

Frequency: 1575.42±2.5MHz (GPS L1), 1561±2.5MHz (BeiDou B1)

Bandwidth: >10MHz

Gain: 3.0Bi (70x70mm patch)

VSWR: ≤2.0

Polarization: Right-Hand Circular (RHCP)

4G LTE Module:

Frequency Range: 800-960MHz & 1710-2700MHz

Impedance: 50±5Ω

VSWR: ≤3.0

Power Handling: 50W

LNA Specifications:

Gain: 28±2dB

Noise Figure: ≤2.0dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: 8±3mA

RoHS/REACH compliant

Environmental Resilience:

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Applications:

Fleet management and vehicle tracking systems

Industrial IoT sensors and remote monitoring

Agricultural machinery and construction equipment

Marine and aviation navigation
