Dual-Band GPS/BeiDou + 4G Antenna with SMA Male Connectors, 28dB LNA, IP65 Rated - Industrial-Grade for Automotive/IoT Tracking

Dual-System GPS/BeiDou & 4G LTE Integration

Supports GPS L1 (1575.42±2.5MHz) and BeiDou B1 (1561±2.5MHz) with RHCP polarization; Integrated 4G module covers 800-960MHz/1710-2700MHz bands for global IoT/telematics connectivity.

High-Gain Low-Noise Amplifier (LNA)

28±2dB gain with ≤2.0dB noise coefficient; ≤2.0 VSWR ensures stable signal transmission in urban or remote environments.

Industrial-Grade Durability

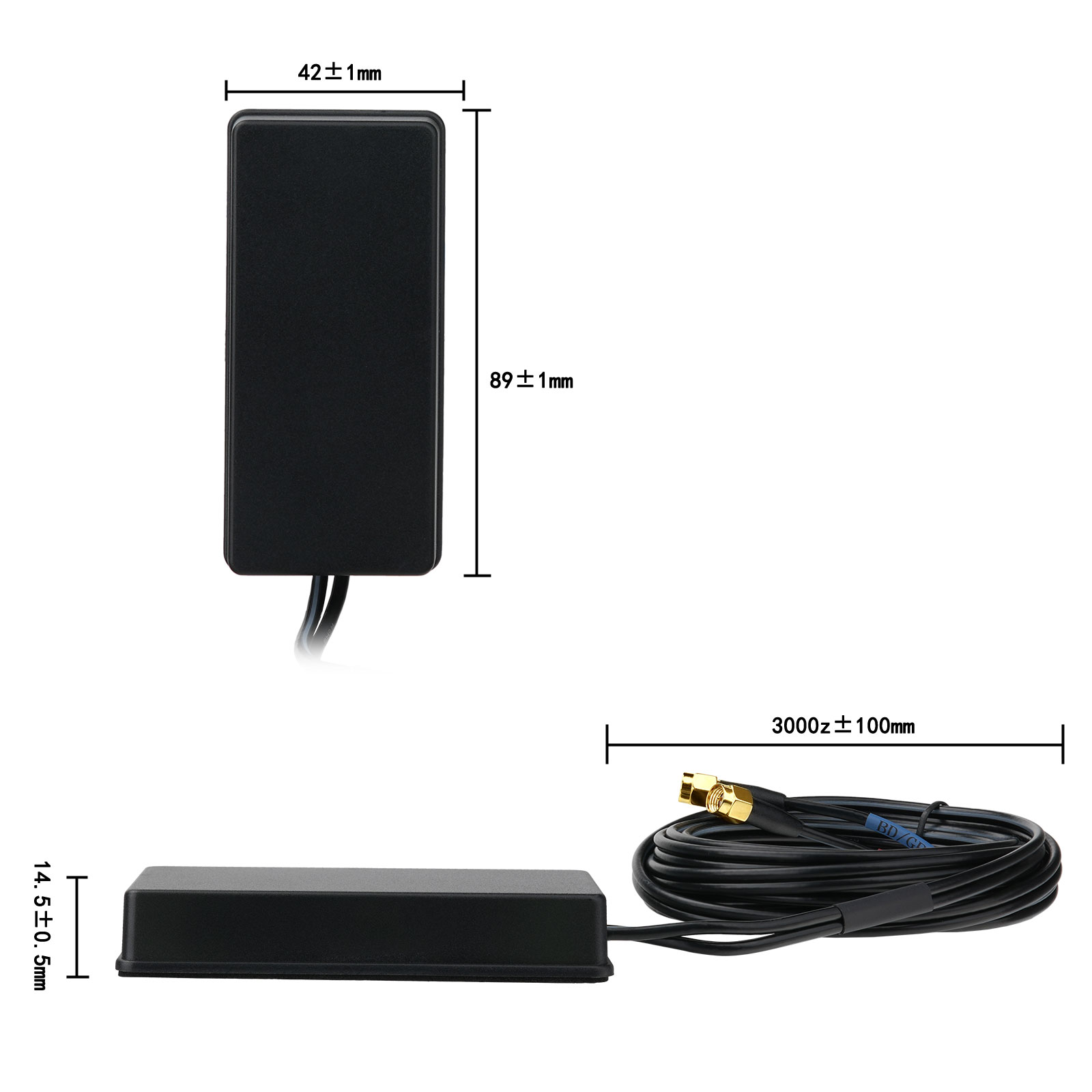

Compact IP65-rated housing (89x42x15.8mm); Operates in extreme temperatures (-40°C to +85°C) and 95% humidity; Resists vibration and corrosion for automotive/outdoor use.

SMA Male Connectors & Easy Installation

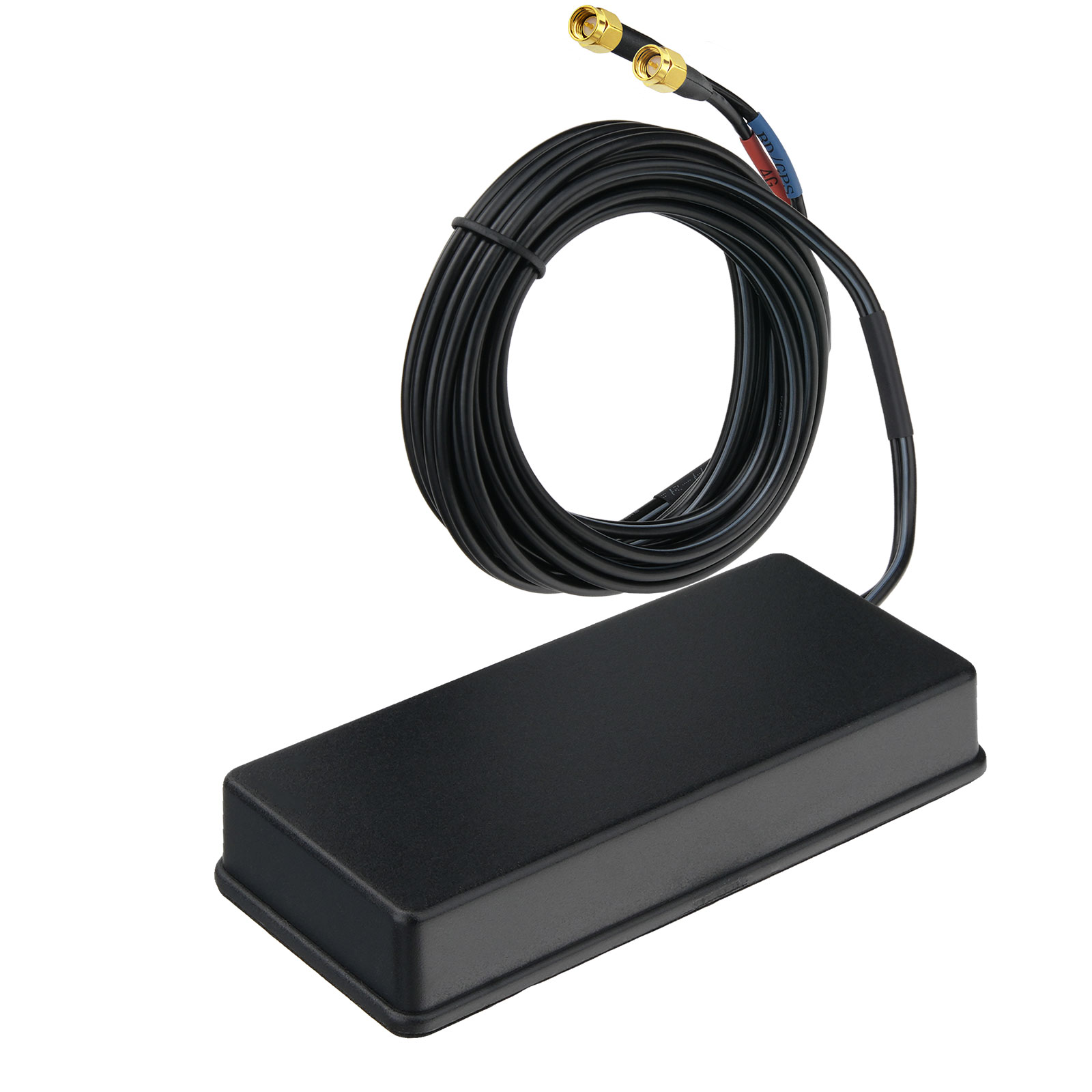

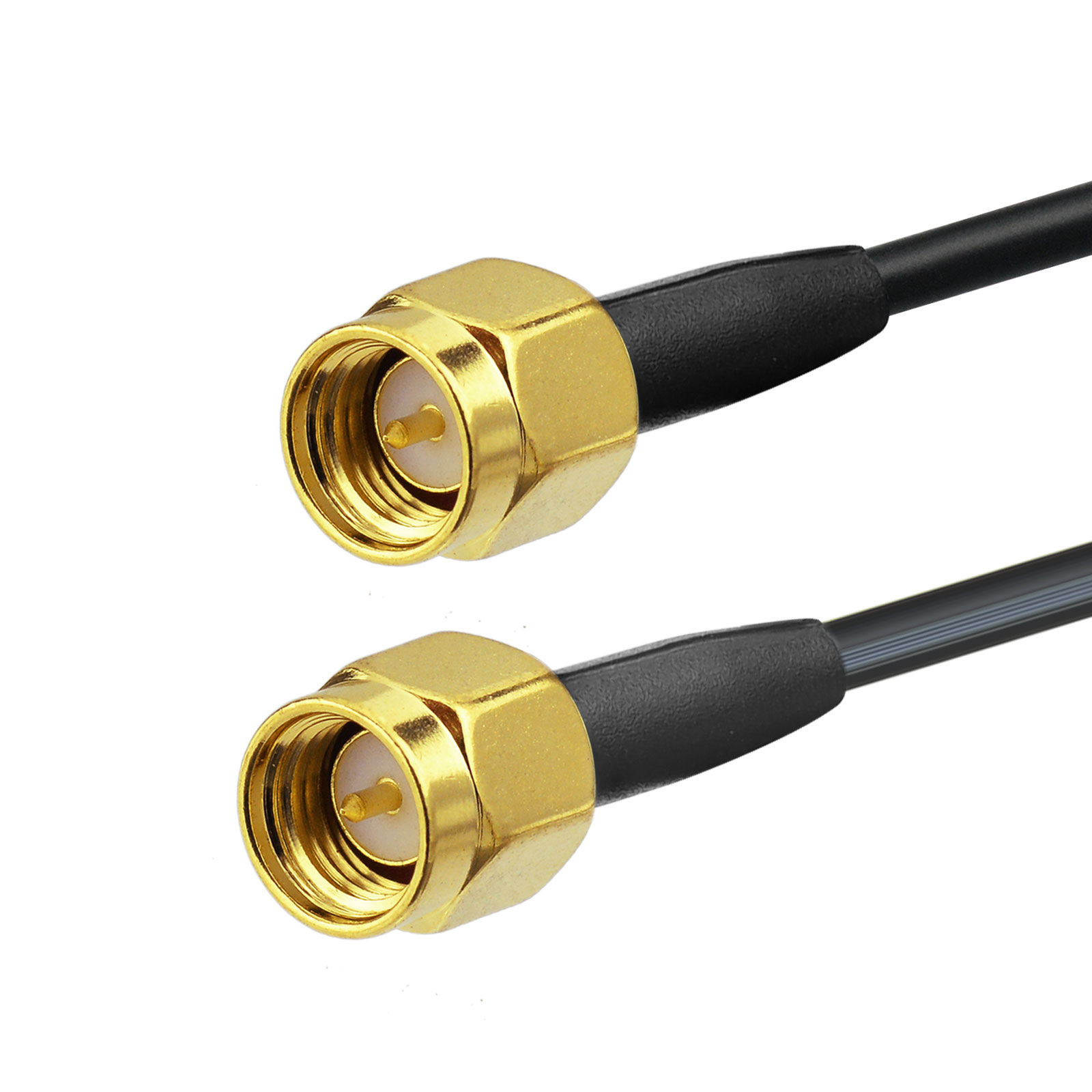

SMA Male (GPS/BeiDou) and SMA Male (4G) connectors with RG174 cable (3000±100mm); Screw-mount design ensures secure attachment to vehicles, drones, or machinery.

Certified Reliability

Passed 24-hour high/low-temperature stress tests; 50W power handling for 4G applications.

Product Description

Dual-Band GPS/BeiDou + 4G Antenna for Industrial and Automotive Tracking

This antenna combines highly accurate positioning with robust 4G connectivity, designed for demanding environments such as automotive telematics, IoT asset tracking and remote monitoring systems.

GPS/BeiDou Module:

Frequency:

GPS L1: 1575.42±2.5MHz

BeiDou B1: 1561±2.5MHz

Bandwidth: >10MHz

Gain: 3.0Bi (70x70mm patch)

VSWR: ≤2.0

Polarization: Right-Hand Circular (RHCP)

4G LTE Module:

Frequency Range: 800-960MHz & 1710-2700MHz

Impedance: 50±5Ω

VSWR: ≤3.0

Power Handling: 50W

LNA Specifications:

Gain: 28±2dB

Noise Figure: ≤2.0dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: 8±3mA

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Package Content: 1 x Combined Antenna

Applications:

Fleet management and vehicle tracking systems

Industrial IoT sensors and remote monitoring

Agricultural machinery and construction equipment

Marine and aviation navigation
