GPS LTE Combination Antenna With Dual SMA Male Connectors 3m Cables And Wall Mount Bracket
Unit Price: $17.86
sku:GA46-300-S01SP-S01SP-JCB062+ZJ-001+RF32223X4
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 5dBi V.S.W.R: <2.0 Cable Type: RG174 Cable Length: 3 Meters Weight: 194g

Active GPS Navigation and 4G LTE Cellular Omni-directional Combined Antenna;

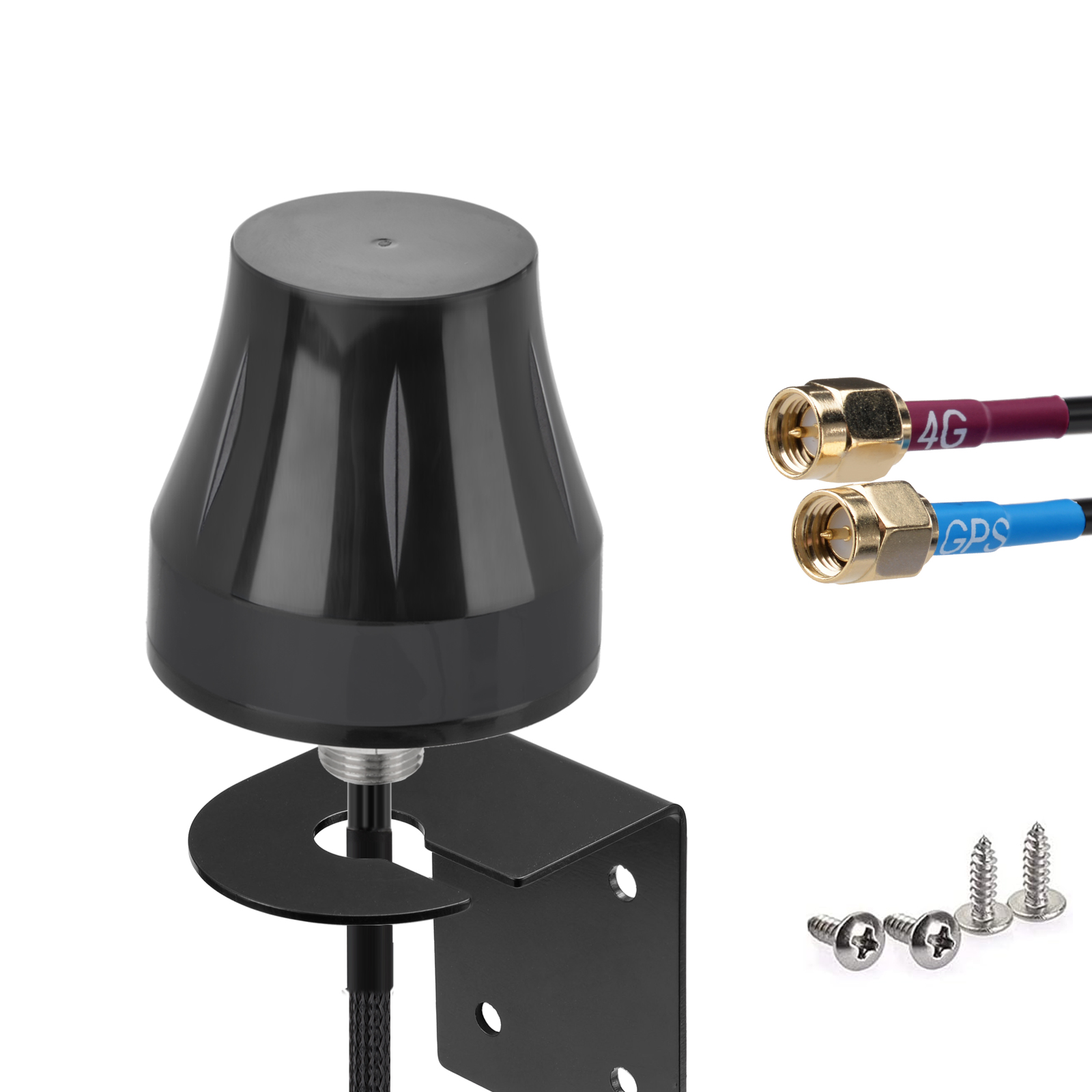

Feature: Through Hole Fixed Bracket Wall Mounting; Connector: Dual SMA Male Connector; Cable: Dual 3m Cable;

Braided mesh protects coax from mechanical abrasion and increases service life.

Compatible with: Vehicle Car 4G LTE TCU Telematics; 4G LTE GPS Tracker Locator; Vehicle RV Bus Truck Boat Mobile DVR Camera Security Real Time Video Recorder; Bus Truck RV Van Security Alarm System, 4G LTE Industrial Gateway Mobile Router;

Compatible with Industrial 4G LTE Router, Cellular IoT Gateway, 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector Alert;


Specifications:
4G LTE Cellular Antenna Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: <2.0
Polarization: Linear
Gain: 5dBi
Impendance: 50Ω

GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Band Width: >9MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: <1.5
Impendance: 50Ω
Axial Ratio: 3dB(max)
LNA Gain: 28±2dB
LNA Noise Figure: <1.5
LNA V.S.W.R: <2.0
LNA Supply Voltage: 2.2~5V DC
LNA Current Consumption: 5~15mA

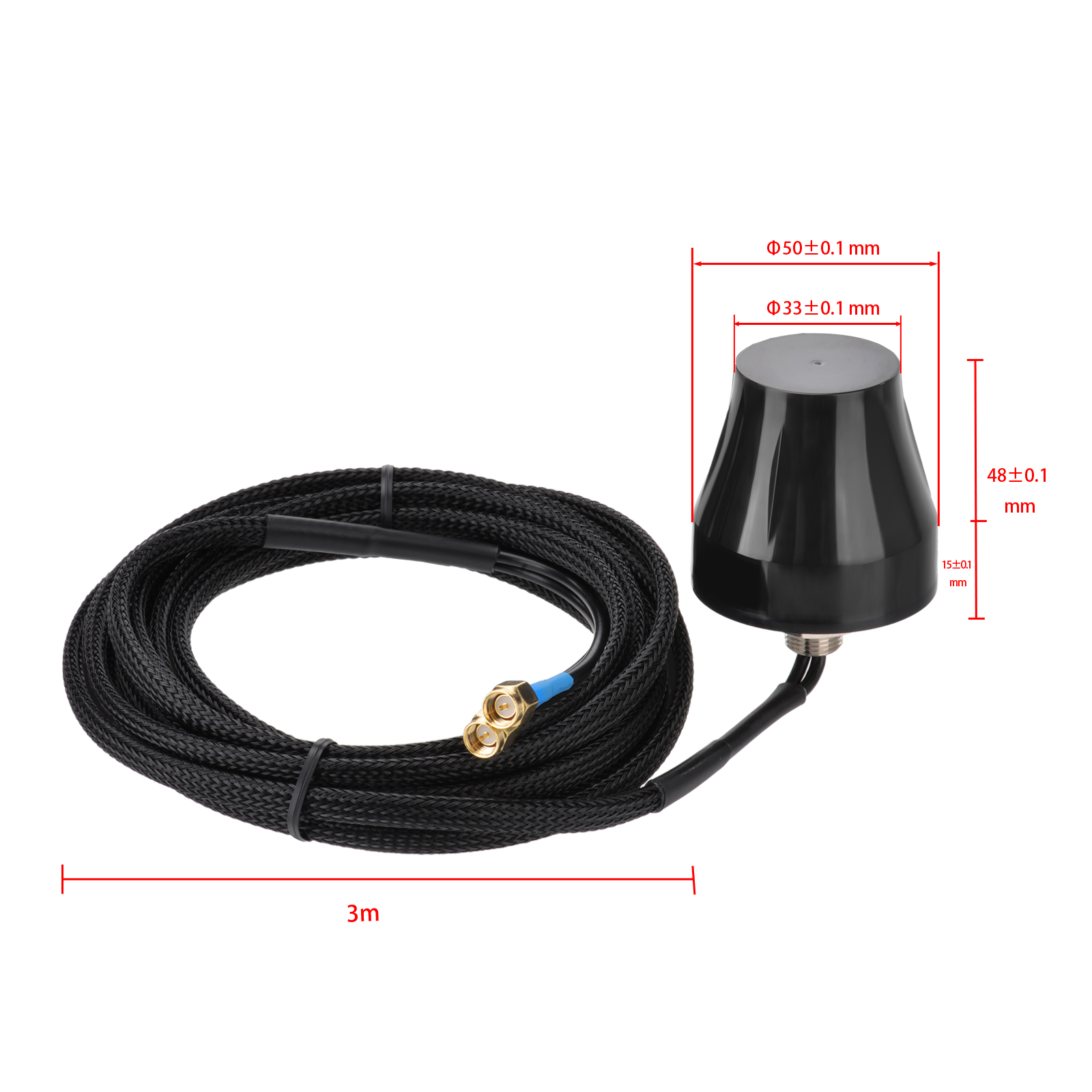

Mechanical:
Cable: RG174
Cable Length: 3 Meters

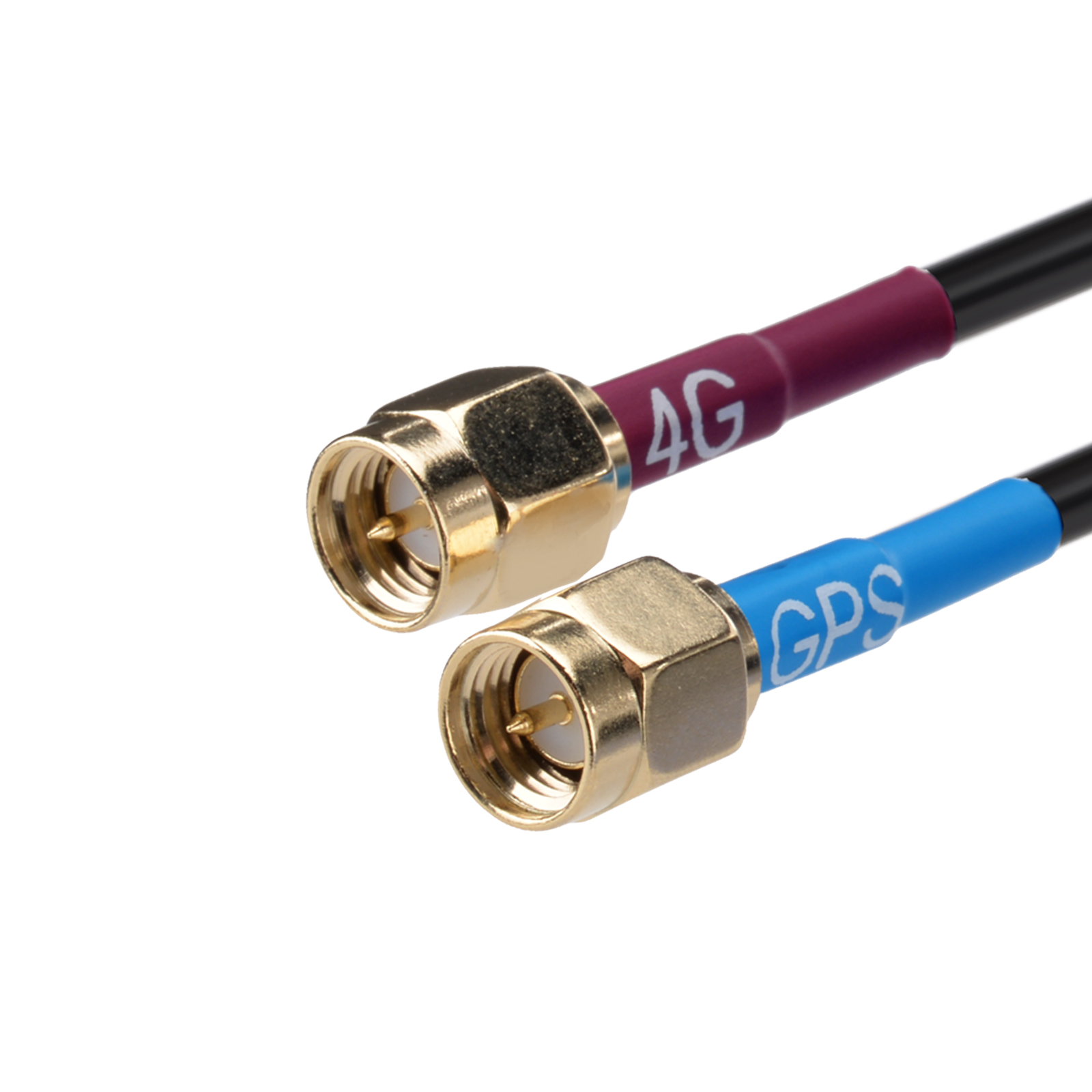

Connector: Dual SMA Male Connector
Material: ABS
Mounting Method: Adhesive Magnetic Mounting

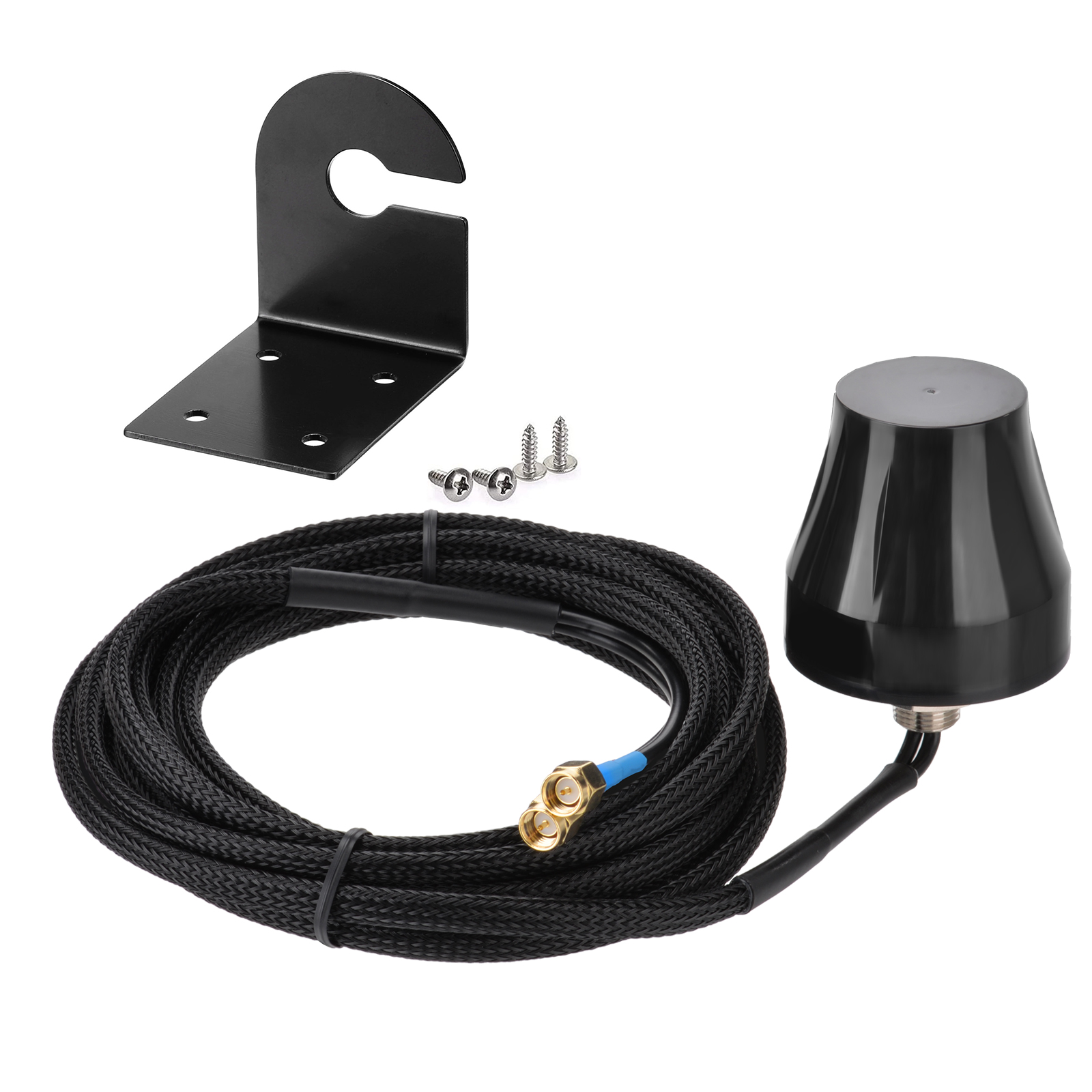

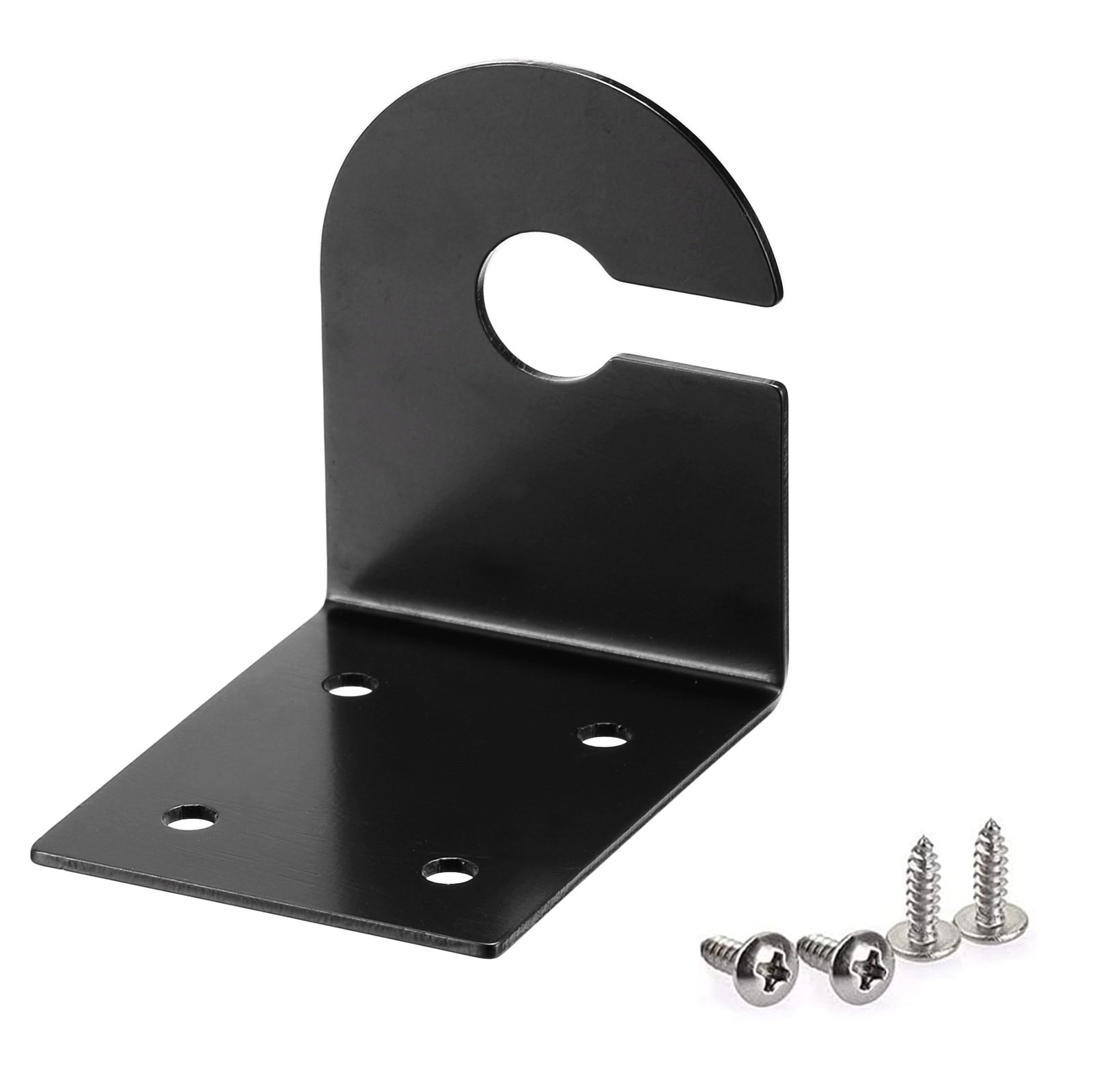

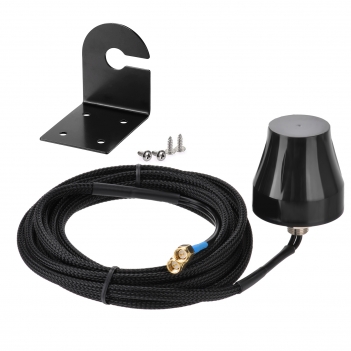

Package List: 1 x Antenna, 1 x Wall Mount Fixed Bracket, 4 x Self-tapping Screws
