HDMI TO SDI Output & 3G-SDI Ready
Converts HDMI to SDI signals (HD-SDI/3G-SDI); Supports 480i to 1080p60 resolutions with SMPTE 292M/424M compliance; Ideal for multi-display setups in broadcast and live production.
Long-Distance Signal Stability
Extends HDMI signals up to (SD-SDI), (HD-SDI),(3G-SDI); Built-in ESD protection ensures interference-free transmission in industrial environments.
Compact Industrial-Grade Design
Rugged metal housing withstands 0°C-40°C operating temperatures;
Low power consumption (5W max) compatible with portable power banks.
Plug-and-Play Operation
No drivers or external software required; Maintains original audio embedding during conversion; Compatible with DSLRs, switchers, and SDI routers.
Professional Deployment Ready
Package includes converter, USB power cable, and manual; Supports HDMI 2.0 sources and legacy SDI monitors; IP40-rated connectors for reliable field use.
Introduction
The HDMI to SDI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
Features
Operation at 2.970Gbit/s, 1.485Gbit/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Connect with other units to extend your signal over long distances
Specificaitons
Input Port : 1x HDMI
Output Port :1 x BNC (HD-SDI/3G-SDI)
SDI Transmission Rates: 2.970 Gbit/s
In/Output Resolution : 720p\1080i\1080p
Power Supply: DC 5V
ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
Dimension: 95mm x43mm x 25mm
Weight: 218g
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity : 20 ~ 90% RH (Non-condensing)
Power Consumption (Max): 5W

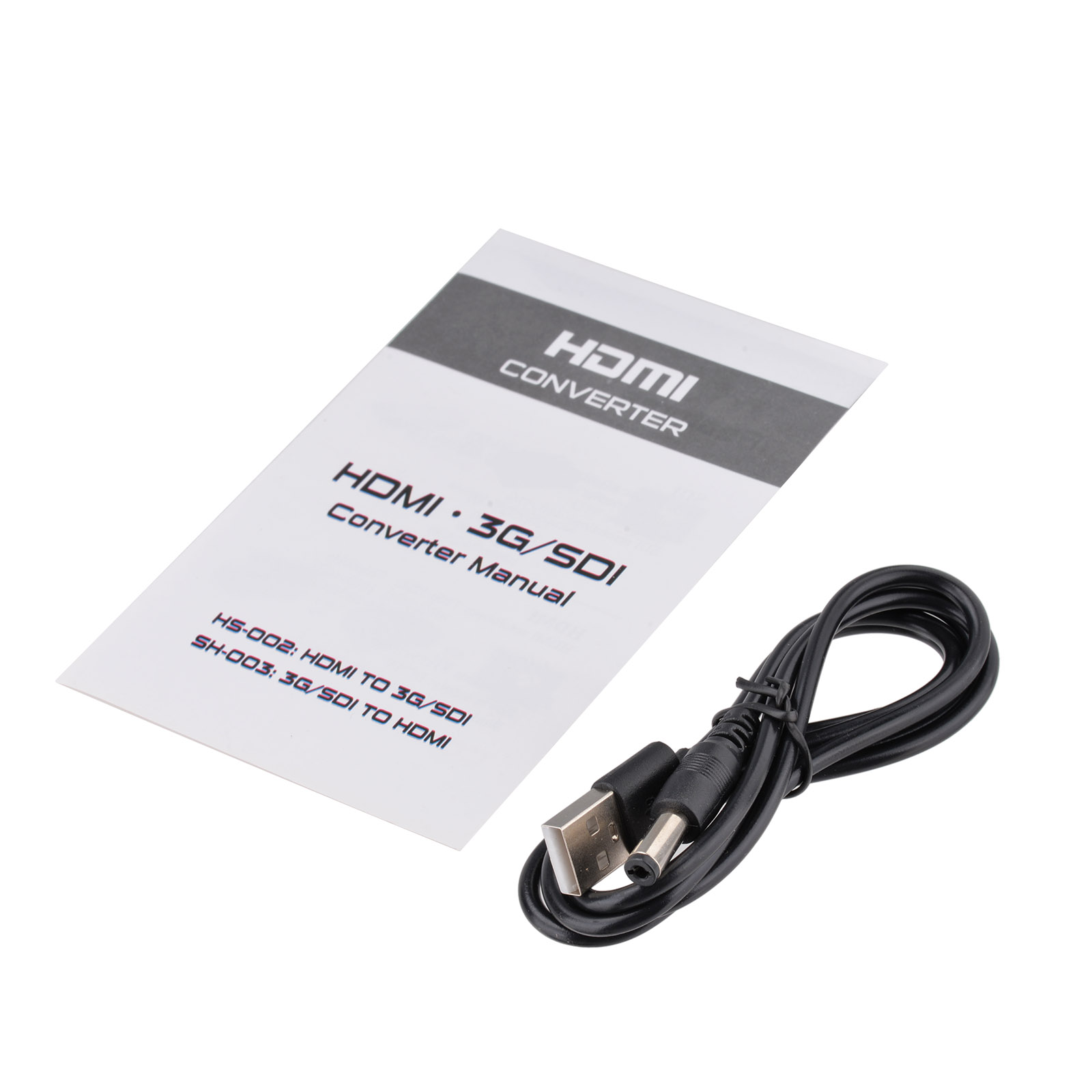

Package
HDMI to SDI Converter---------------------------1PCS
USB DC Power Supply Adaptor------------------------1PCS
Operation Manual--------------------------------------1PCS
