Professional-Grade Signal Conversion
Converts HD-SDI/3G-SDI signals to HDMI with zero latency; Supports resolutions up to 1080p60 and SMPTE 259M/292M/424M/425M standards; Ideal for broadcast studios, live events, and AV installations.
Long-Distance Signal Integrity
Built-in signal amplification extends transmission range; Operates at 2.97Gbps for lossless 3G-SDI conversion; ESD protection ensures stable performance in demanding environments.
Compact & Durable Design
Ultra-portable metal housing ; Wide operating temperature ; Low power consumption (5W max) compatible with portable power banks.
Plug-and-Play Simplicity
No drivers or software required; USB-powered (5V DC) with included adapter; HDMI loop-through supports simultaneous monitoring and recording.
Multi-System Compatibility
Works seamlessly with professional cameras, switchers, and HDMI displays; Package includes converter, USB power supply, and manual for immediate setup.
Introduction

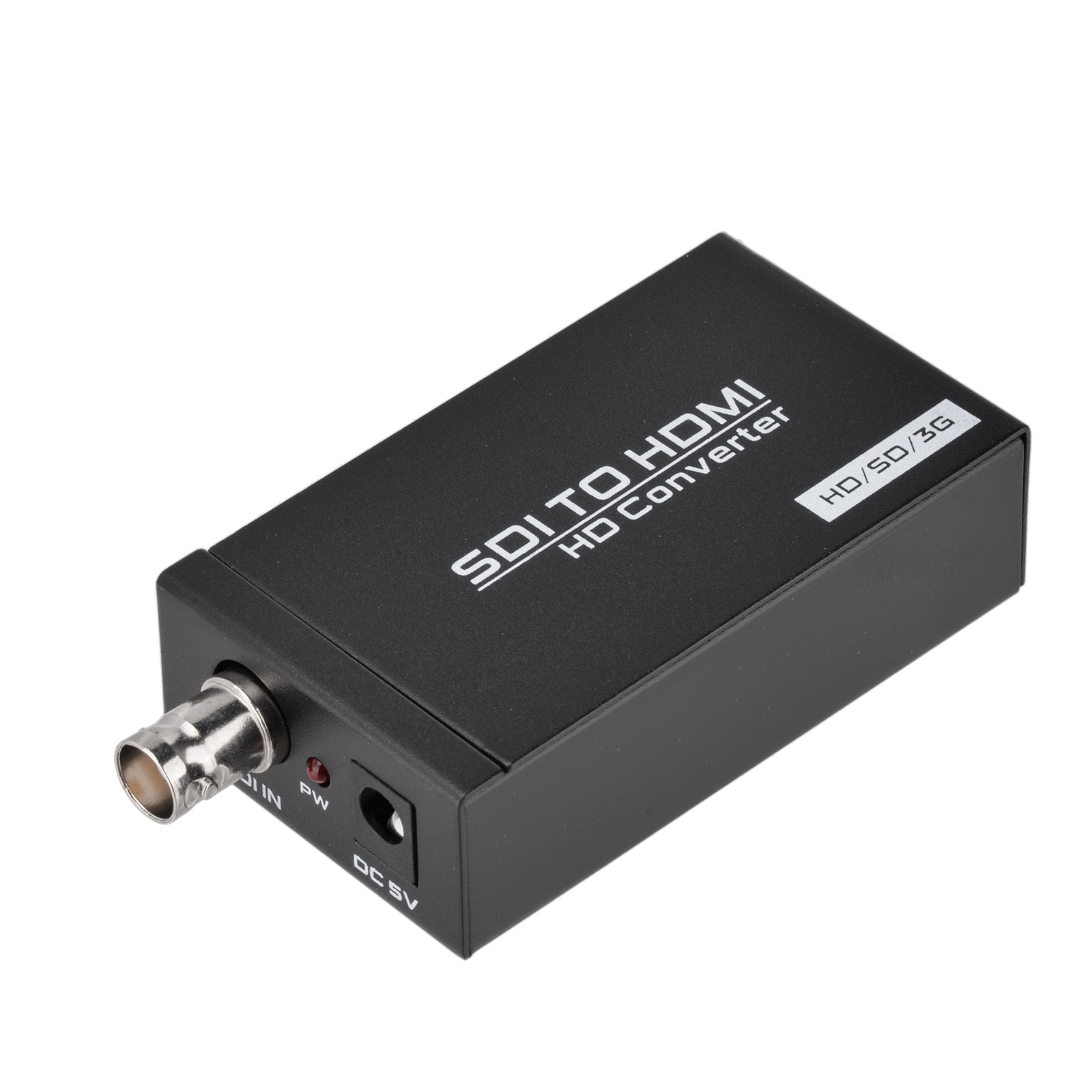

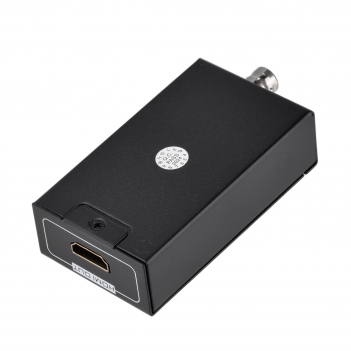

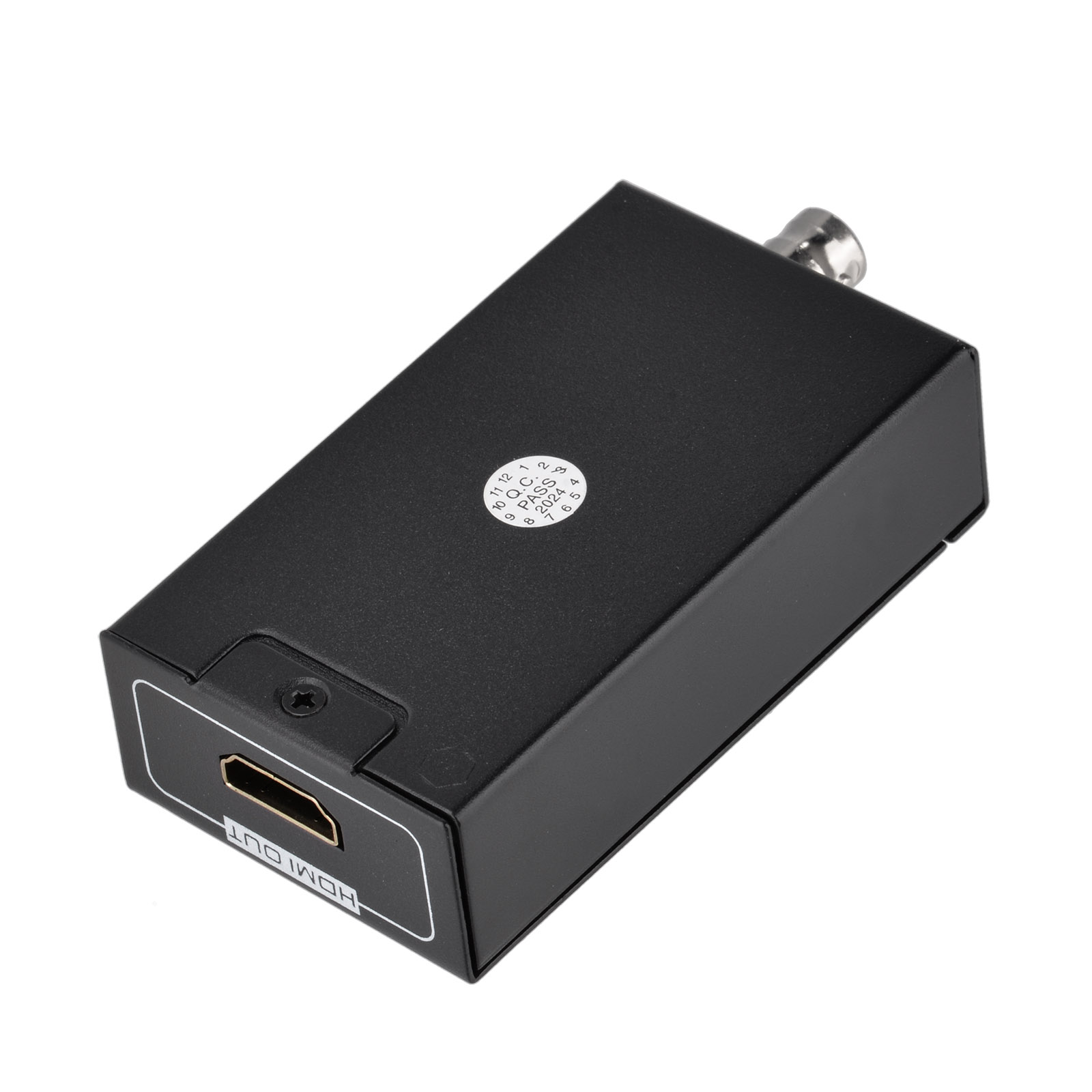

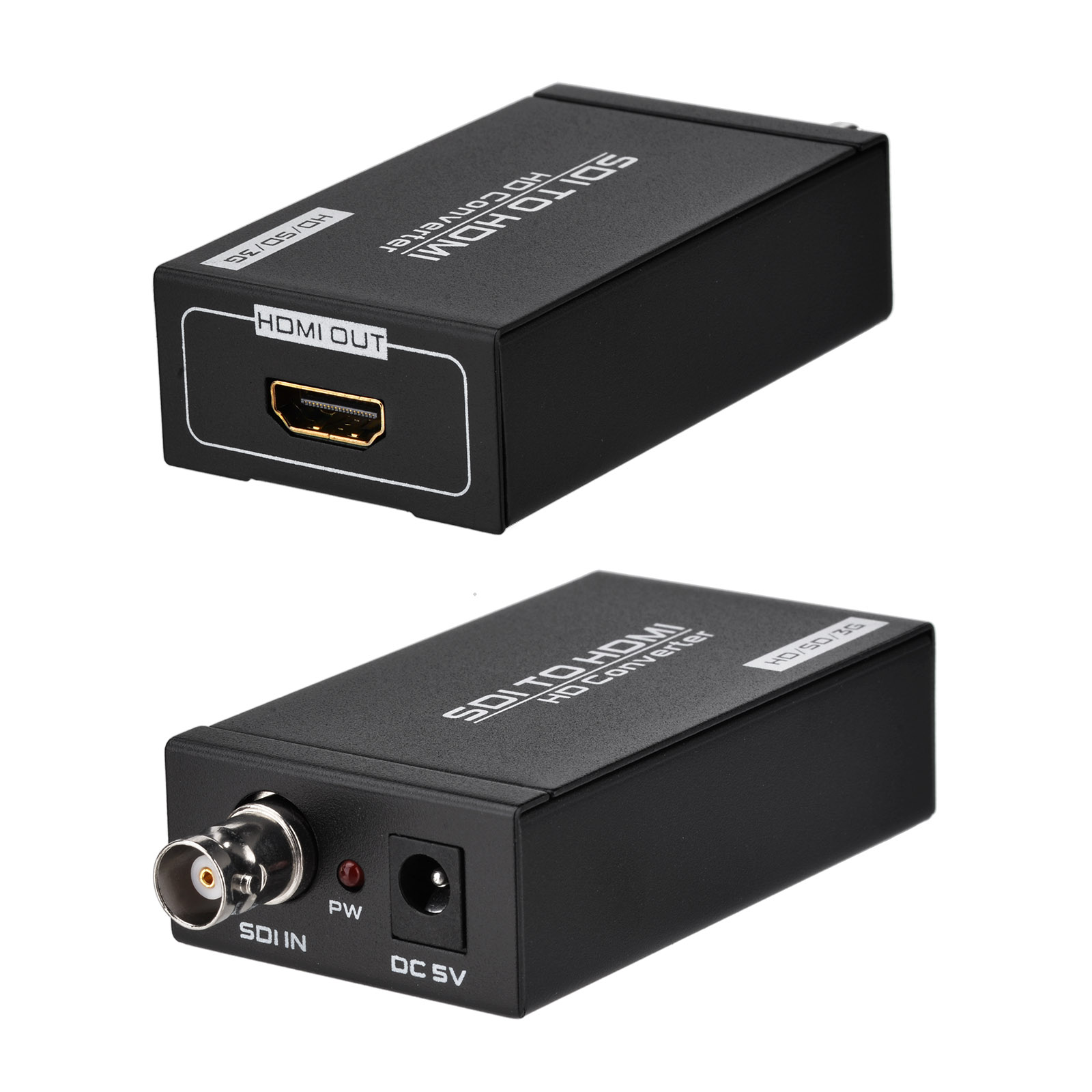

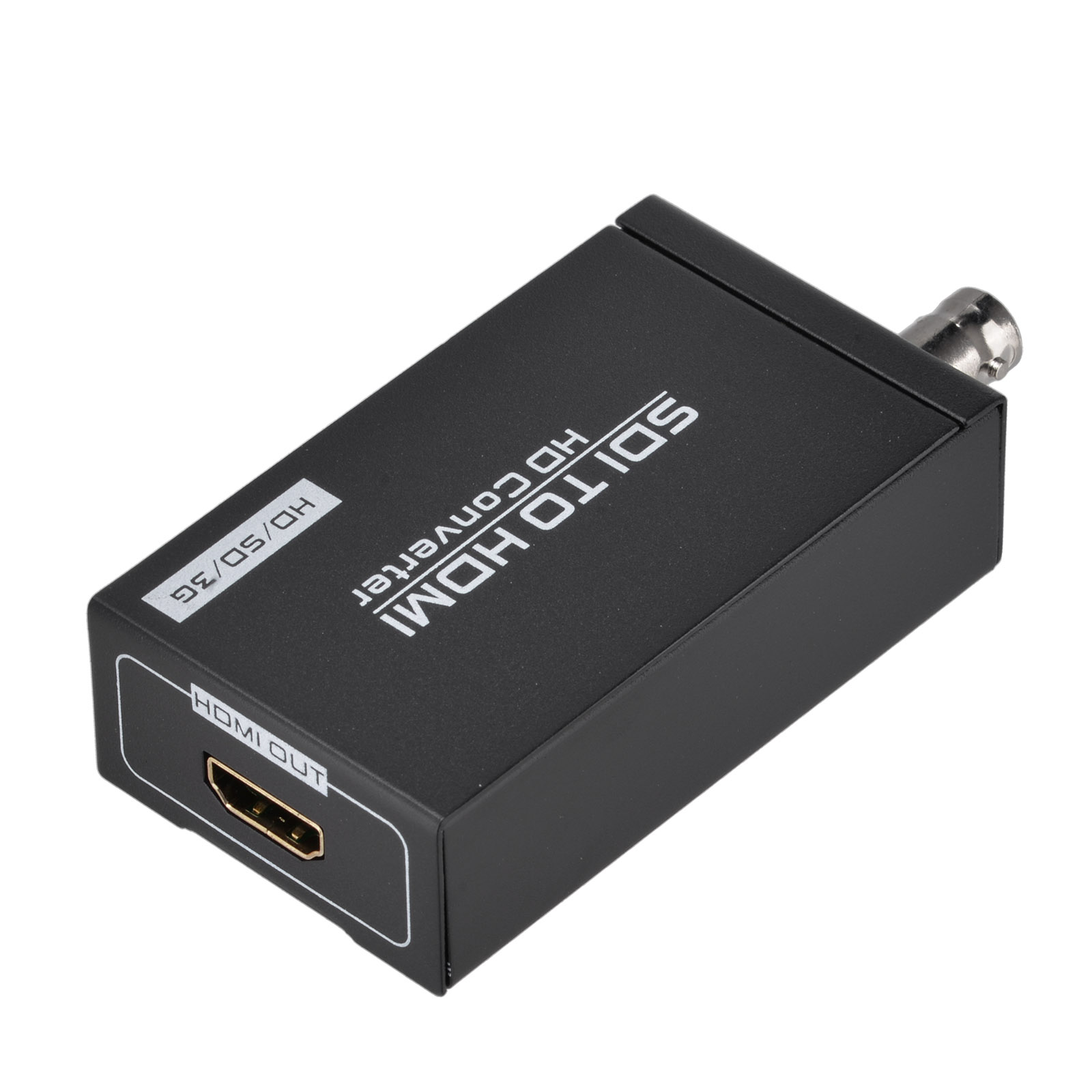

The SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
Features
Operation at 2.970Gbit/s, 1.485Gbit/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Connect with other units to extend your signal over long distances
Specificaitons
Input Port : 1 x BNC (HD-SDI/3G-SDI)
Output Port : 1x HDMI
SDI Transmission Rates: 2.970 Gbit/s
In/Output Resolution : 720p\1080i\1080p
Power Supply: DC 5V
ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
Dimension: 95mm x43mm x 25mm
Weight: 218g
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity : 20 ~ 90% RH (Non-condensing)
Power Consumption (Max): 5W

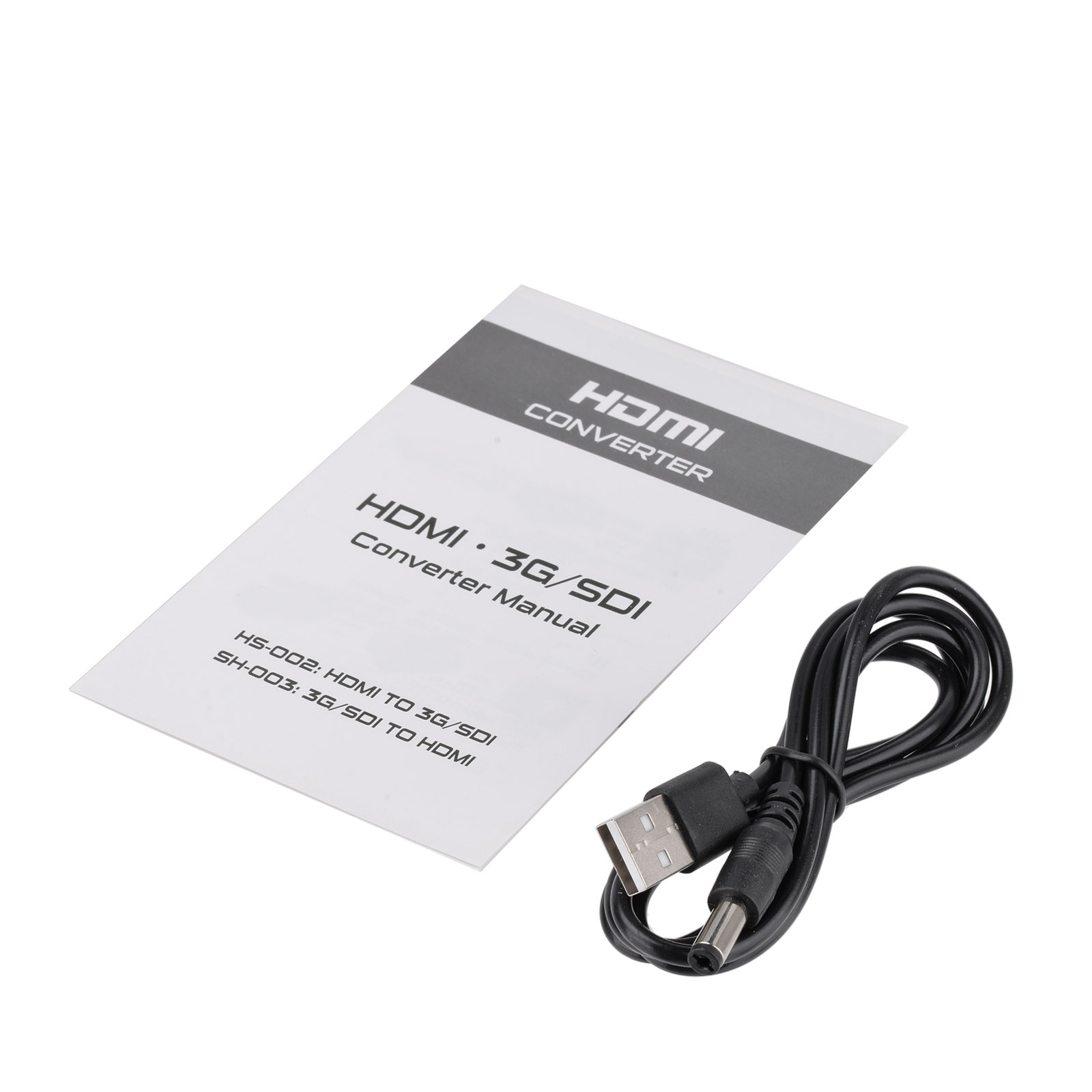

Package
SDI to HDMI Converter---------------------------1PCS
USB DC Power Supply Adaptor------------------------1PCS
Operation Manual--------------------------------------1PCS
