Shark Fin Antenna with FM/AM/DAB + 9-16V Wide Voltage, IP65 Waterproof - High Gain for Car/Truck/RV (Black)

FM/AM/DAB Radio Support

Covers FM (87.5-108MHz), AM (522-1710KHz), and DAB (1452-1492MHz/163-240MHz); Ideal for digital radio reception in urban and remote areas.

High Signal Clarity & Stability

FM gain 17-23±2dB, AM gain 0-5±2dB, and DAB gain up to 21±2dB; ≤3.0 VSWR ensures minimal signal loss for crisp audio quality.

Wide Voltage & Robust Design

Operates on 9-16V DC (40±10mA current); IP65-rated housing withstands extreme temperatures (-40°C to +85°C) and 95% humidity for automotive use.

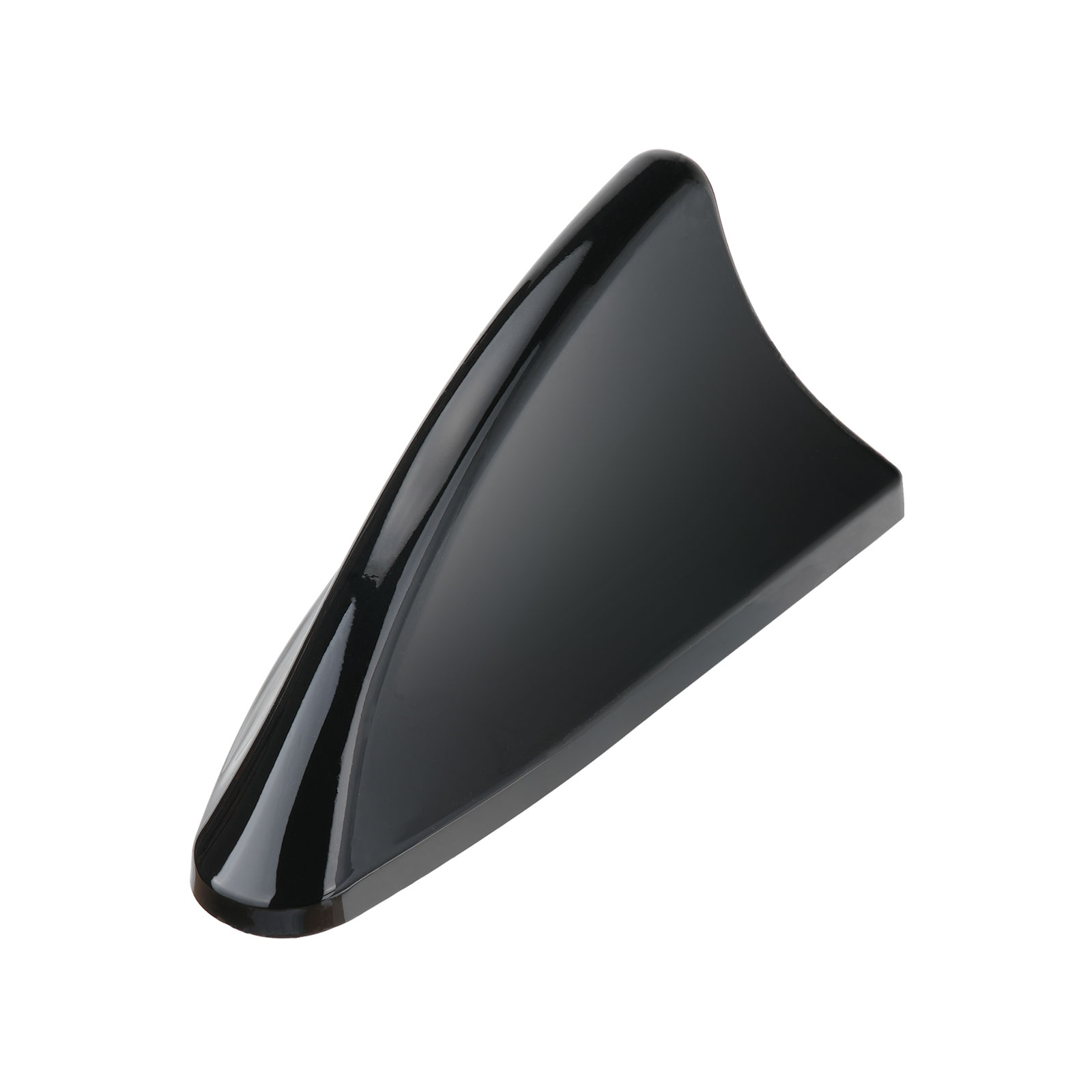

Aerodynamic Shark Fin Integration

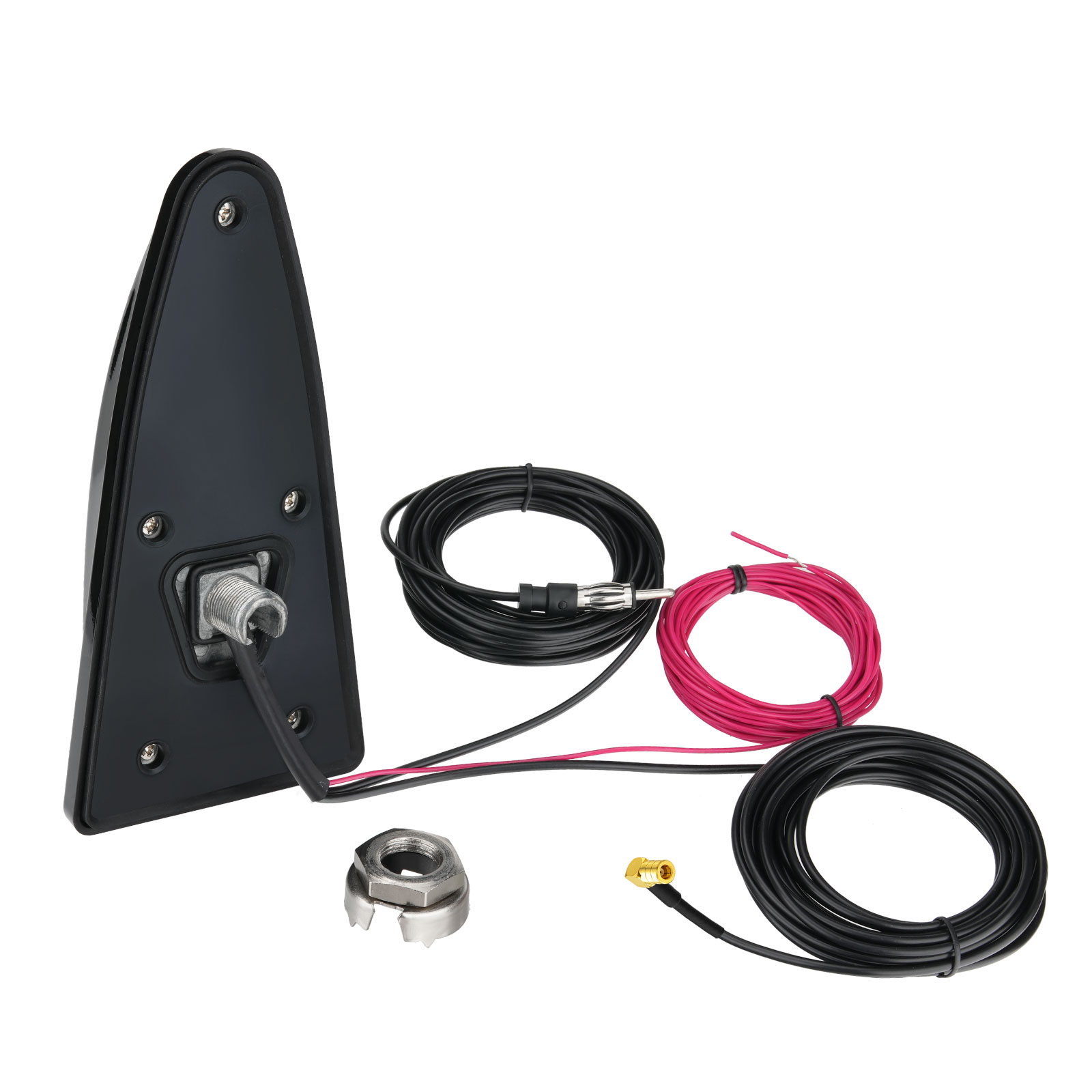

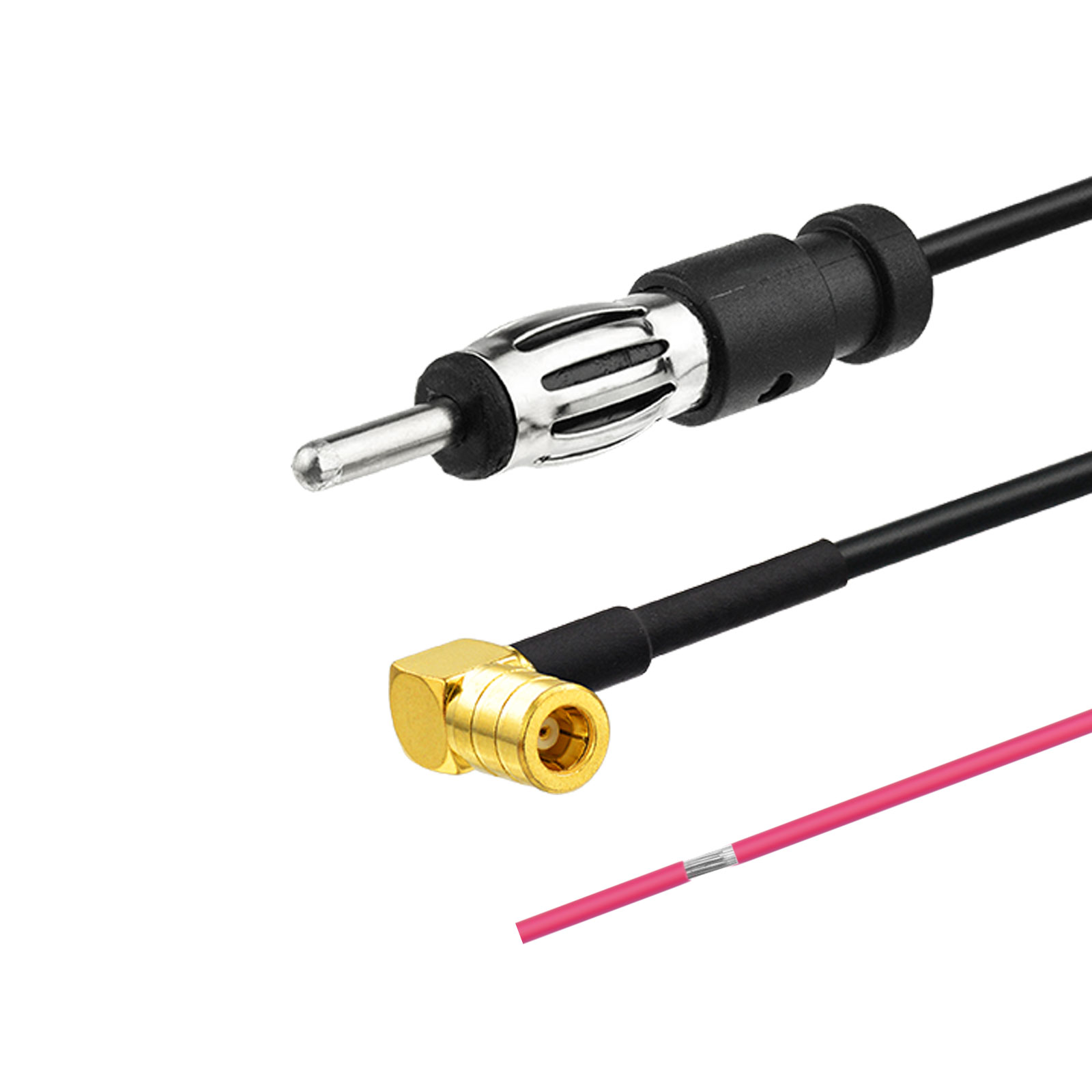

Sleek design reduces wind noise; Easy installation with SMB connector and vibration-resistant mounting for cars, trucks, or RVs.

Product Description

Multi-Functional Shark Fin Antenna for Enhanced Radio Reception

The A-FM/AM+DAB antenna combines FM/AM analog and DAB digital radio capabilities, designed for seamless integration into vehicles, RVs, and commercial fleets.

FM/AM Radio Module:

Frequency Range:

FM: 87.5-108MHz

AM: 522-1710KHz

Gain:

FM: 17-23±2dB

AM: 0-5±2dB

VSWR: ≤3.0

Impedance: 50±5Ω

DAB Digital Radio Module:

Frequency Range:

DAB-III: 163-240MHz

DAB-L: 1452-1492MHz

Gain:

DAB-III: 17-21±2dB

DAB-L: 9±2dB

VSWR: ≤3.0

Impedance: 50±5Ω

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Applications:

Automotive FM/AM/DAB radio systems

Commercial fleet communication

RV and truck entertainment setups

Off-road and marine environments
