Shark Fin Antenna with FM/AM, IP65 Waterproof - High Gain for Car/Truck/RV (Black)

FM/AM/Radio Support

Covers FM (87.5-108MHz) and AM (522-1710KHz) frequencies; Ensures clear signal reception in urban, rural, and remote areas.

High Signal Clarity & Stability

FM gain of 17-23±2dB and AM gain of 0-5±2dB; ≤3.0 VSWR minimizes signal loss for crisp audio quality.

Industrial-Grade Durability

IP65-rated housing withstands extreme temperatures (-40°C to +85°C) and 95% humidity; Resists vibration and corrosion for long-term automotive use.

Wide Voltage Compatibility

Operates on 9-16V DC with low current consumption (30±10mA); Compatible with most vehicle electrical systems.

Easy Installation & Aerodynamic Design

Sleek shark fin shape reduces wind noise; Includes Ø16±0.1mm cable (5000±100mm length) for flexible mounting on cars, trucks, or RVs.

Product Description

High-Performance Shark Fin Antenna for Automotive Radio Reception

The FM/AM antennadelivers reliable FM/AM radio reception, designed for seamless integration into vehicles, RVs, and commercial fleets.

FM/AM Radio Module:

Frequency Range:

FM: 87.5-108MHz

AM: 522-1710KHz

Gain:FM: 17-23±2dB

AM: 0-5±2dB

VSWR: ≤3.0

Impedance: 50±5Ω

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

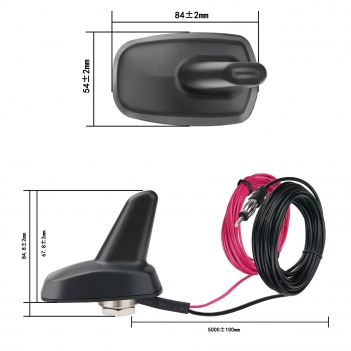

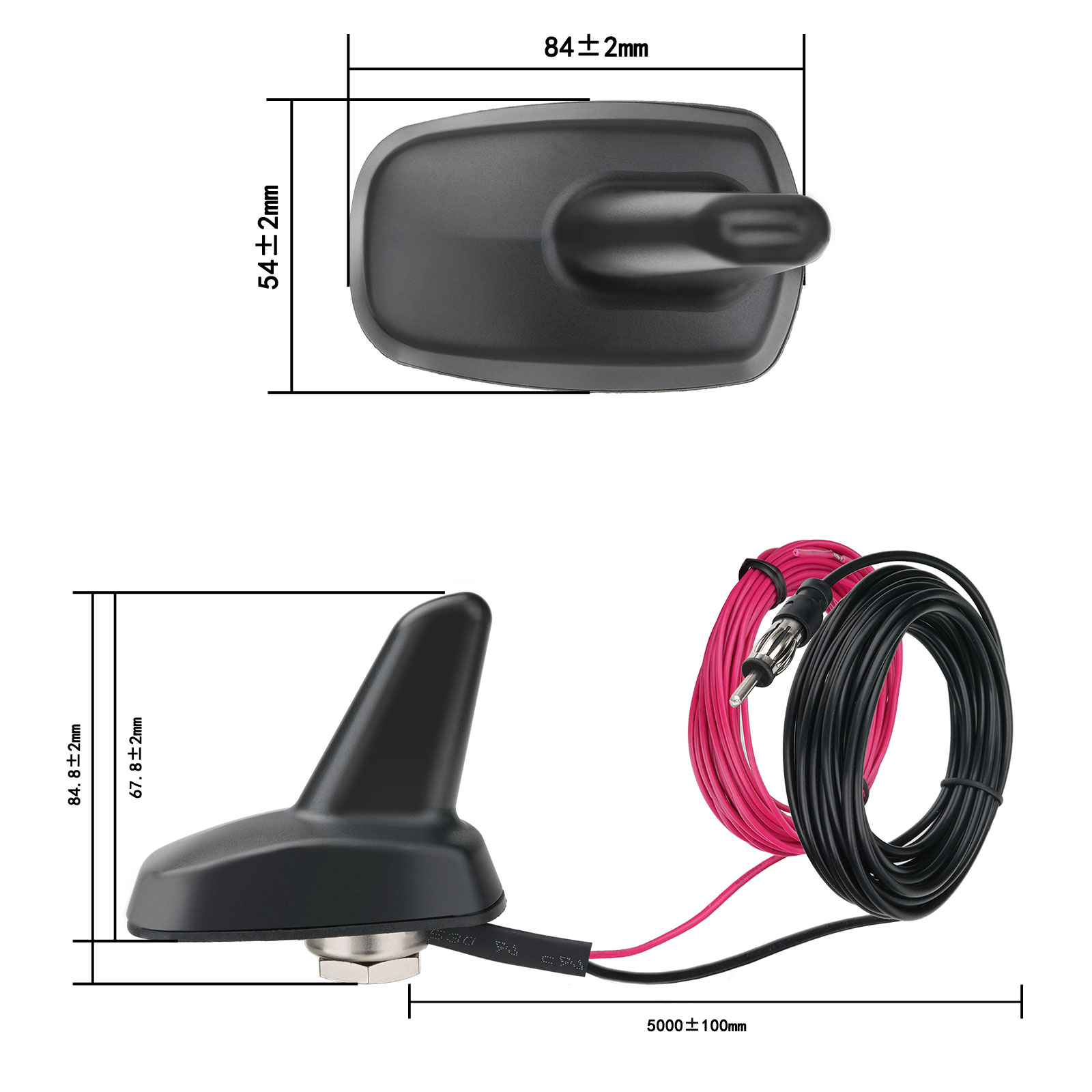

Mechanical Specifications:

Cable: Ø16±0.1mm, 5000±100mm length

Mounting: Aerodynamic shark fin design

Applications:

Automotive FM/AM radio systems

Commercial fleet communication

RV and truck entertainment setups

Off-road and marine environments
