Product Description:

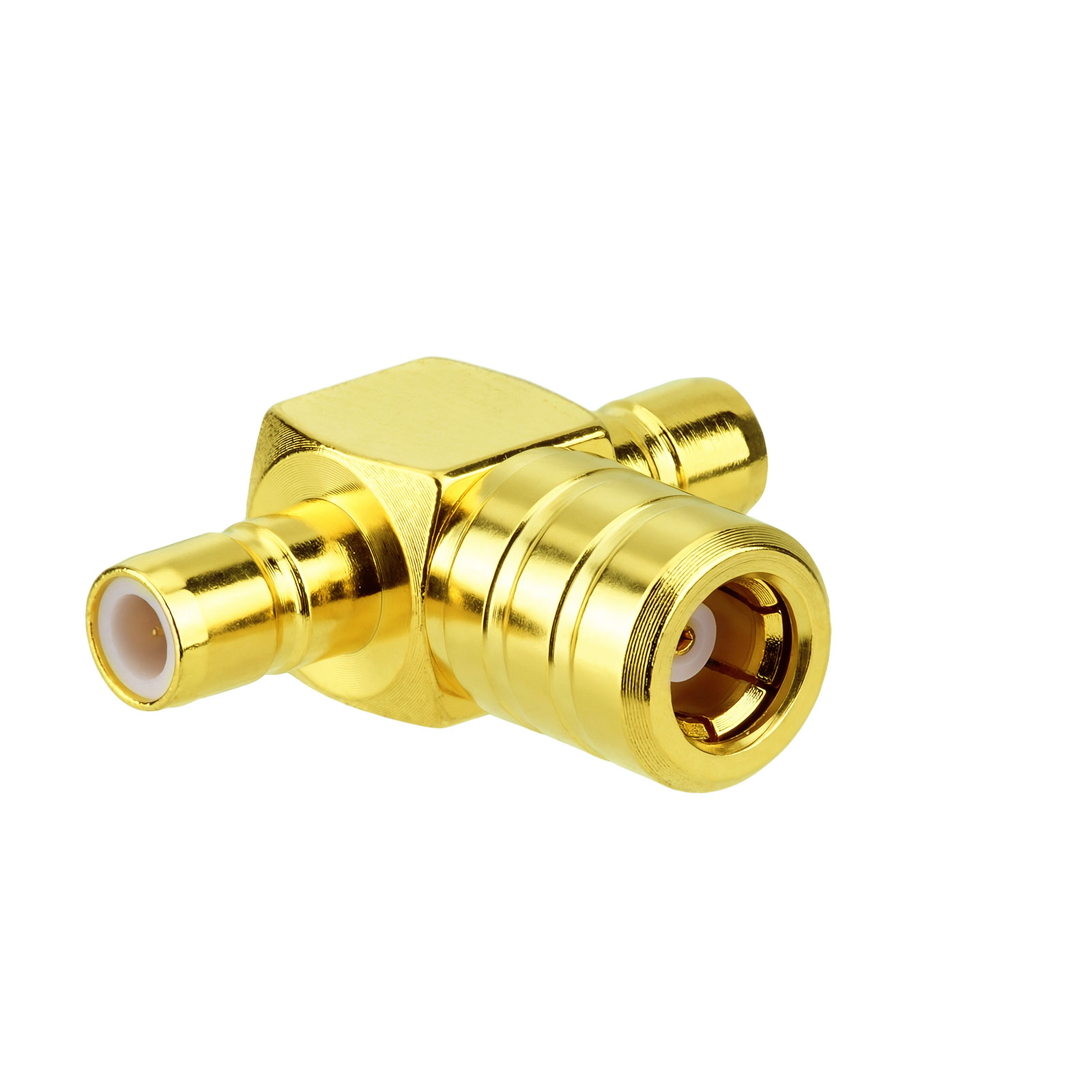

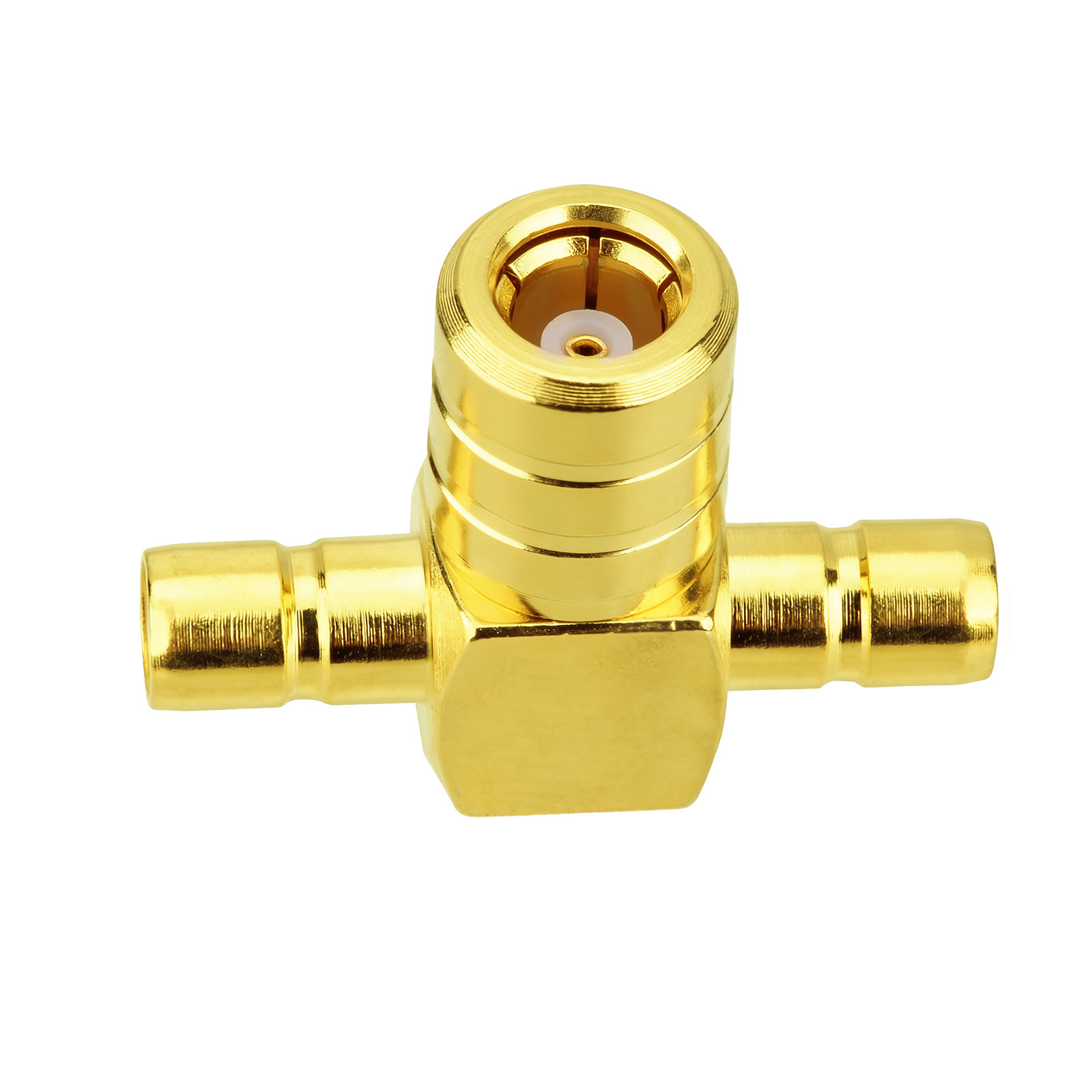

This triple-tee RF adapter splits, combines, or taps SMB coaxial lines through a compact T-shaped body. With SMB female (jack) and SMB male (plug) interfaces, the three ports let you distribute one signal across two lines, merge two lines into one, or bridge two assemblies with a straight-through center path — a single part doing the job of multiple couplers.

Snap-On SMB Convenience

SMB connectors use a push-on snap coupling instead of threads — connections take seconds and require no torque wrench, making these adapters especially practical for lab benches, production test fixtures and prototype builds where layouts change often. The gold-plated contacts and PTFE insulation keep 50Ω impedance stable and insertion loss low through thousands of mating cycles.

Applications

Splitting one RF source to two receivers or modules

Combining two signal paths into a single line

RF test benches and production test fixtures

Prototyping and quick signal-path reconfiguration

GPS, WiFi, cellular module and debug harness assemblies

Signal tap points for measurement equipment

Technical Specifications

Product Type: SMB triple-tee RF coaxial adapter / 3-way splitter

Port Configuration: 1 × SMB Female (Jack), 2 × SMB Male (Plug) — 3-way T junction

Interface Standard: SMB, push-on snap coupling, standard polarity

Impedance: 50Ω

Body Material: Brass

Contact Plating: Gold-Plated

Insulation: PTFE

Color: Gold

Application: RF signal split / combine / tap for SMB-based assemblies and test setups

Package Contents

1× SMB Triple-T RF Coaxial Adapters (3-Way, Female to Male)
