Product Overview

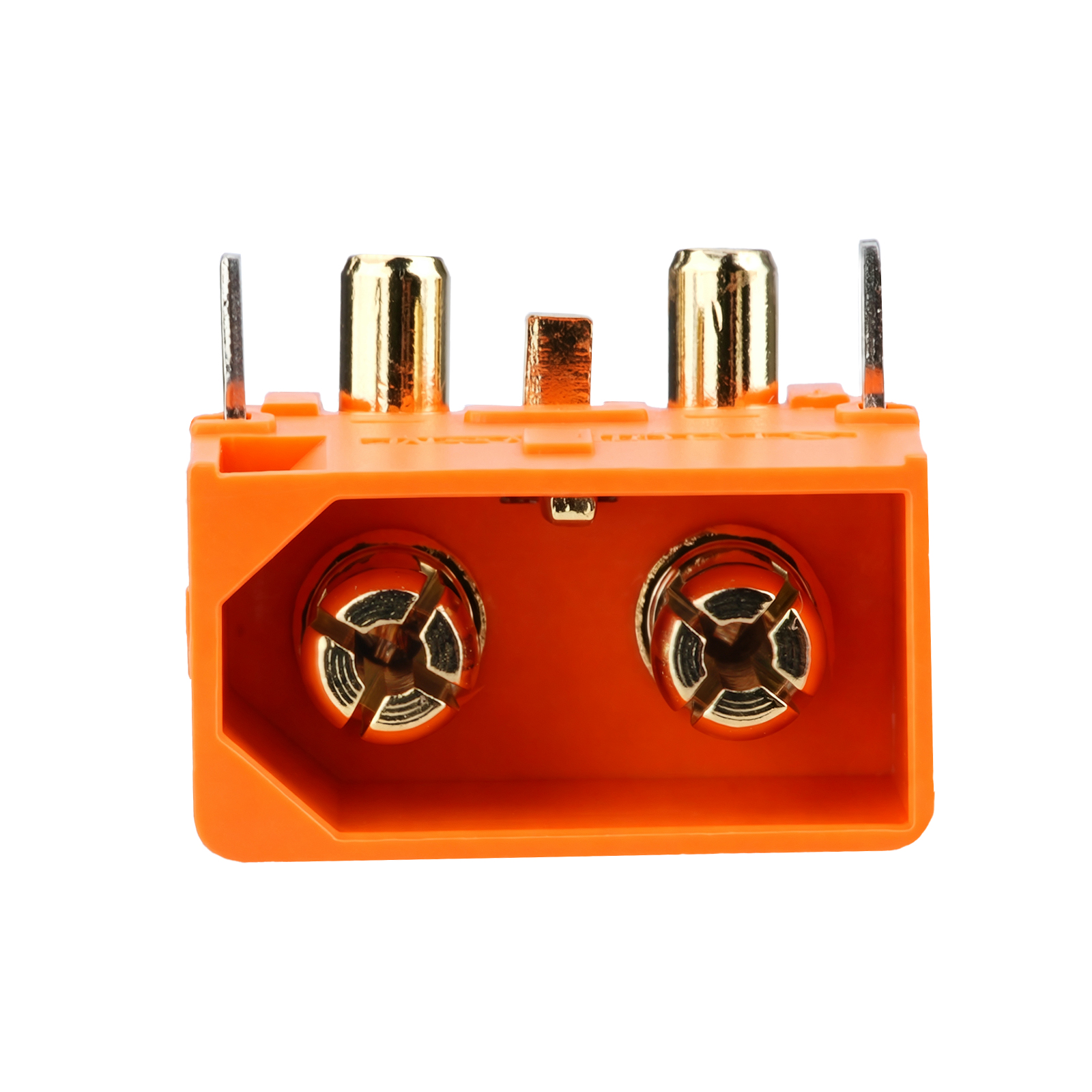

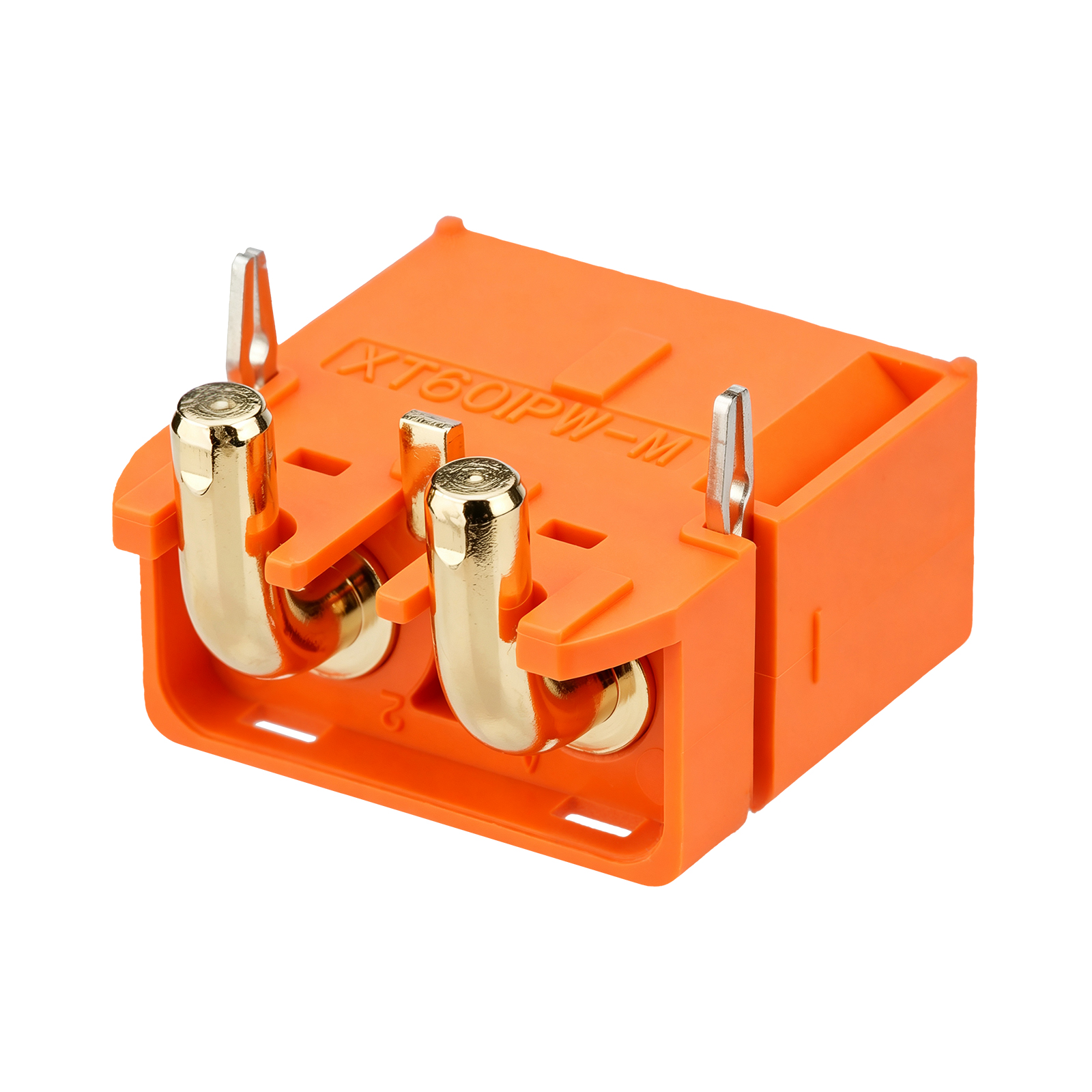

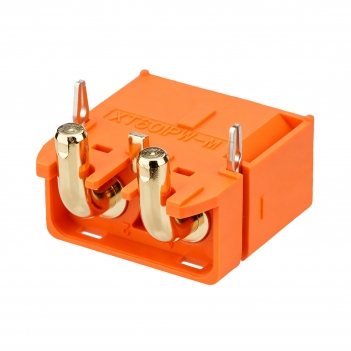

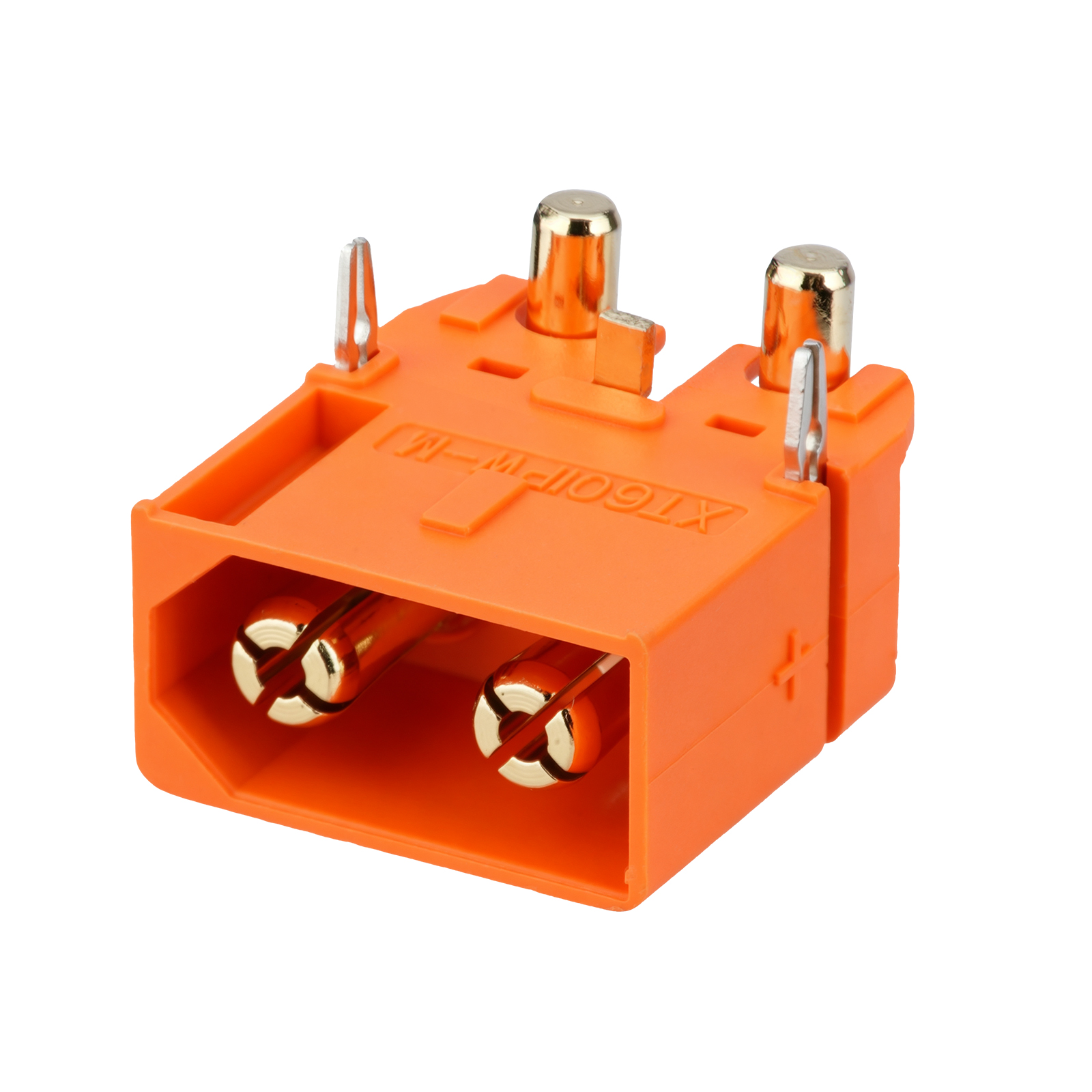

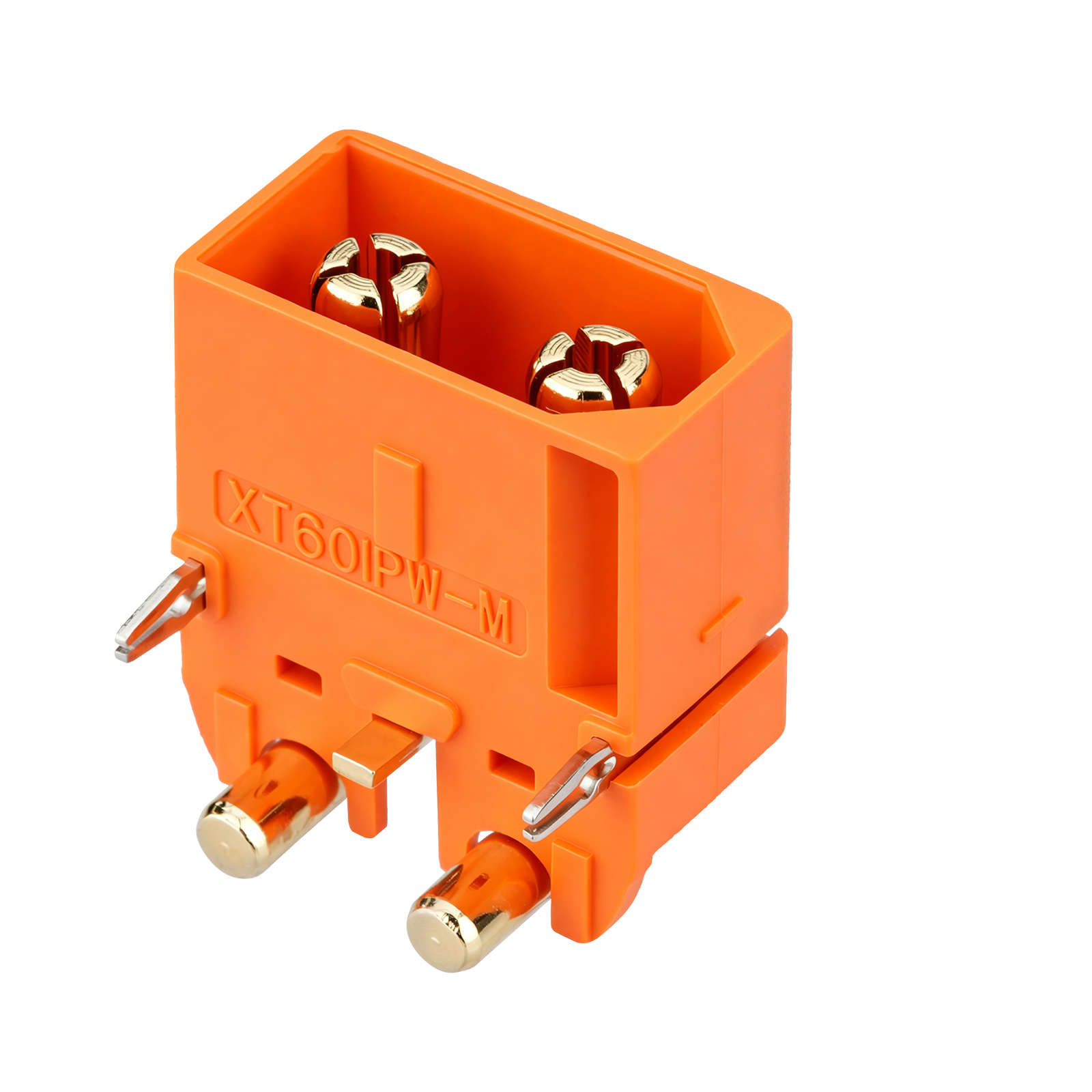

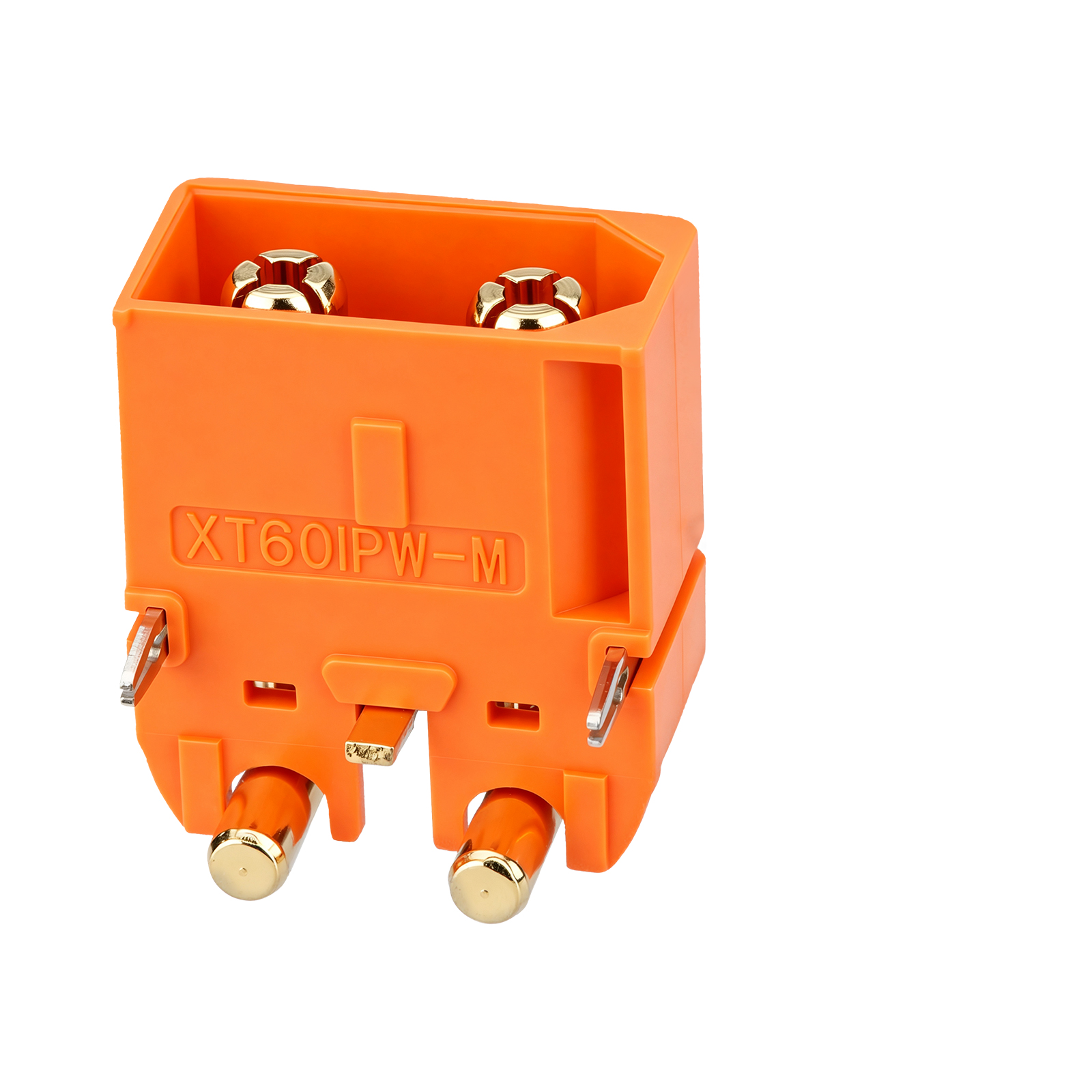

This XT60i horizontal PCB-mount male connector is designed for soldering directly onto circuit boards, power distribution boards and DIY adapter plates. Its 2-pin right-angle through-hole legs sit flush along the PCB, keeping the overall build height low — a practical choice for compact FPV drone stacks, power boards and custom wiring projects where vertical XT60i connectors are too tall.

The connector is rated for 35A maximum current (with Δt ≤ 85K) and up to 80V DC, with gold-plated brass contacts (contact resistance ≤ 1.2mΩ) and a flame-retardant UL94 V-0 PA housing. Insulation resistance is ≥ 2000MΩ, operating temperature spans -20°C to +120°C, and the connector is 48-hour salt-spray tested for corrosion resistance.

Technical Specifications

Product Type: XT60i Horizontal PCB Mount Male Connector

Series: XT60i (2-Pin, Male)

Mounting Style: Horizontal / Side-Entry Through-Hole

Rated Current: 35A Max (Δ≤ 85K)

Rated Voltage: ≤ 80V DC

Contact Resistance: ≤ 1.2mΩ

Insulation Resistance: ≥ 2000MΩ

Contact Material: Brass, Gold-Plated

Housing Material: PA (Nylon), Orange

Flame Retardancy: UL94 V-0

Protection Rating: IP40

Salt Spray Test: 48H

Operating Temperature: -20°C ~ +120°C

Mating Cycles: 100

Application: RC drone, LiPo battery, ESC, power distribution board

Product Features

XT60i male with horizontal 2-pin through-hole legs for PCB soldering

Low-profile side-entry design for compact builds

35A max current rating, up to 80V DC

Gold-plated brass contacts, ≤ 1.2mΩ contact resistance

Flame-retardant UL94 V-0 PA housing

Insulation resistance ≥ 2000MΩ

Wide temperature range: -20°C to +120°C

48-hour salt-spray tested

Rated for 100 mating cycles, IP40

10-pack for multiple projects and repairs

Mates with standard XT60i female connectors

Applications

FPV drone and quadcopter power stack builds

Power distribution board (PDB) XT60i input connectors

ESC and motor controller adapter boards

LiPo battery charging and discharging boards

DIY battery harness and adapter plate fabrication

RC car, plane and boat power systems

Bench power supply output connectors

Replacement connectors for damaged or worn XT60i mounts
